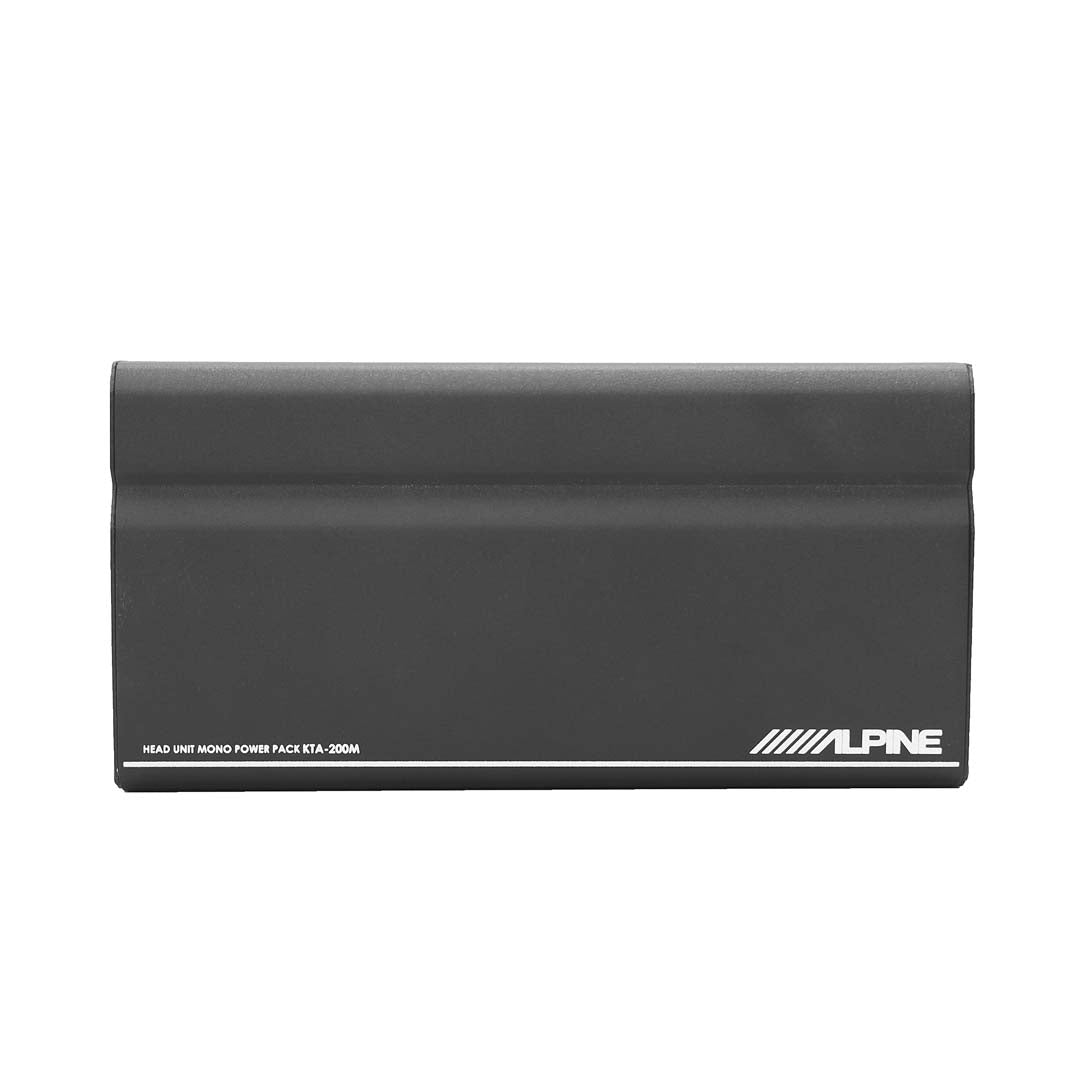

Alpine KTA-200M, PowerStack Class D Monoblock Subwoofer Amplifier
Not Available for Shipping Outside of the United States
Get Your Alpine Gear Here and Get it Installed at Your Local Authorized Alpine Dealer
Questions? We're here to help
A SIMPLE WAY TO ADD BASS
If you're craving the impact of bass in your sound system but don't have the room in your budget or vehicle for a traditional amplifier, start your journey to better sound with the compact KTA-200M. With the highest performance value on the market, this mono-power amp provides an easy upgrade path to add more bass to your sound system.
BIG SOUND IN A SMALL PACKAGE
Utilizing Alpine's exclusive Dynamic Peak Power (DPP) technology, the 200-watt KTA-200M delivers bursts of power to meet the peak demands of your music effectively rising to 400-watts and then rolling back to maintain efficiency. The result is crisp, clean music at all volumes.
Reliable Power Handling
New to the KTA-200M, a voltage adapting input circuit is included to maintain the maximum source signal level without clipping. This ensures that the KTA-200M can continue to produce powerful, clean bass even at higher volumes‚ with‚ dynamic musical passages.
PowerStack Capable

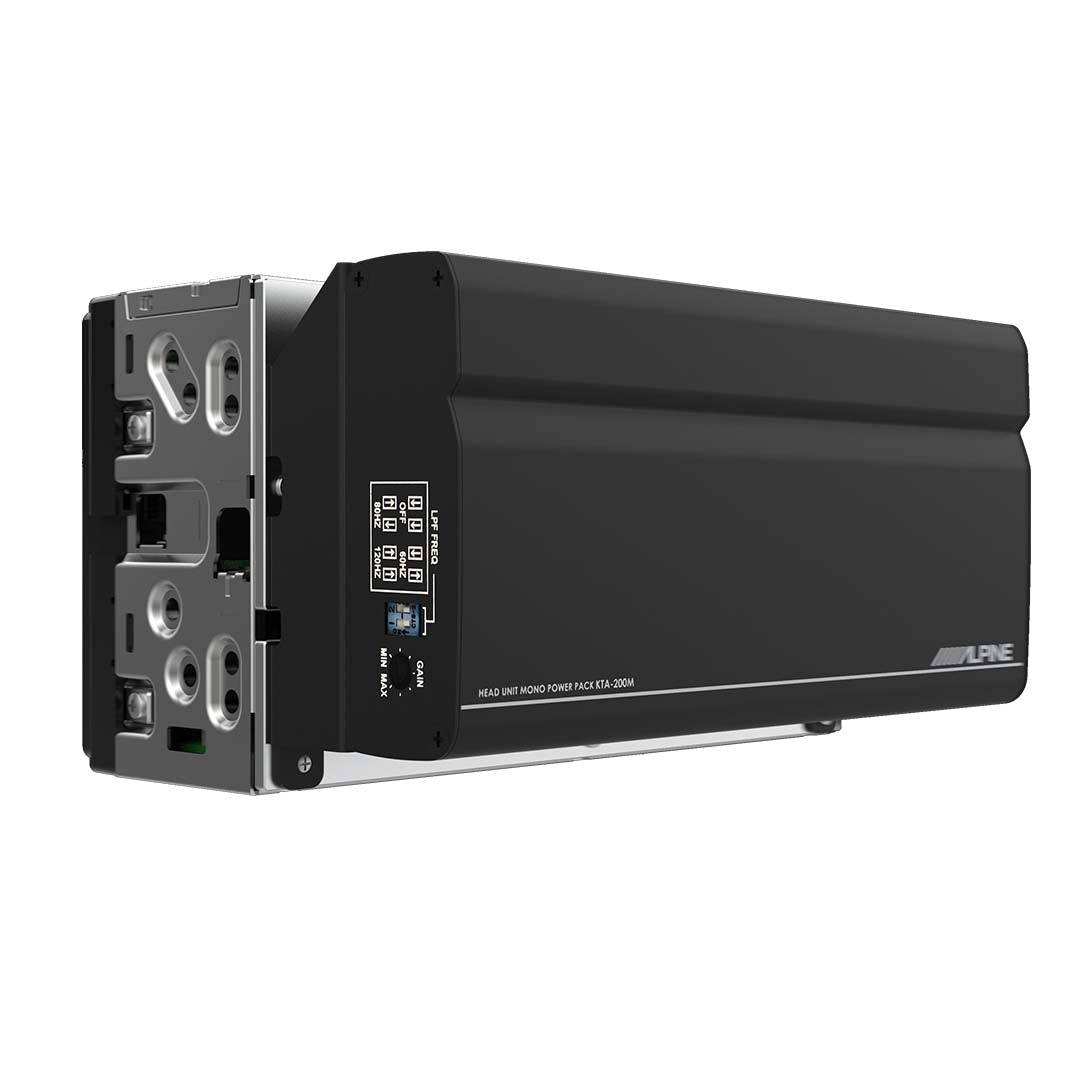

The KTA-200M utilizes Alpine's compact Power Pack design to fit in hidden areas like a glove box or behind a radio to optimize power and space in your vehicle. Mounted behind the ILX-W650 7-Inch Mech-Less Audio/Video Receiver, the KTA-200M becomes the newest PowerStack product, for an easy, hideaway bass solution that adds more power to the sound system while occupying the same depth as traditional 2-DIN radio.
Remote Bass Knob Ready
The KTA-200M has input capability to add an optional RUX-KNOB.2 Remote Bass Control Knob (sold separately). The remote bass knob controls the bass in your subwoofer by adjusting the gain on your amplifier‚ for quick bass adjustments when needed.
|
|
Number of Channels |
1 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
200 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
200 x 1 |
| RMS Power Rating - Bridged |
N/A |
| Minimum Impedance Unbridged (Ohms) |
N/A |
| Minimum Impedance Bridged (Ohms) |
N/A |
| THD at Rated RMS Power |
<1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
N/A |
| High Pass Crossover Frequency (Hz) |
N/A |

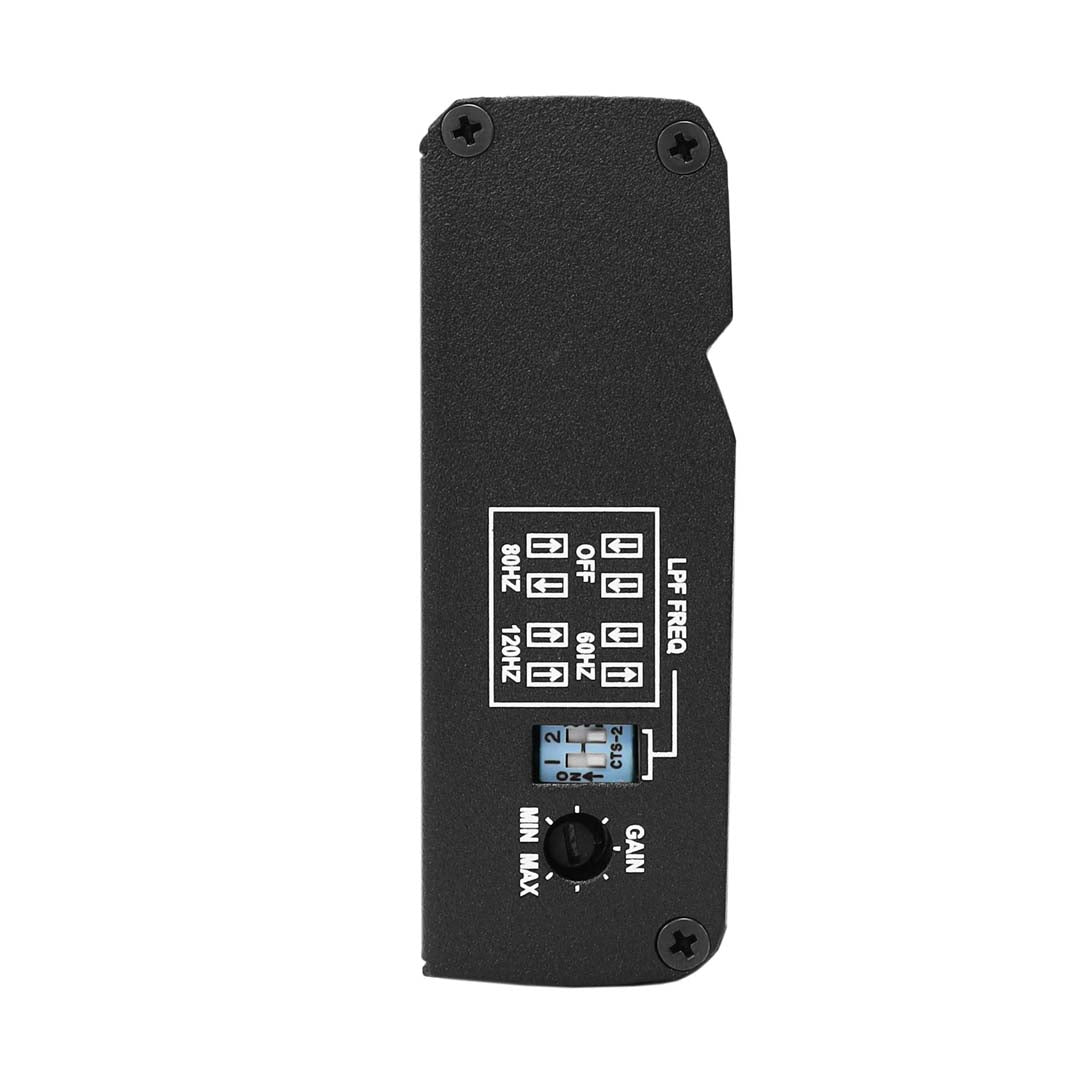

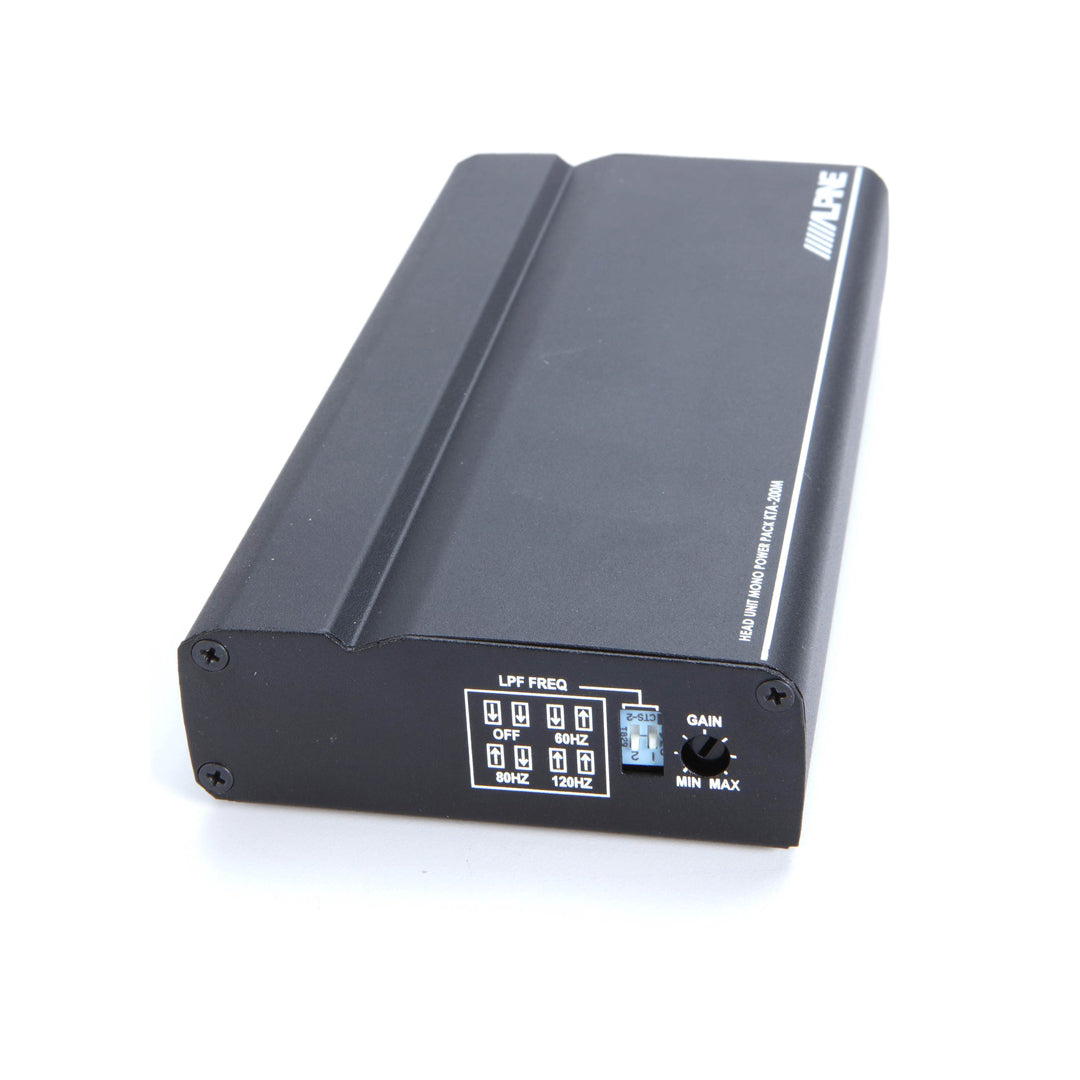

| Low Pass Crossover Frequency (Hz) |
Off, 60hz, 80hz, 120hz |
| Signal-to-Noise Ratio |
80dB |
| Bass Boost |
No |
| Bass Remote Included |
No |
| Fuse Rating | 20A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 12 Gauge |
| Warranty | 1 Year |
|
Number of Channels |
1 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
200 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
200 x 1 |
| RMS Power Rating - Bridged |
N/A |
| Minimum Impedance Unbridged (Ohms) |
N/A |
| Minimum Impedance Bridged (Ohms) |
N/A |
| THD at Rated RMS Power |
<1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
N/A |
| High Pass Crossover Frequency (Hz) |
N/A |
| Low Pass Crossover Frequency (Hz) |
Off, 60hz, 80hz, 120hz |
| Signal-to-Noise Ratio |
80dB |
| Bass Boost |
No |
| Bass Remote Included |
No |
| Fuse Rating | 20A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 12 Gauge |
| Warranty | 1 Year |
