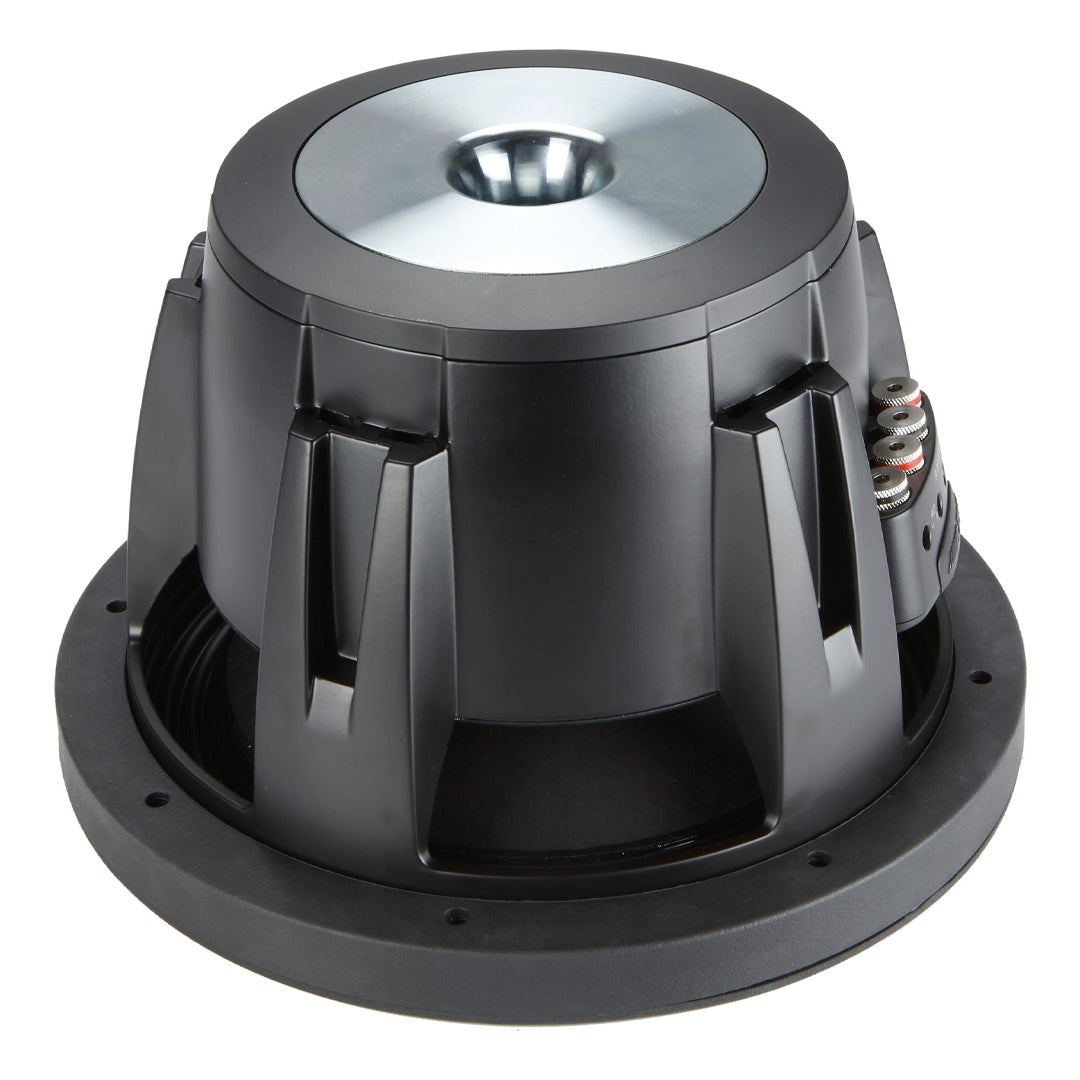

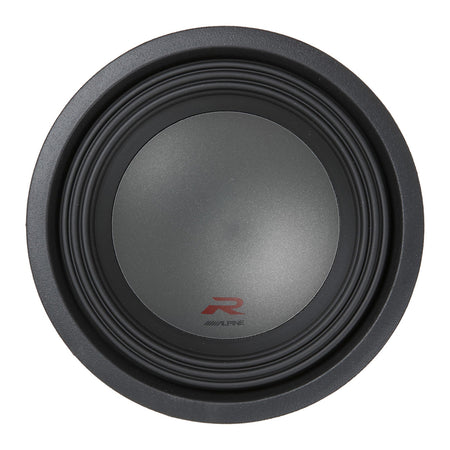

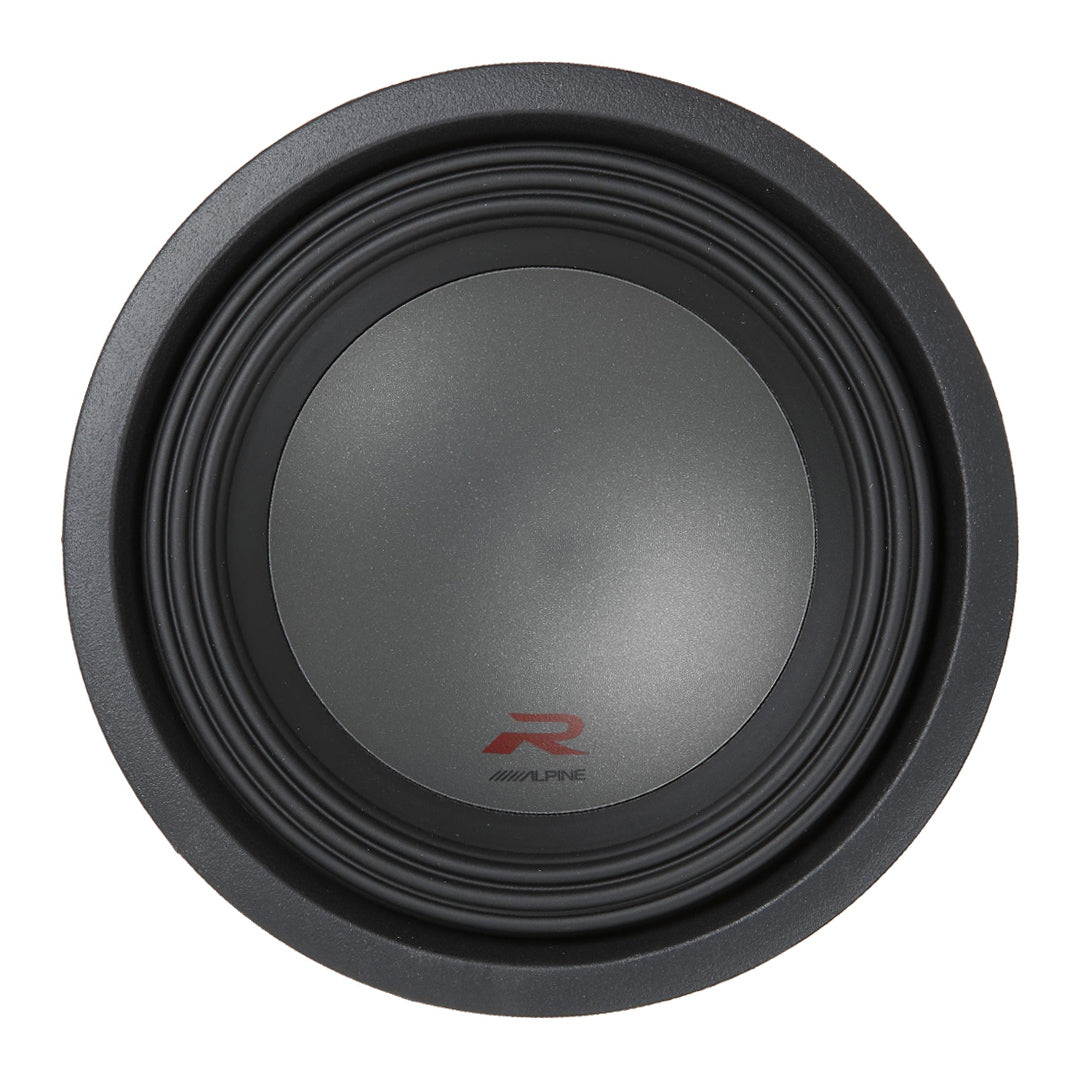

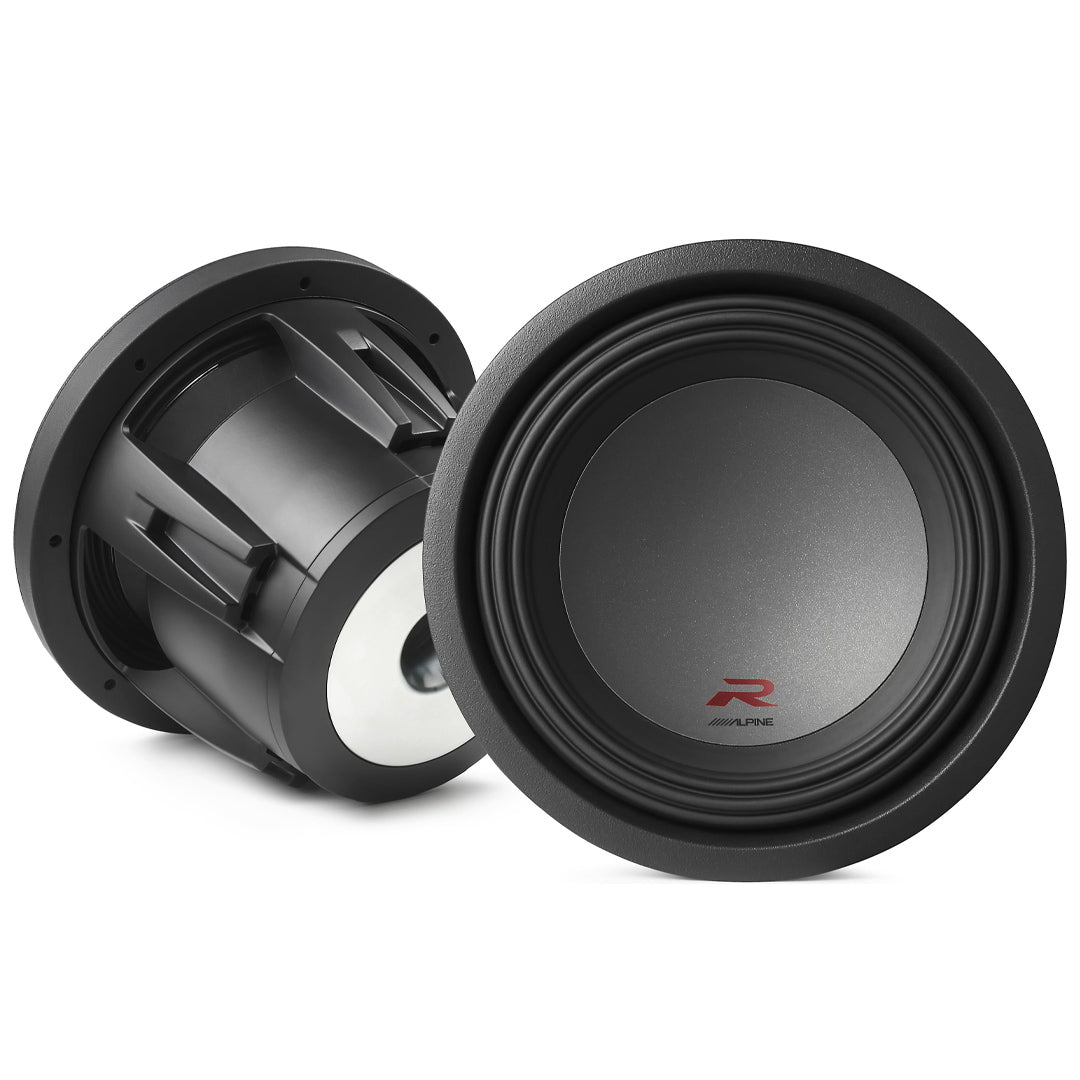

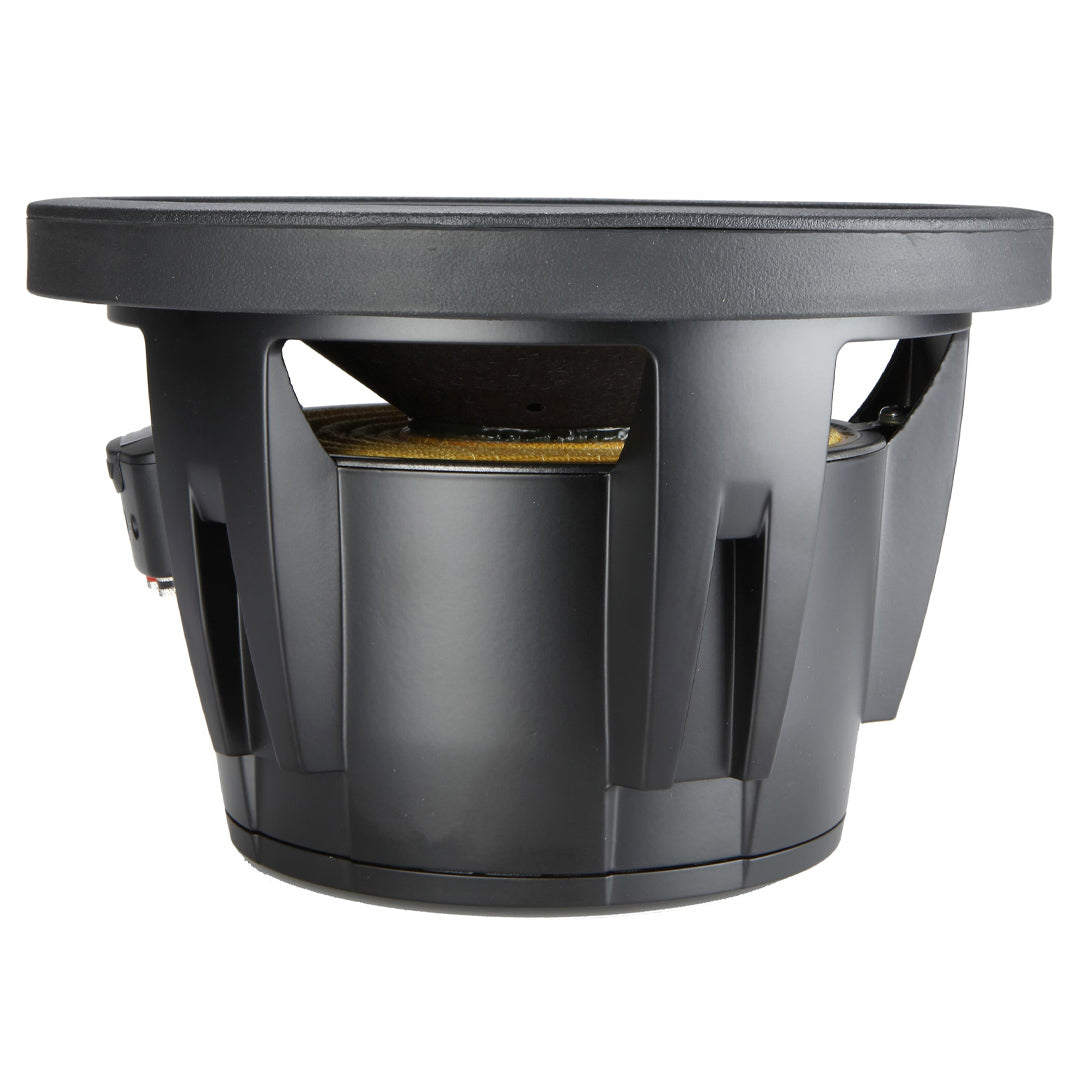

Alpine R-W12D2, R Series 12" Dual 2 Ohm Voice Coil Subwoofer - 2250 Watts
The requested item has been discontinued.
Please consider the below similar item.
Not Available for Shipping Outside of the United States
Get Your Alpine Gear Here and Get it Installed at Your Local Authorized Alpine Dealer
Questions? We're here to help
THE NEXT EVOLUTION OF PROVEN PERFORMANCE
The new R-Series subwoofers take a great platform to the next level. Although the R-Series subwoofers are new for 2017, they actually come from an impressive Alpine lineage the Type-R subwoofers. Type-R subwoofers have been known for their power handling, clean output and deep bass excursion at a mid-line price. Using the highly successful Type-R subwoofers as a foundation, we applied various performance and hardware improvements to the design, essentially transforming them into the new R-Series subwoofers The Next Evolution of Proven Performance.
STRONGER CONE ASSEMBLY
R-Series subwoofers feature a Kevlar-treated cone for durability. The combination of this cone with the Santoprene surround allows the subwoofer to deliver 19mm of X-max, for incredible, hard-hitting bass. A new method of attaching the spider and cone to the voice coil ensures not only rigidity throughout the motor structure but contributes to the subwoofers increased accuracy.
NEW POWER RATING
All four R-Series subwoofers are rated at 750W RMS. These subwoofers are a perfect match for the PDR-M65 Mono Power Density Amplifier, to create a system that works efficiently together.
MORE RIGID DUST CAP
Talc, a common mineral used in products such as baby powder and paint, has been found to have incredible damping properties while being less dense than the traditional Mica filler used in dust caps. By adding a calculated amount of talc to the mica polypropylene in the dust cap, Alpine was able to increase vibration absorption of the cap while lowering density. The resulting lighter dust cap contributes to a faster attack and a more accurate reproduction of low frequencies.
OPTIONAL GRILLE
The R-Series subwoofers are compatible with optional grilles, to provide added protection to the cone. The 12-inch models are compatible with the KTE-12G Grille System, while the 10-inch models are compatible with the KTE-10G Grille System (all grilles are sold separately).
There are four models of R-Series subwoofers: the R-W12D4 12-inch Dual 4 Ohm, R-W12D2 12-inch Dual 2 Ohm, R-W10D4 10-Inch Dual 4 Ohm, and R-W10D2 10-Inch Dual 2 Ohm.
|
Size |
12-inch |
|
Voice Coil |
DVC |
|
Impedance |
2 ohms |
|
RMS Power Rating (Watts) |
750 |
|
Peak Power Rating (Watts) |
2250 |
| Cone Material |
Kevlar-Reinforced Pulp |
| Surround Material |
Rubber |
| Free Air |
No |
| Sensitivity |
84.3 dB at 1 Watt |
| Frequency Response |
24-200hz |
|
Top Mount Depth (Inches) |
6 3/8 |
| Bottom Mount Depth (Inches) |
7 1/4 |
| Cutout Diameter (Inches) |
10 7/8 |
| Vas (liters) |
51 |
| Fs (Hz) |
27 |
| Xmax (millimeters) |
20 |
| Warranty |
1 Year |
|
Size |
12-inch |
|
Voice Coil |
DVC |
|
Impedance |
2 ohms |
|
RMS Power Rating (Watts) |
750 |
|
Peak Power Rating (Watts) |
2250 |
| Cone Material |
Kevlar-Reinforced Pulp |
| Surround Material |
Rubber |
| Free Air |
No |
| Sensitivity |
84.3 dB at 1 Watt |
| Frequency Response |
24-200hz |
|
Top Mount Depth (Inches) |
6 3/8 |
| Bottom Mount Depth (Inches) |
7 1/4 |
| Cutout Diameter (Inches) |
10 7/8 |
| Vas (liters) |
51 |
| Fs (Hz) |
27 |
| Xmax (millimeters) |
20 |
| Warranty |
1 Year |
