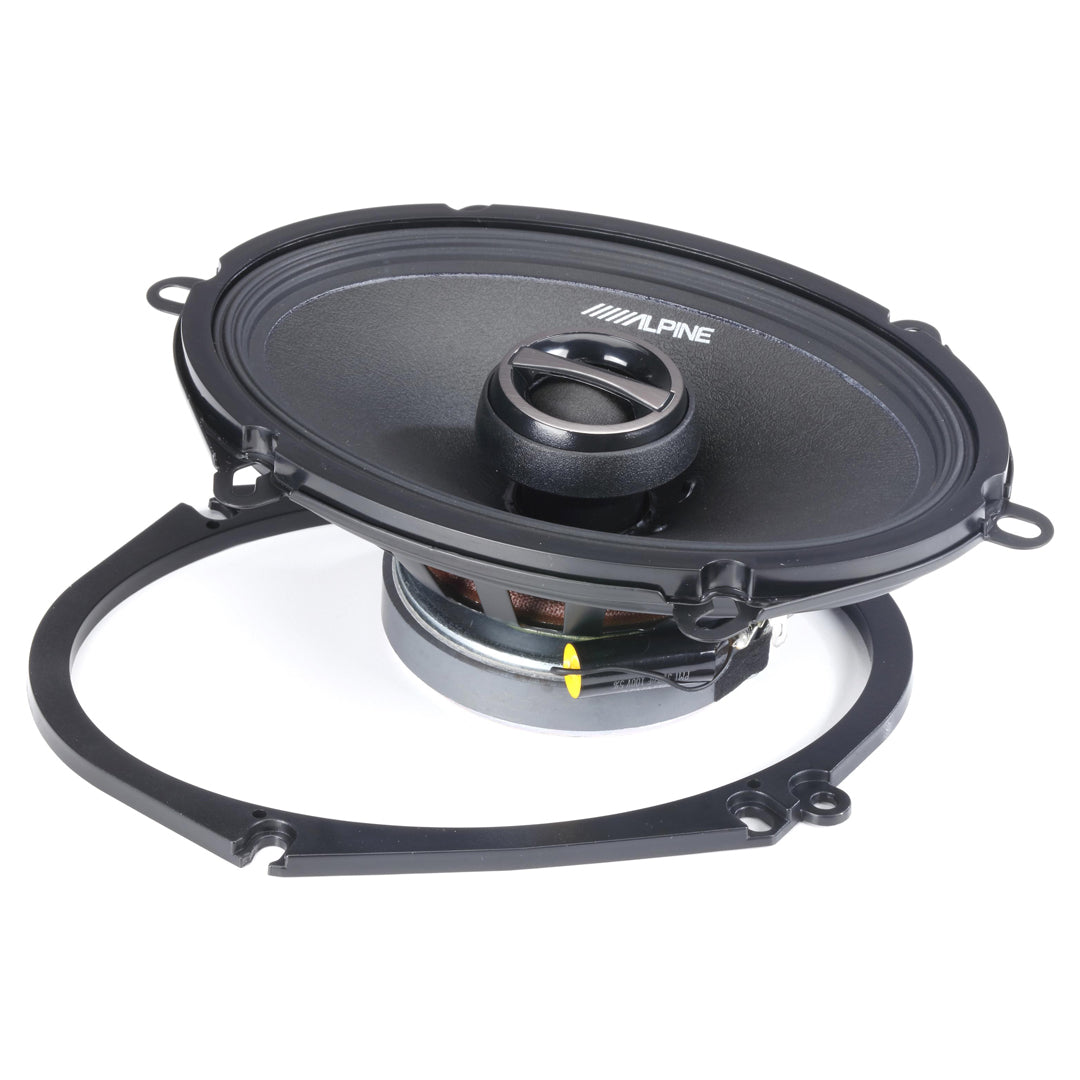

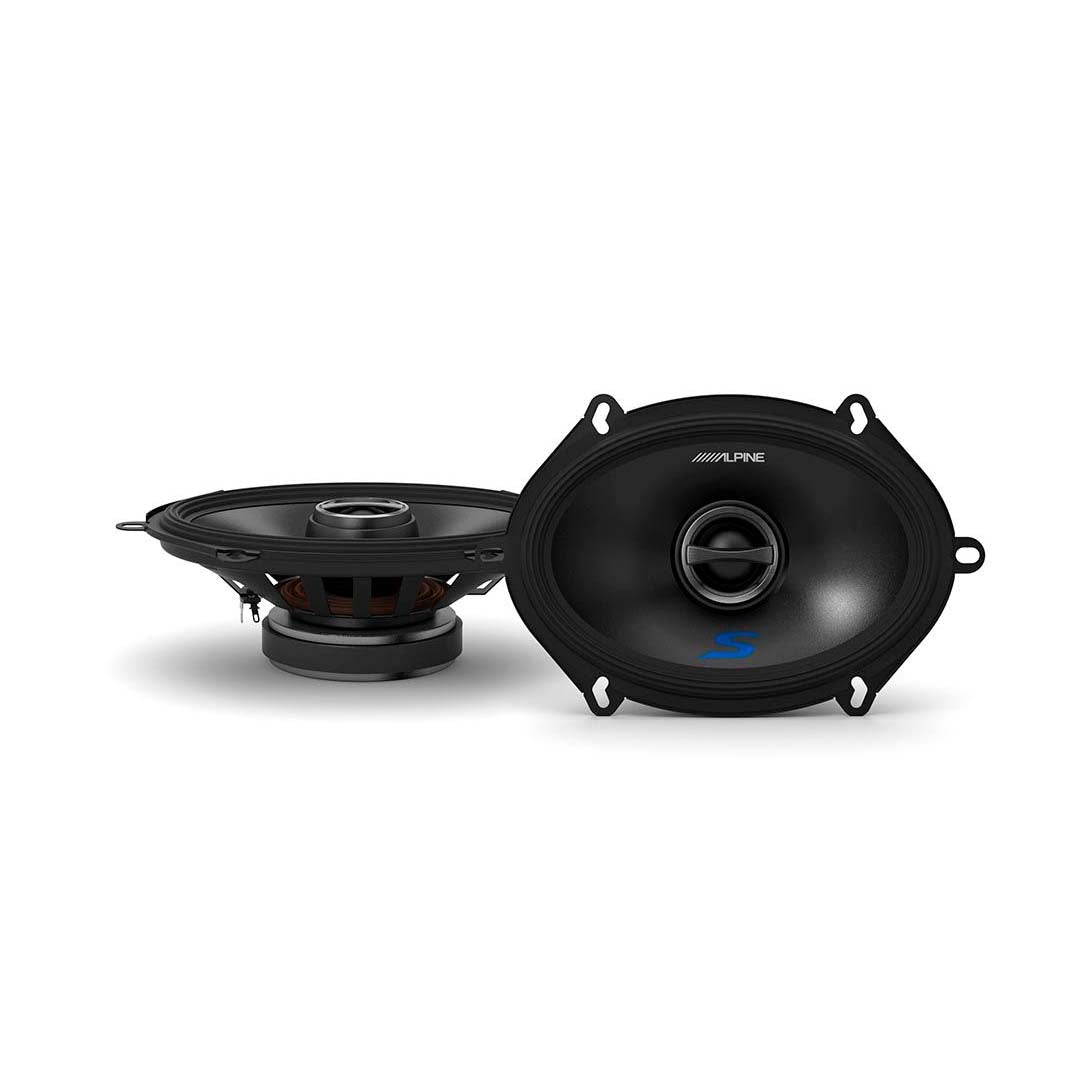

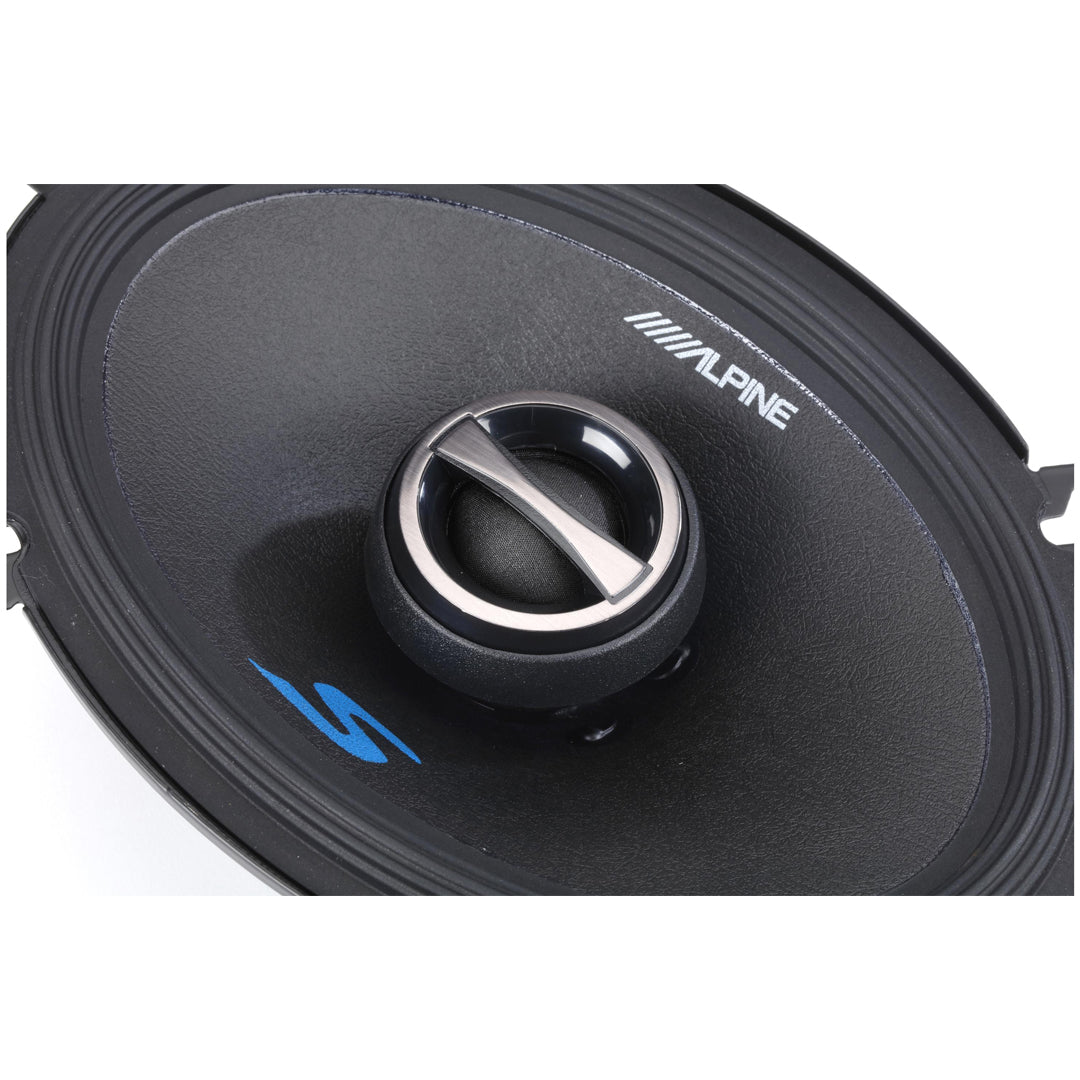

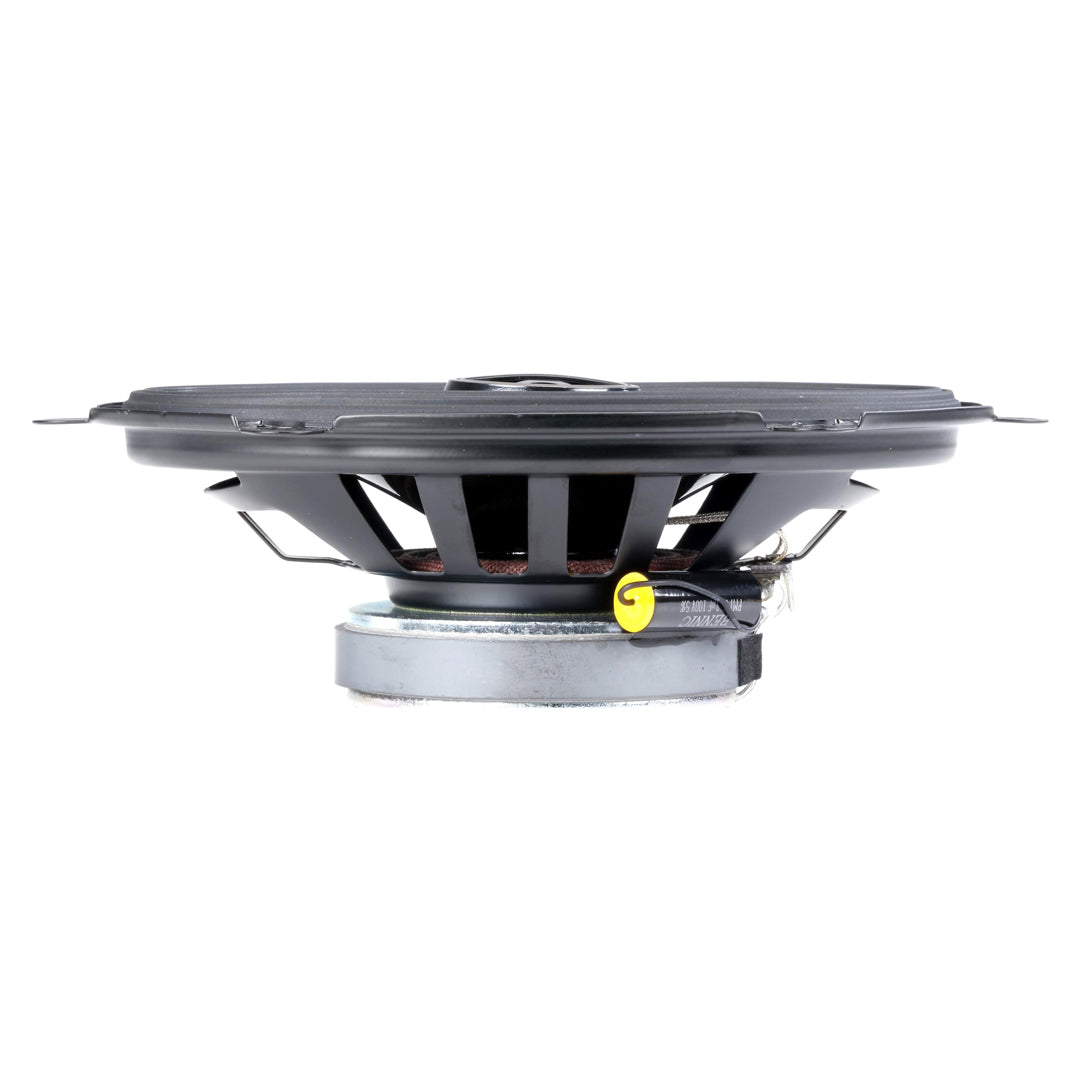

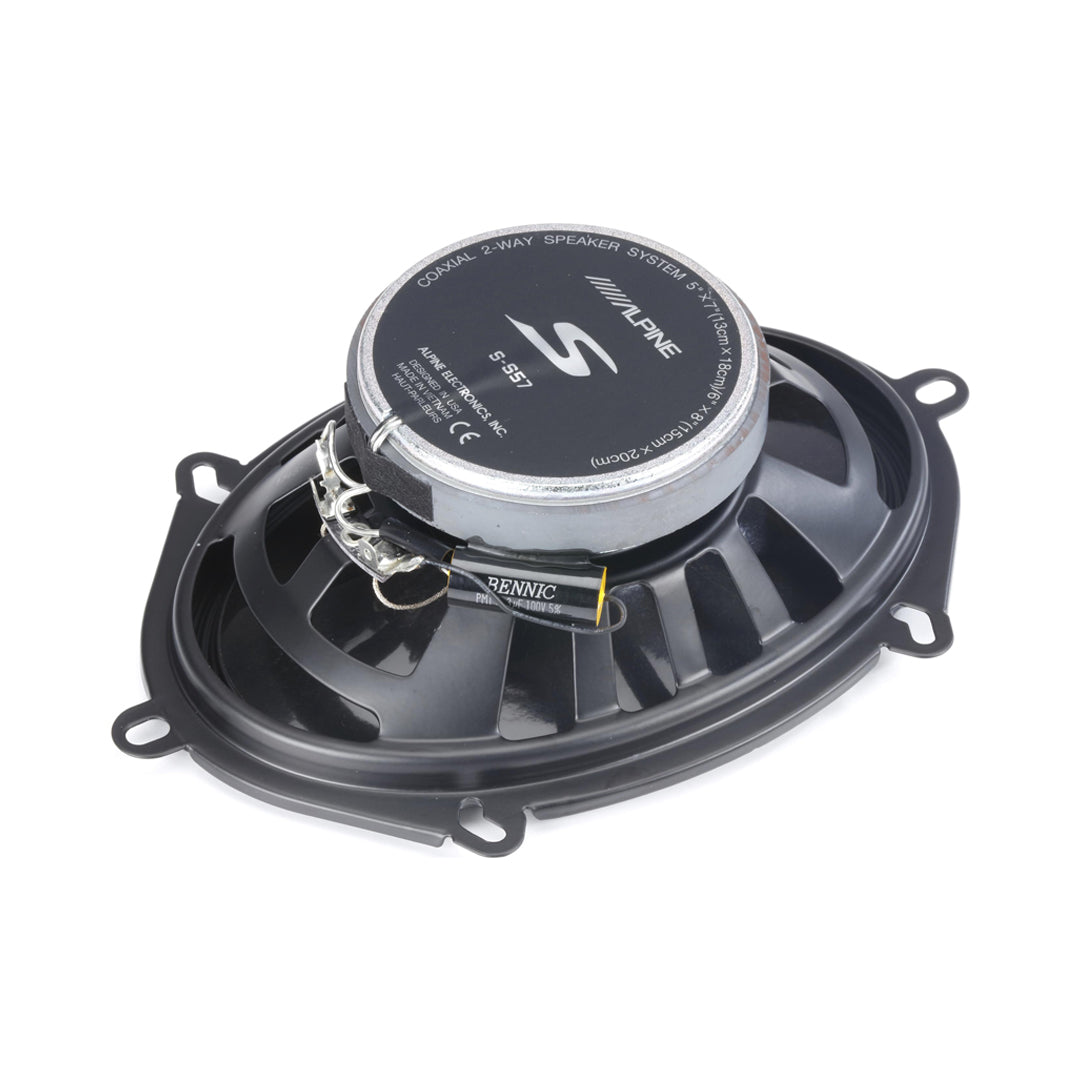

Alpine S-S57, S-Series 5x7" 2-Way Coaxial Car Speakers, 230W (Pair)
Not Available for Shipping Outside of the United States
Get Your Alpine Gear Here and Get it Installed at Your Local Authorized Alpine Dealer
Questions? We're here to help
INCREASED DRIVING POWER AND CONTROL
The S-Series speakers have a large voice coil. The 6.5-inch and 6x9-inch models have a 35-mm voice coil, and this large voice coil size increases their driving power and control of the motor. The S-Series speakers are the first in the industry to use a material called CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. On a standard, off-the-shelf oval cone, the edges are naturally weaker than the center due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the cone that are normally weak. The result is rigidity throughout the cone that delivers accurate and efficient performance. The ability to manipulate the CFRP material during the molding process is currently exclusive to Alpine and the S-Series speakers. Alpine has three patent-pending procedures in support of this innovative manufacturing process.
INCREDIBLE LINERITY AND ACCURACY
Alpine’s patented H.A.M.R. (High Amplitude Multi-Roll) surround is now found on the S-Series speakers. This proven technology increases excursion while maintaining accuracy and linearity. The multi-roll design allows for an even unfolding of the surround which creates incredible linearity and colorization rejection.
SMOOTH, WIDE FREQUENCY RESPONSE
The 1-inch silk dome is perfect for recreating pleasant upper range response without creating listening fatigue in the vehicle. The soft silk material ensures wide frequency response and durability for long term playback.
|
Speaker Size |
5x7" |
|
Design |
2-Way |
|
Tweeter Design |
1" Dome |
|
Impedance (Ohms) |
4 |
|
Tweeter Composition |
Silk |
| Woofer Composition |
Carbon-Fiber Reinforced Plastic |
| Woofer Surround |
Rubber |
| Sensitivity (dB) |
88dB |
| Frequency Response (Hz) |
73-22k Hz |
| RMS Power Rating (Watts) |
75 |
| Peak Power Rating (Watts) |
230 |
| Top-mount Depth (Inches) |
2 7/16 |
| Bottom-mount Depth (inches) |
2 13/16 |
| Cutout Diameter (inches) |
|
| Grilles Included |
Yes |
| Warranty |
1-Year |
|
Speaker Size |
5x7" |
|
Design |
2-Way |
|
Tweeter Design |
1" Dome |
|
Impedance (Ohms) |
4 |
|
Tweeter Composition |
Silk |
| Woofer Composition |
Carbon-Fiber Reinforced Plastic |
| Woofer Surround |
Rubber |
| Sensitivity (dB) |
88dB |
| Frequency Response (Hz) |
73-22k Hz |
| RMS Power Rating (Watts) |
75 |
| Peak Power Rating (Watts) |
230 |
| Top-mount Depth (Inches) |
2 7/16 |
| Bottom-mount Depth (inches) |
2 13/16 |
| Cutout Diameter (inches) |
|
| Grilles Included |
Yes |
| Warranty |
1-Year |
