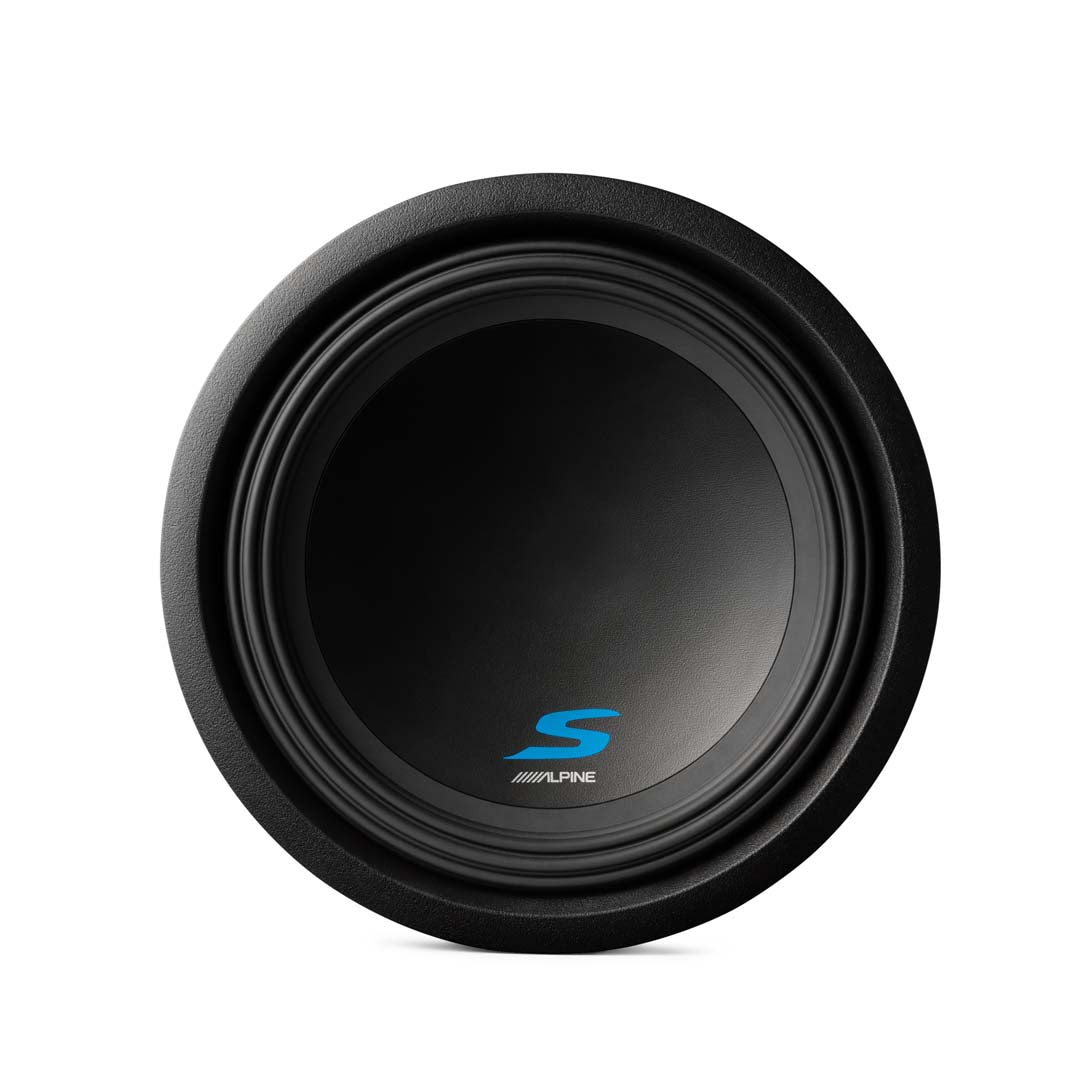

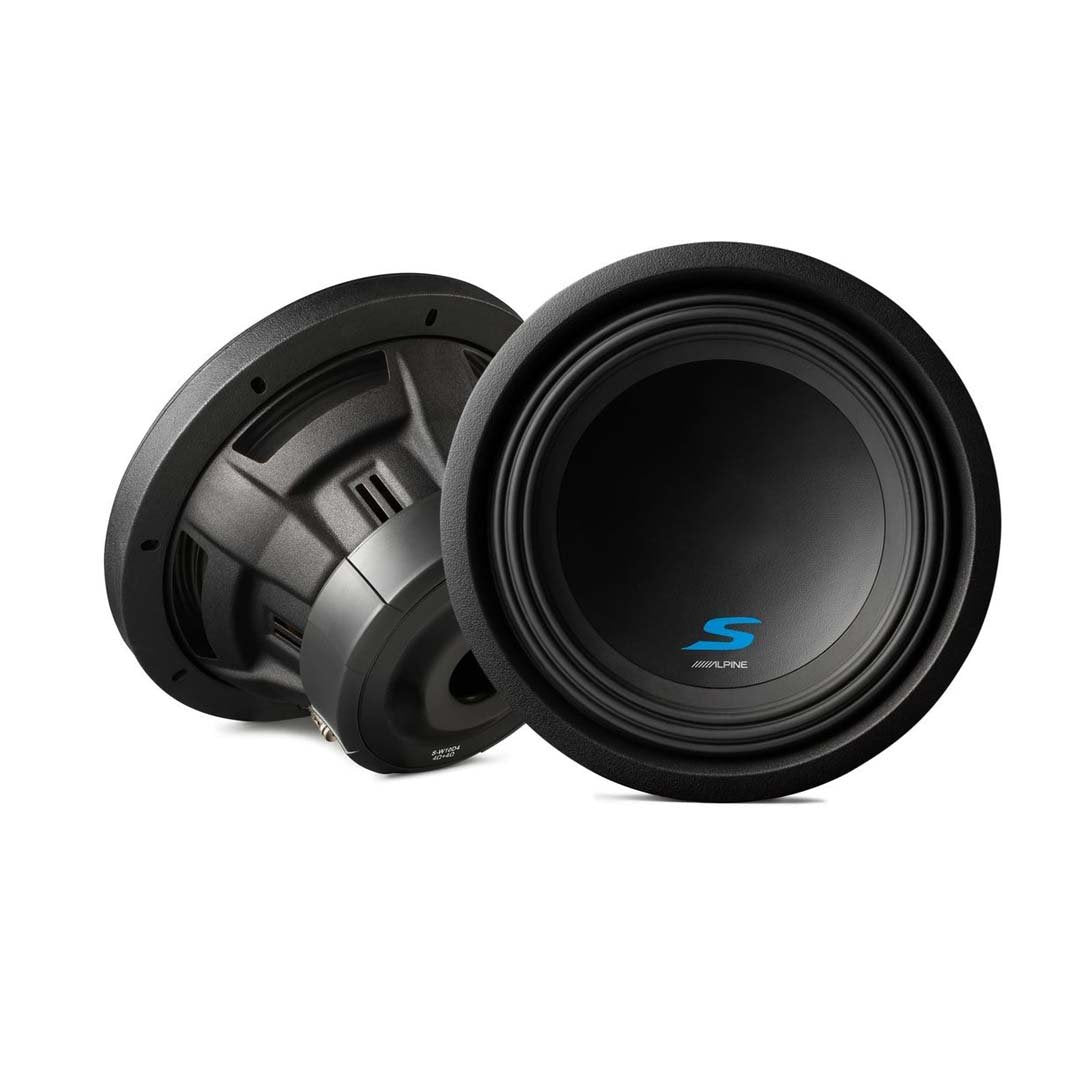

Alpine S-W12D4, S Series Dual 4 Ohm Voice Coil 1800 Watts Subwoofer, 12"
Not Available for Shipping Outside of the United States
Get Your Alpine Gear Here and Get it Installed at Your Local Authorized Alpine Dealer
Questions? We're here to help
VERSATILE APPLICATIONS
Along with the new 8” woofer, the 10” and 12” S-Series subwoofers have been re-designed from the ground up. The mounting depth of the 10” and 12” subwoofers are almost 1” more shallow than previous models at just over 4.5” for the 10” models and just over 5” for the 12” models, allowing them to fit into a wide variety of installation applications.
600W POWER HANDLING
The 10” and 12” S-Series subwoofers are engineered with an improved voice coil allowing the woofer to benefit from an increased power rating of 600 watts. Match them with the powerful VPower MRV-M500 mono amplifier for a great subwoofer system.
CUSTOM-STAMPED STEEL FRAME
Each S-Series subwoofer uses a custom-stamped steel frame. These high-strength frames were designed to withstand the rigors of the improved S-Series motor. They have frame leg vents as well as a vented back plate to help cool the subwoofer voice coil and motor parts, plus a shallow design to help fit in smaller spaces.
PUSH-TYPE INSERT TERMINALS WITH DUAL VOICE COIL JUMPER SYSTEM
The push-type insert terminals help reduce the installation time of the S-Series subwoofers. Just strip the speaker insulation at the wire end, then insert the bare wire into the hole of the spring-loaded push terminal.
STRONTIUM FERRITE DOUBLE-STACKED MAGNETS
The S-Series subwoofers use two strontium ferrite magnets stacked together, for increased motor strength and excursion which ultimately leads to more bass output.
CLEAN, CONCEALED MOUNT GASKET SYSTEM
The S-Series subwoofers have concealed mount gaskets, creating a clean, finished appearance for any vehicle.
OPTIONAL GRILLES
All S-Series subwoofers are compatible with optional grilles (sold separately) to provide added protection to the cone. The grilles feature a mesh design with a S-Series logo badge. Choose from the following to match the size of your subwoofer; all grilles are sold as single pieces.
KTE-8G: For 8” S-Series Subwoofers
KTE-10G.2: For 10” S-Series Subwoofers
KTE-12G.2: For 12” S-Series Subwoofers
|
Size |
12-inch |
|
Voice Coil |
DVC |
|
Impedance |
4 ohms |
|
RMS Power Rating (Watts) |
600 |
|
Peak Power Rating (Watts) |
1800 |
| Cone Material |
Kevlar-Reinforced Pulp |
| Surround Material |
Rubber |
| Free Air |
No |
| Sensitivity |
86.4 dB at 1 Watt |
| Frequency Response |
24-200hz |
|
Top Mount Depth (Inches) |
5 1/8 |
| Bottom Mount Depth (Inches) |
5 7/8 |
| Cutout Diameter (Inches) |
10 9/16 |
| Vas (liters) |
46.4 |
| Fs (Hz) |
31 |
| Xmax (millimeters) |
15 |
| Warranty |
1 Year |
|
Size |
12-inch |
|
Voice Coil |
DVC |
|
Impedance |
4 ohms |
|
RMS Power Rating (Watts) |
600 |
|
Peak Power Rating (Watts) |
1800 |
| Cone Material |
Kevlar-Reinforced Pulp |
| Surround Material |
Rubber |
| Free Air |
No |
| Sensitivity |
86.4 dB at 1 Watt |
| Frequency Response |
24-200hz |
|
Top Mount Depth (Inches) |
5 1/8 |
| Bottom Mount Depth (Inches) |
5 7/8 |
| Cutout Diameter (Inches) |
10 9/16 |
| Vas (liters) |
46.4 |
| Fs (Hz) |
31 |
| Xmax (millimeters) |
15 |
| Warranty |
1 Year |
