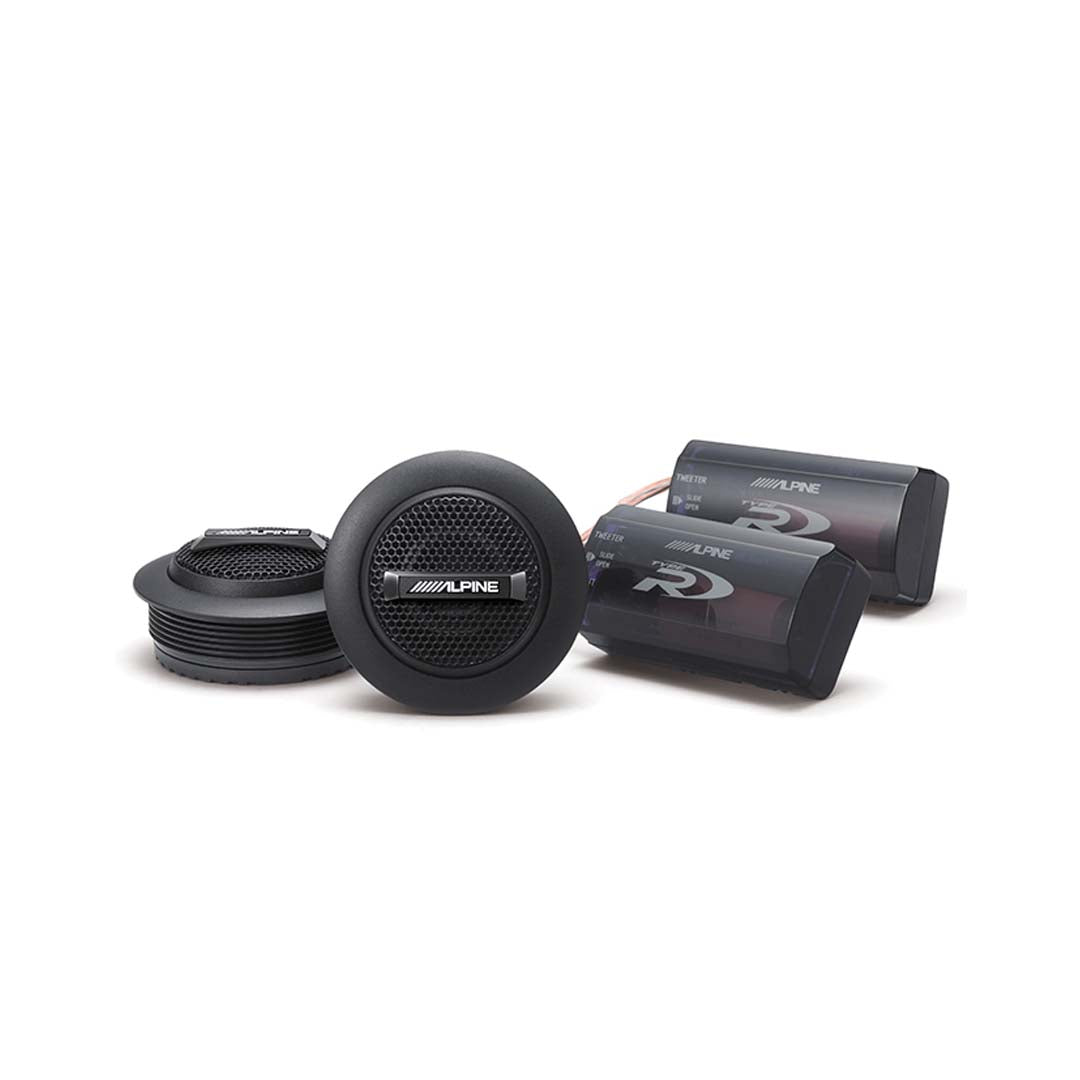

Alpine SPR-10TW, R Series 1" Tweeter
Not Available for Shipping Outside of the United States
Get Your Alpine Gear Here and Get it Installed at Your Local Authorized Alpine Dealer
Questions? We're here to help
THE POWER OF THE EQ RING
Alpine’s new EQ Ring improves the tweeter’s dispersion characteristics, providing excellent off-axis response. This means that no matter where you place your new Type R tweeters, they will maintain their wide, flat frequency response.
ULTIMATE POWER HANDLING
Type-R is known for legendary power handling capabilities, and the new Type-R tweeter is no exception. Its copper-clad aluminum voice coil, copper shorting cap, high-grade neodymium magnet, and aluminum bobbin combine to deliver best-in-class power handling of 150 watts RMS and 450 watts peak, so turn up the volume!
TINY CROSSOVER
We even took the redesign all the way down to the crossover network. It’s 75% smaller than previous networks and uses extremely high-grade components, along with extremely precise trace wire tweeter resistance built right in to the crossover circuit board. The crossover’s cover slides back to reveal 4-levels of tweeter adjustments: 0dB, -2dB, -4dB, and -6dB for precise tuning.
SILK RING DOME MEANS SMOOTH RESPONSE
The 1” pure silk ring dome tweeter design is engineered to provide smooth, accurate high-frequency response at any power level. The built-in resonance absorber works with the ring dome to reduce coloration and ringing in the high-frequency spectrum too.
THE LOOK YOU WANT
The Type R Component tweeters include a removable logo, so you can go for a high-profile look or keep it stealth… your choice.
|
Speaker Size |
1" |
|
Design |
2-Way |
|
Tweeter Design |
1" Dome |
|
Impedance (Ohms) |
4 |
|
Tweeter Composition |
Silk |
| Woofer Composition |
|
| Woofer Surround |
|
| Sensitivity (dB) |
88dB |
| Frequency Response (Hz) |
1000-29k Hz |
| RMS Power Rating (Watts) |
100 |
| Peak Power Rating (Watts) |
450 |
| Top-mount Depth (Inches) |
11/16 |
| Bottom-mount Depth (inches) |
1 |
| Cutout Diameter (inches) |
2 1/16 |
| Grilles Included |
Yes |
| Warranty |
1-Year |
|
Speaker Size |
1" |
|
Design |
2-Way |
|
Tweeter Design |
1" Dome |
|
Impedance (Ohms) |
4 |
|
Tweeter Composition |
Silk |
| Woofer Composition |
|
| Woofer Surround |
|
| Sensitivity (dB) |
88dB |
| Frequency Response (Hz) |
1000-29k Hz |
| RMS Power Rating (Watts) |
100 |
| Peak Power Rating (Watts) |
450 |
| Top-mount Depth (Inches) |
11/16 |
| Bottom-mount Depth (inches) |
1 |
| Cutout Diameter (inches) |
2 1/16 |
| Grilles Included |
Yes |
| Warranty |
1-Year |
