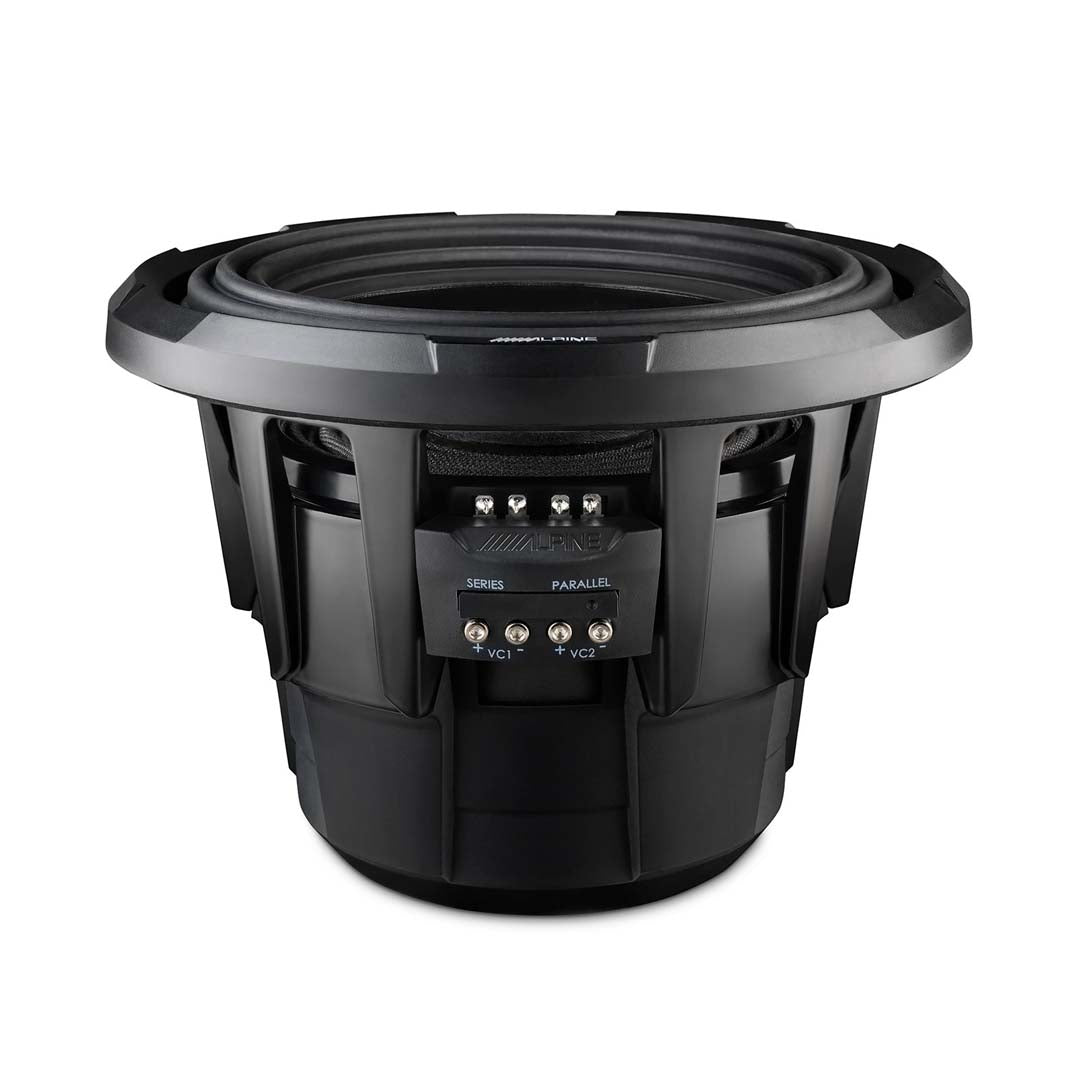

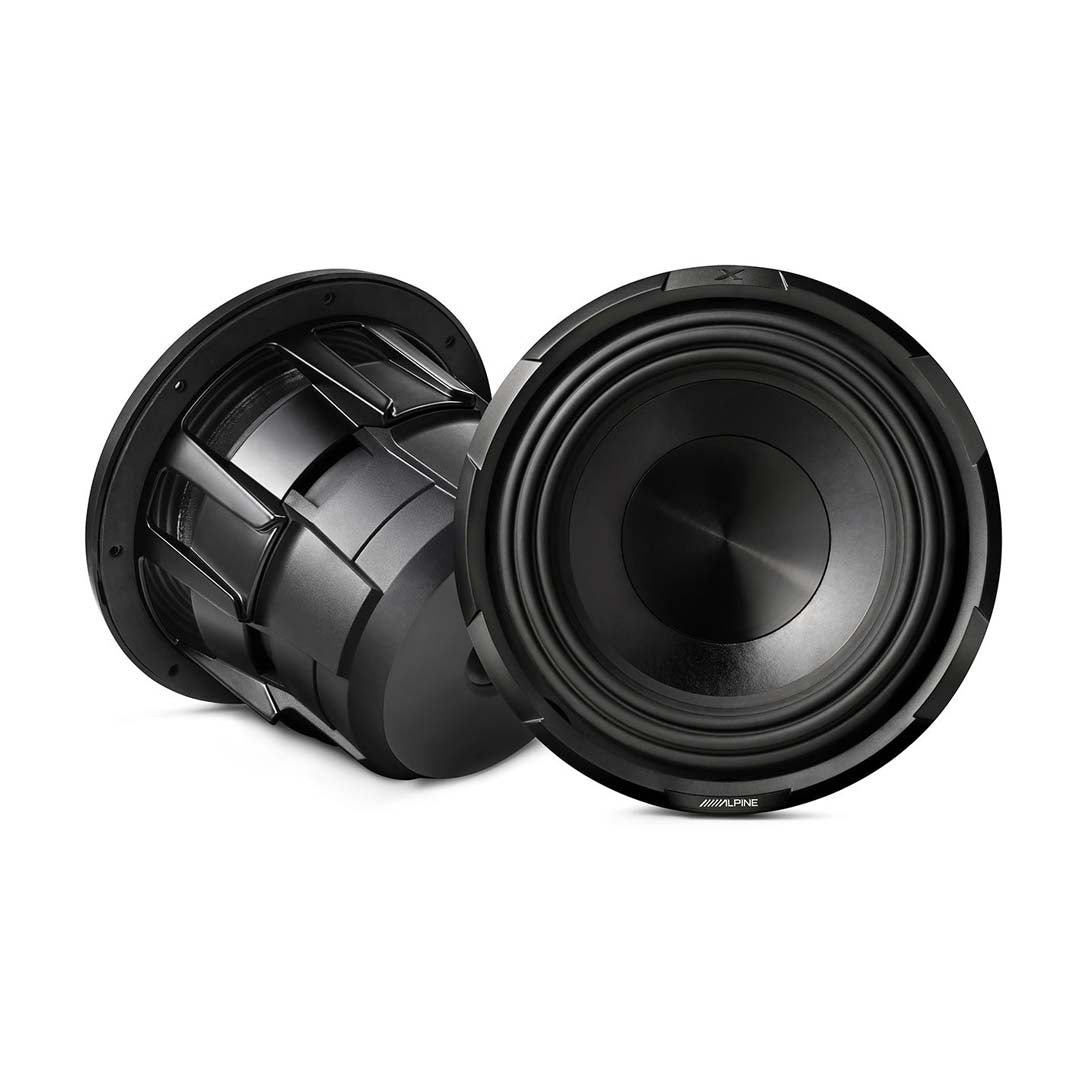

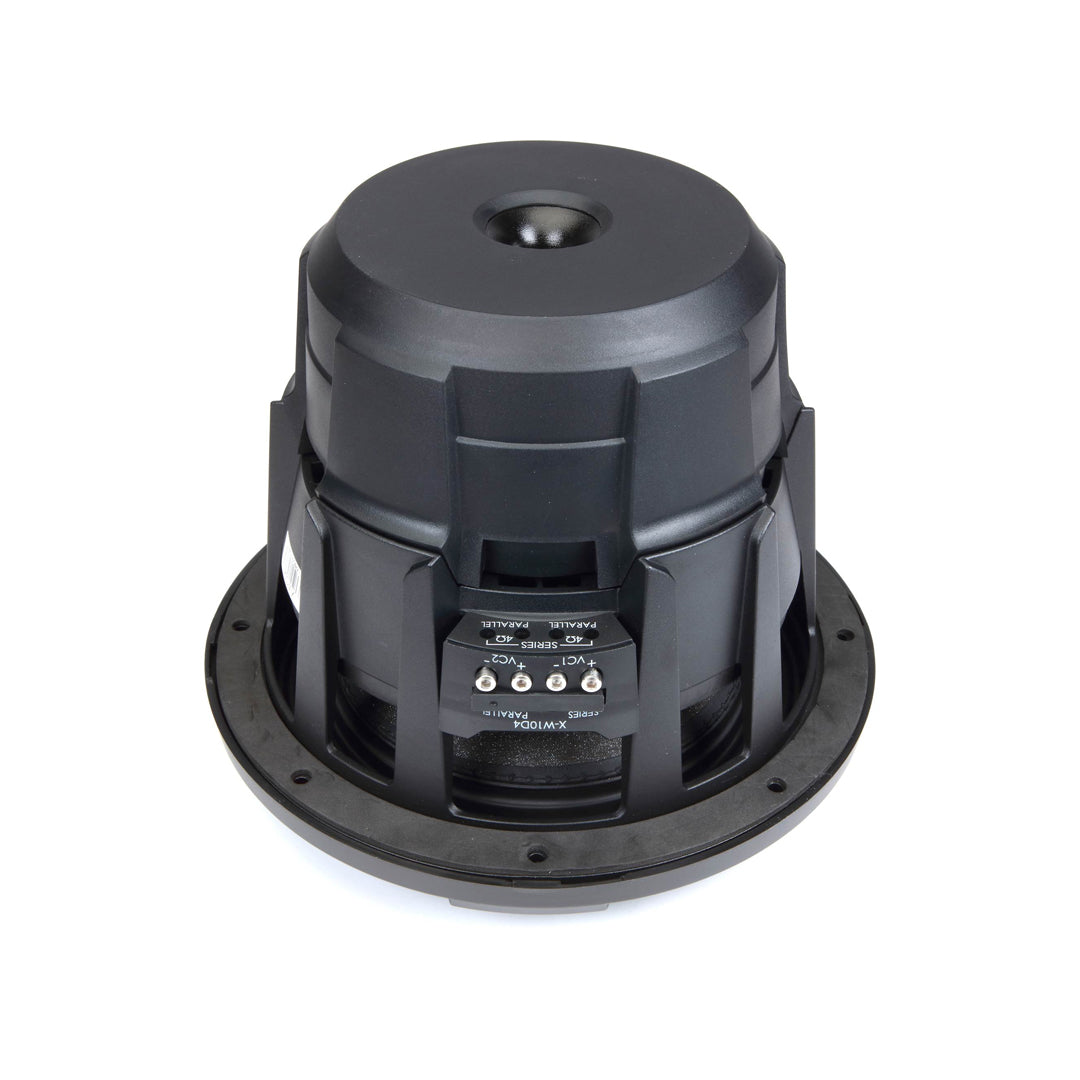

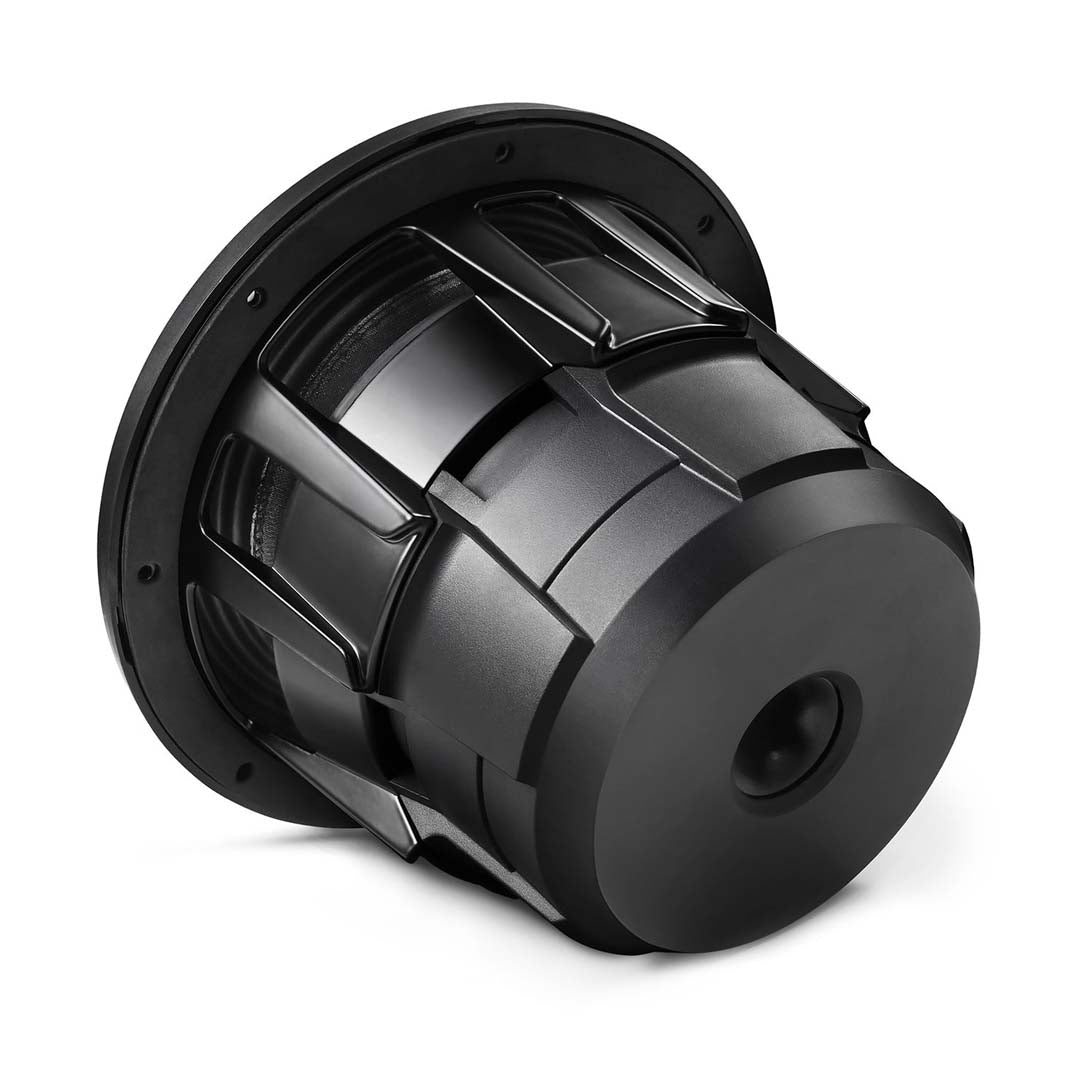

Alpine X-W10D4, X Series Dual 4 Ohm Voice Coil 10'' Subwoofer, 2700 Watts
The requested item has been discontinued.
Please consider the below similar item.
Not Available for Shipping Outside of the United States
Get Your Alpine Gear Here and Get it Installed at Your Local Authorized Alpine Dealer
Questions? We're here to help
OVERVIEW
The New X-Series subwoofers were developed from a sound philosophy we call Alpine ID – a focus on highly accurate components built for superior imaging. A triple stacked magnet surrounds an extended voice coil which allows a very long excursion resulting in huge air movement. A specialized CRC pole with integrated cooling fins and an aluminum shorting cap reduce the lag of coil’s alternating movement while also providing cooling within the motor. The cone structure is suspended by two spiders and our patented H.A.M.R. surround. The stability of the dual-spider along with the even unfolding of the multi-roll surround create incredibly linear cone travel, free of any unneeded movement that cause distortion.
The powerful and efficient motor coupled with its highly-controlled suspension give the X-Series subwoofer the ability to create loud and accurate bass in a very small, sealed box. Only requiring 1 cubic foot of air space (.55 for the 10”), the 12” X-Series subwoofer can reproduce frequencies down to 40 Hz before rolling off, leaving you with bass that digs deep and plenty of trunk space.
The new X-Series subwoofers are the X-W12D4 12-inch Dual 4 Ohm and the X-W10D4 10-inch Dual 4 Ohm.
CRITICAL EVALUATION OF IN-CAR SOUND
Alpine’s top engineers from all over the world gathered in Alpine headquarters to deeply research and evaluate sound systems from both the aftermarket and high-end OE manufacturers. Many systems today have incredible dynamic range and reach sufficient volume levels, but lacked the reality of instruments and spatial imaging. As a result, Alpine ID was born, a sound philosophy that continues to inspire us to create a new level of sonic performance.
ALPINE: IMAGE DEFINED
Or Alpine ID for short, is the new Alpine global sound culture with an evolutionary approach for solving what’s missing in most car audio systems these days: great spatial imaging and depth of sound stage. It centers on developing matched sound systems with core components that work together to achieve greater realism in the sound stage while maintaining great dynamic range and accuracy.
BUILT TO MOVE TONS OF AIR
The 24mm Xmax is best in class and allows close to 2 inches of full cone motion. In order to create a powerful yet accurate subwoofer, we had to implement several technologies that keep the cone under control. Dual spiders ensure a rigid moving assembly while the HAMR surround provides long linear travel. A shorting ring keeps the THD down while a custom heat sink integrated CRC pole and shorting cap keeps high magnetic force. These design aspects come together to produce incredibly precise, powerful bass.
EASY GRILLE AND TRIM RING INCLUDED
Taking design cues from tweeter development, we’re incorporating a twist-lock trim ring which allows easy attachment of the included metal mesh grill. With a simple twist, the trim ring locks into place, concealing the mounting screws and locking the optional grille into place. The trim can be installed with or without the grille.
THE PERFECT PAIR PERFECT POWER MATCHING
The X-Series amplifier, X-A90M, is the perfect amplifier for the job. Along with the 900w power matched specifications of both components, each were built under the same sound philosophy, Alpine ID. With a focus on musicality and sound imaging, the X-W10D4 is complimented by the amplifiers clean, low distortion output and >1500 damping factor. Add the X-Series speaker to the system and prepare to experience a new level of in-car imaging.
|
Size |
10-inch |
|
Voice Coil |
DVC |
|
Impedance |
4 ohms |
|
RMS Power Rating (Watts) |
900 |
|
Peak Power Rating (Watts) |
2700 |
| Cone Material |
Pulp-Mica |
| Surround Material |
Rubber |
| Free Air |
No |
| Sensitivity |
83 dB at 1 Watt |
| Frequency Response |
26-200hz |
|
Top Mount Depth (Inches) |
7 3/8 |
| Bottom Mount Depth (Inches) |
|
| Cutout Diameter (Inches) |
9 |
| Vas (liters) |
20 |
| Fs (Hz) |
32 |
| Xmax (millimeters) |
24 |
| Warranty |
1 Year |
|
Size |
10-inch |
|
Voice Coil |
DVC |
|
Impedance |
4 ohms |
|
RMS Power Rating (Watts) |
900 |
|
Peak Power Rating (Watts) |
2700 |
| Cone Material |
Pulp-Mica |
| Surround Material |
Rubber |
| Free Air |
No |
| Sensitivity |
83 dB at 1 Watt |
| Frequency Response |
26-200hz |
|
Top Mount Depth (Inches) |
7 3/8 |
| Bottom Mount Depth (Inches) |
|
| Cutout Diameter (Inches) |
9 |
| Vas (liters) |
20 |
| Fs (Hz) |
32 |
| Xmax (millimeters) |
24 |
| Warranty |
1 Year |
