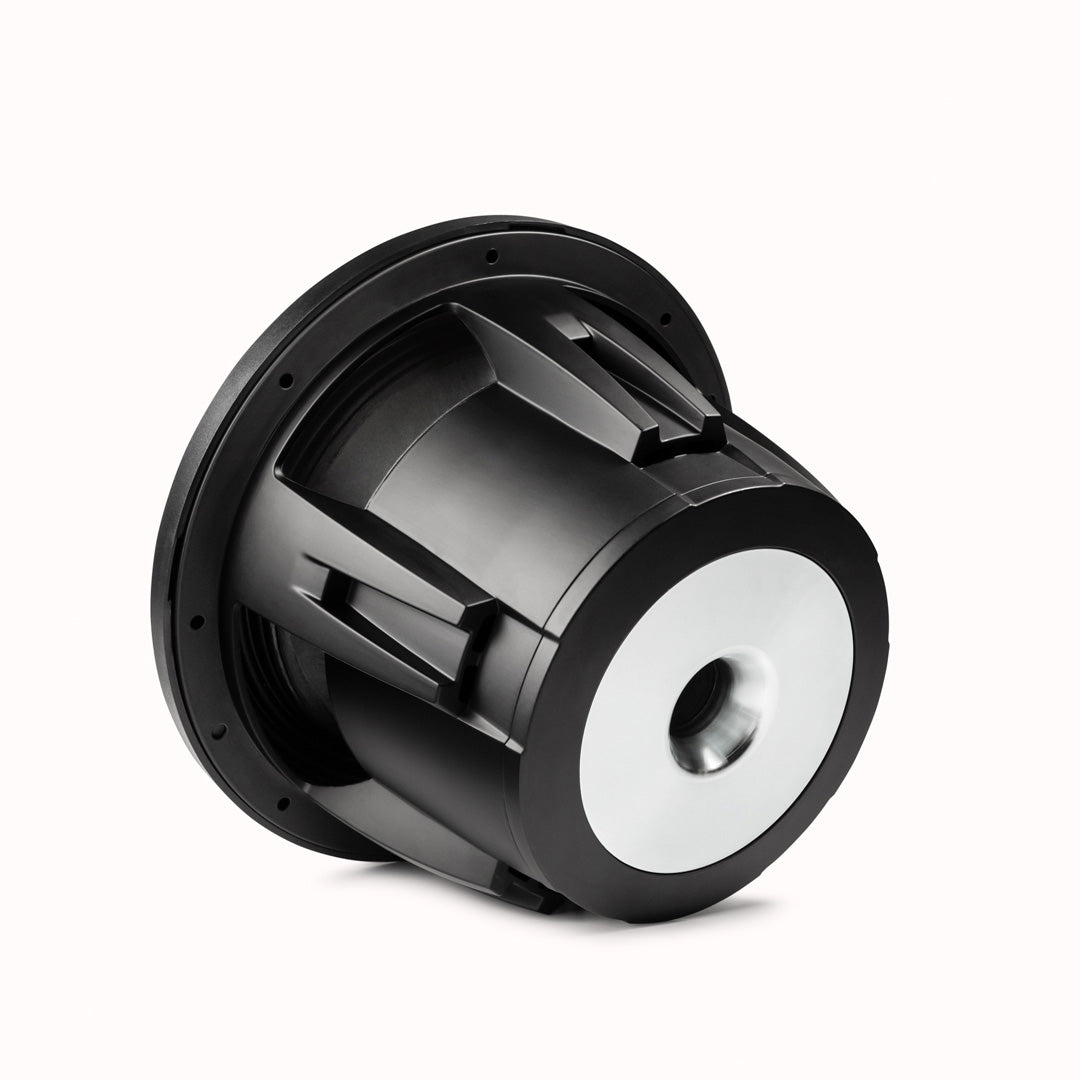

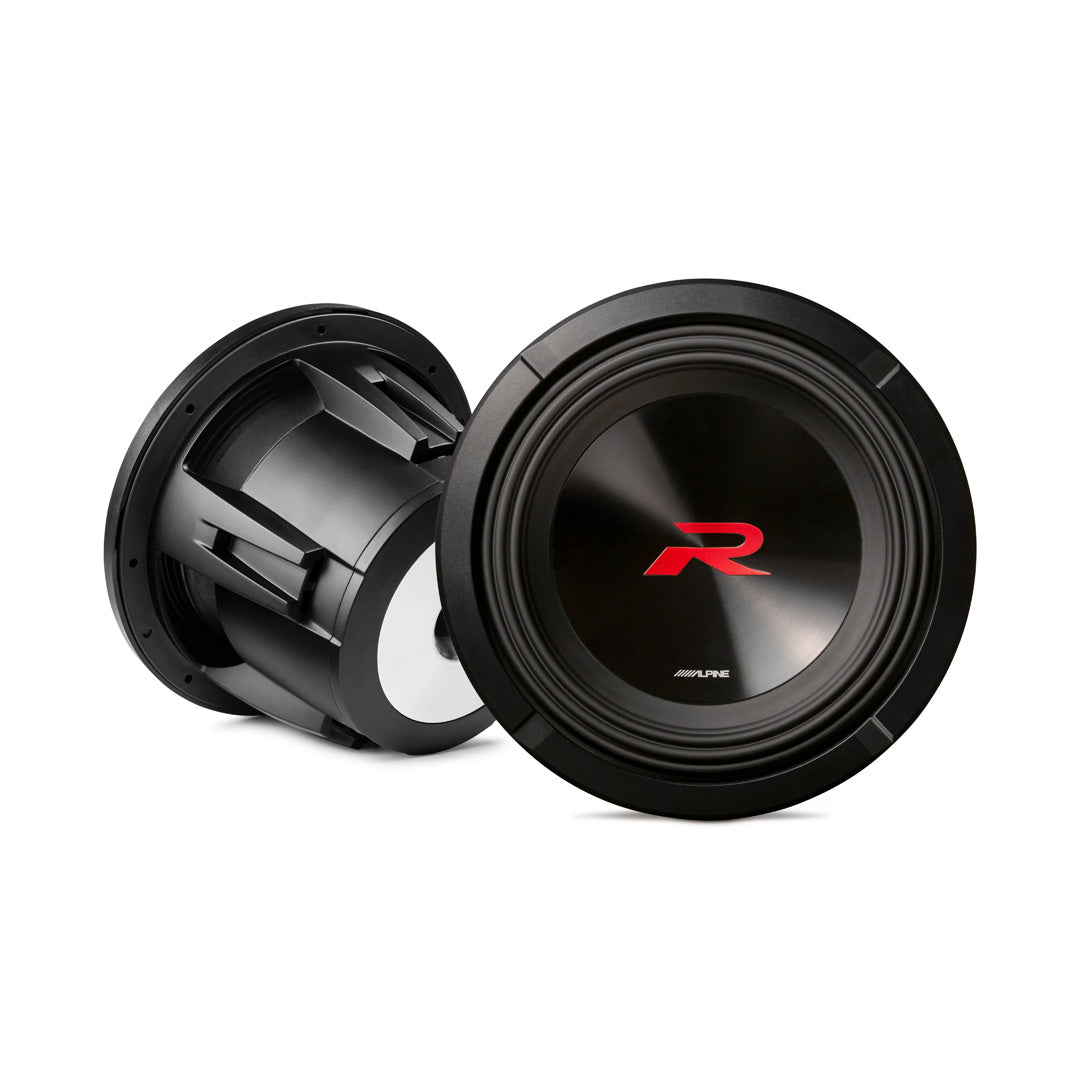

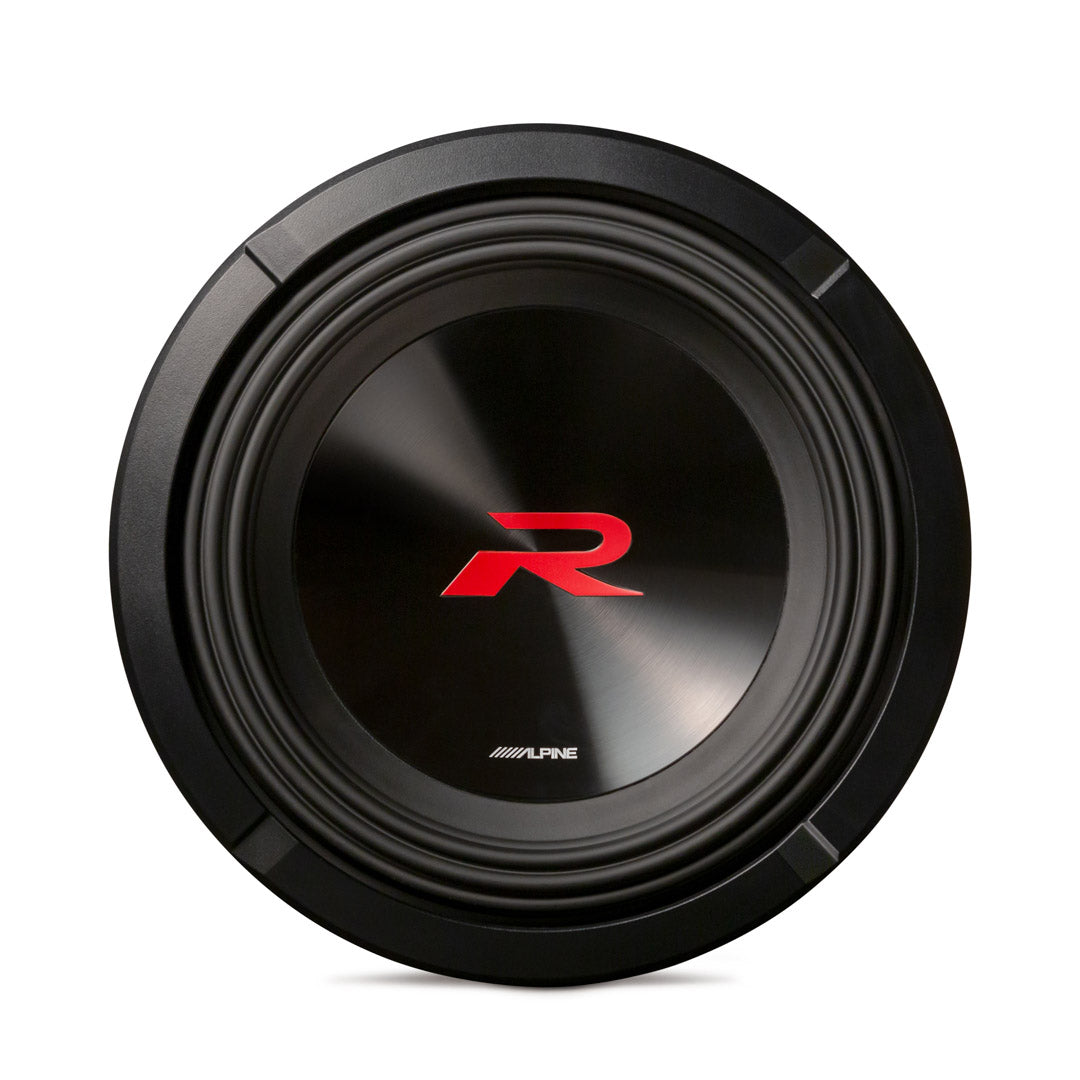

Alpine R2-W10D4, R Series 10" Dual 4 Ohm Voice Coil Subwoofer
Not Available for Shipping Outside of the United States
Get Your Alpine Gear Here and Get it Installed at Your Local Authorized Alpine Dealer
Questions? We're here to help
NEXT-GEN SOUND PERFORMANCE
Since the Type R platform, Alpine’s R-Series sound system family has been known for its incredible output and reliable performance. Now Alpine introduces the next-generation of sound performance with the 2nd-Gen R-Series Subwoofers with even more bass output.
NEW MOTOR STRUCTURE
The 2nd-Gen R-Series Subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.
Additional Reliability
A new polypropylene/ceramic composite dust cap ensures rigidity while also providing incredible internal damping (vibration absorption) to smooth out the bass response and reproduce tight bass. This premium, unique material also has higher heat reliability that ensures non-stop bass performance.
Flexible Application

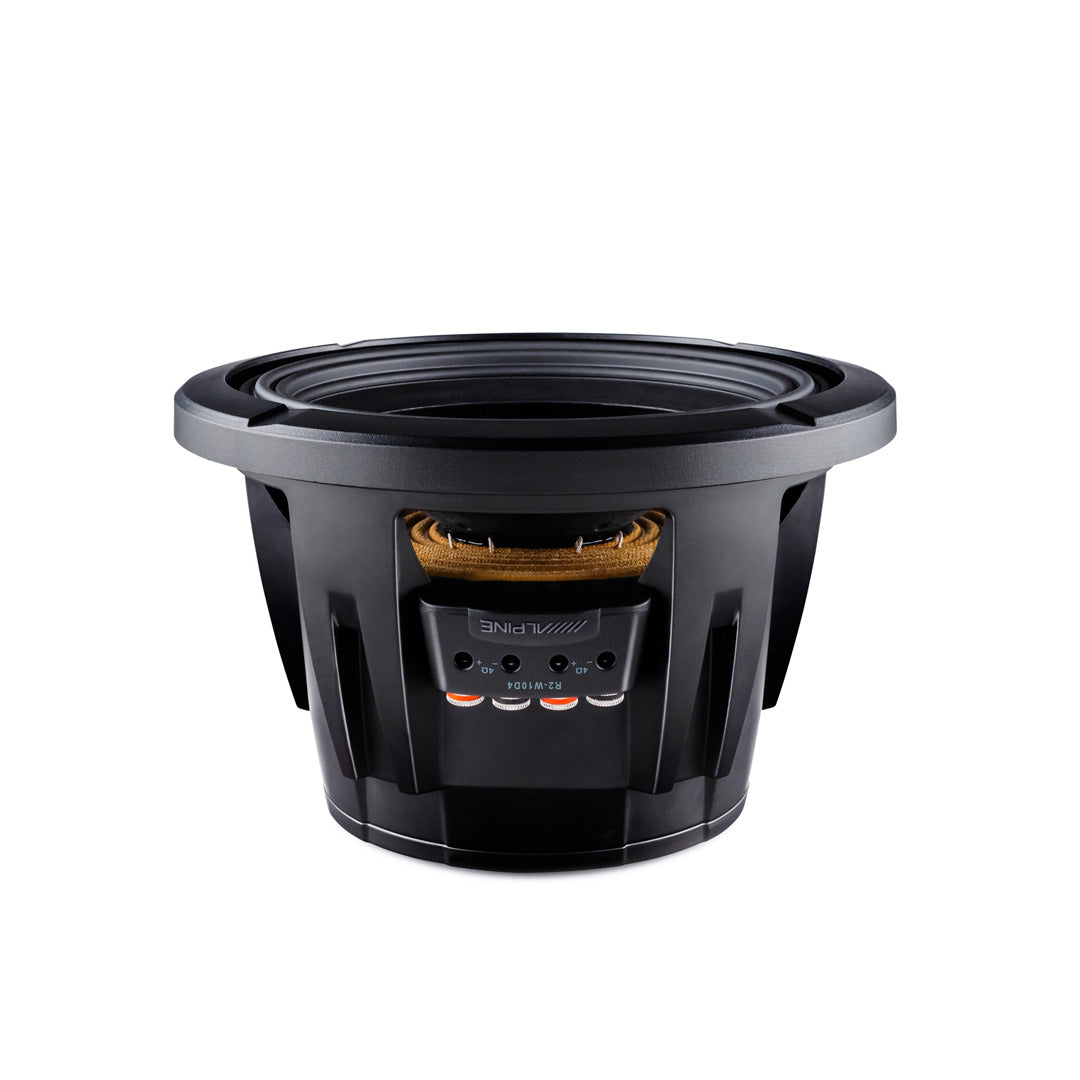

The 2nd-Gen R-Series Subwoofers contain a Dual Voice Coil (DVC) with easy configuration jumpers that allow for flexible applications. A new “EZ-Change” twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone. The R2-W10D4 is compatible with the KTE-10G Grille System (sold separately).
Increased Accuracy
The 2nd-Gen R-Series Subwoofers contain Alpine’s High Amplitude Multi-Roll (HAMR) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 20mm of total cone excursion and motion that creates incredible accuracy from the subwoofer.
|
|
Size |
10-inch |
|
Voice Coil |
DVC |
|
Impedance |
4 ohms |
|
RMS Power Rating (Watts) |
750 |
|
Peak Power Rating (Watts) |
2250 |
| Cone Material |
Kevlar-Reinforced Pulp |
| Surround Material |
Rubber |
| Free Air |
No |
| Sensitivity |
82.8dB at 1 Watt |
| Frequency Response |
26-200hz |
|
Top Mount Depth (Inches) |
6 |
| Bottom Mount Depth (Inches) |
|
| Cutout Diameter (Inches) |
9 1/16 |
| Vas (liters) |
|
| Fs (Hz) |
32 |
| Xmax (millimeters) |
20 |
| Warranty |
1 Year |
|
Size |
10-inch |
|
Voice Coil |
DVC |
|
Impedance |
4 ohms |
|
RMS Power Rating (Watts) |
750 |
|
Peak Power Rating (Watts) |
2250 |
| Cone Material |
Kevlar-Reinforced Pulp |
| Surround Material |
Rubber |
| Free Air |
No |
| Sensitivity |
82.8dB at 1 Watt |
| Frequency Response |
26-200hz |
|
Top Mount Depth (Inches) |
6 |
| Bottom Mount Depth (Inches) |
|
| Cutout Diameter (Inches) |
9 1/16 |
| Vas (liters) |
|
| Fs (Hz) |
32 |
| Xmax (millimeters) |
20 |
| Warranty |
1 Year |
