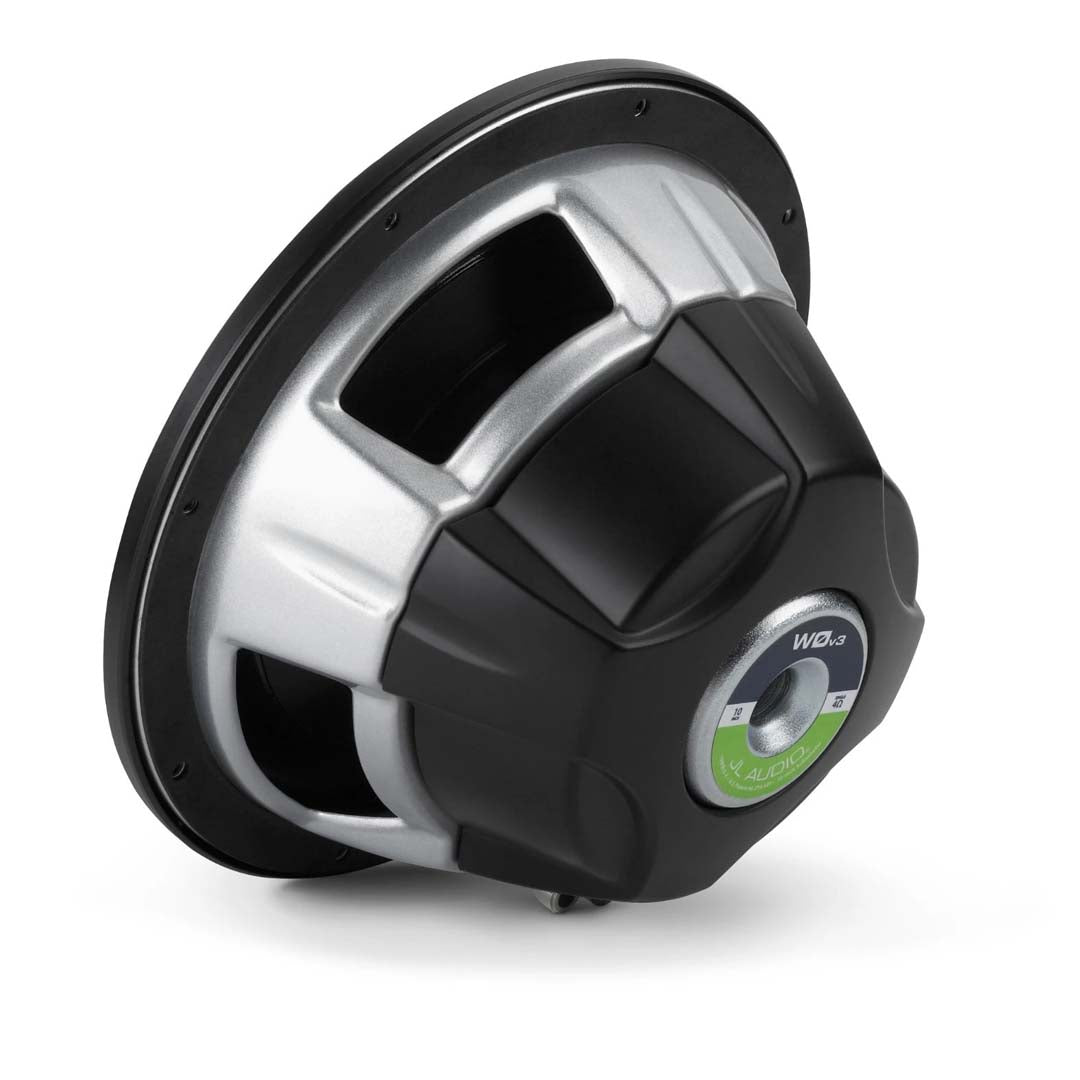

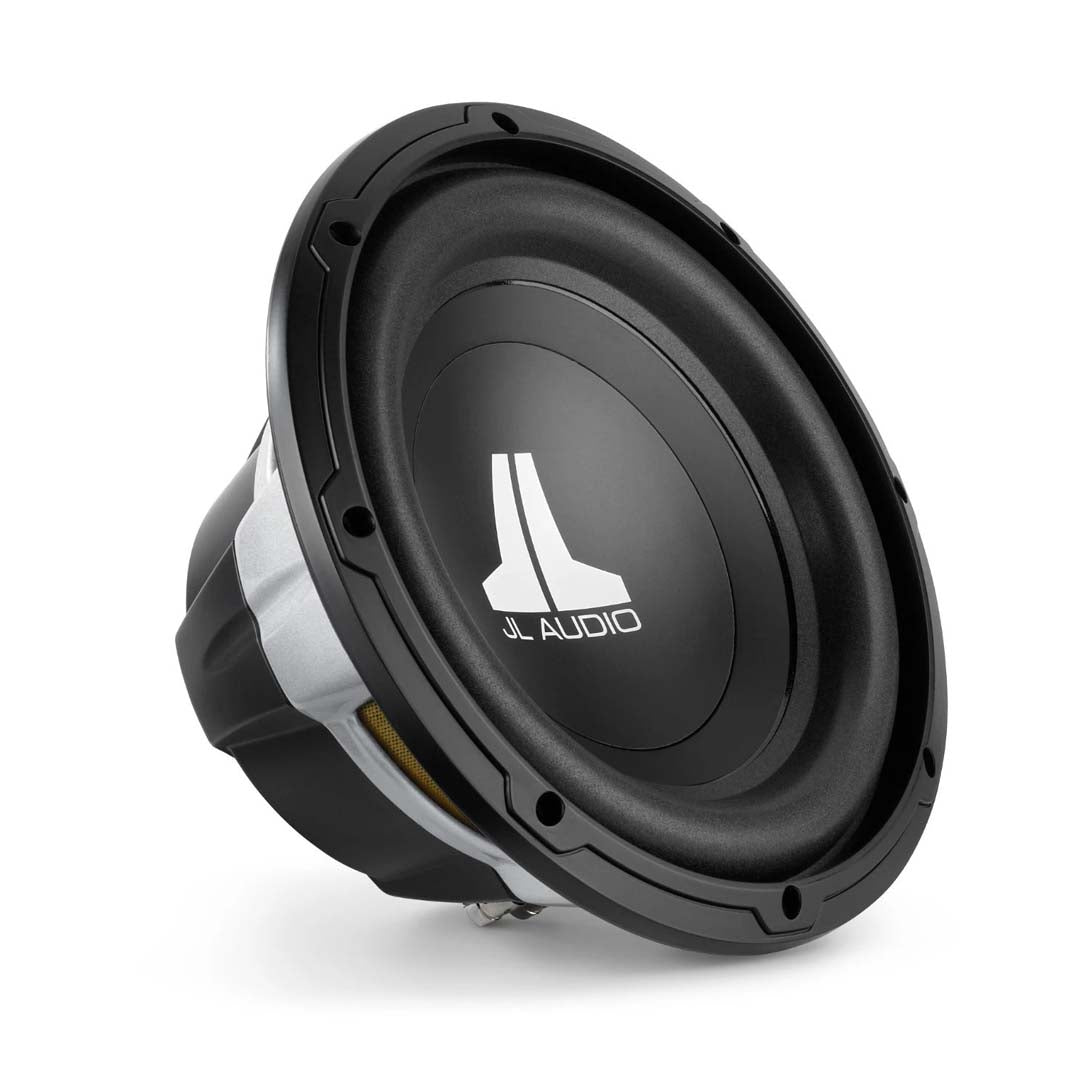

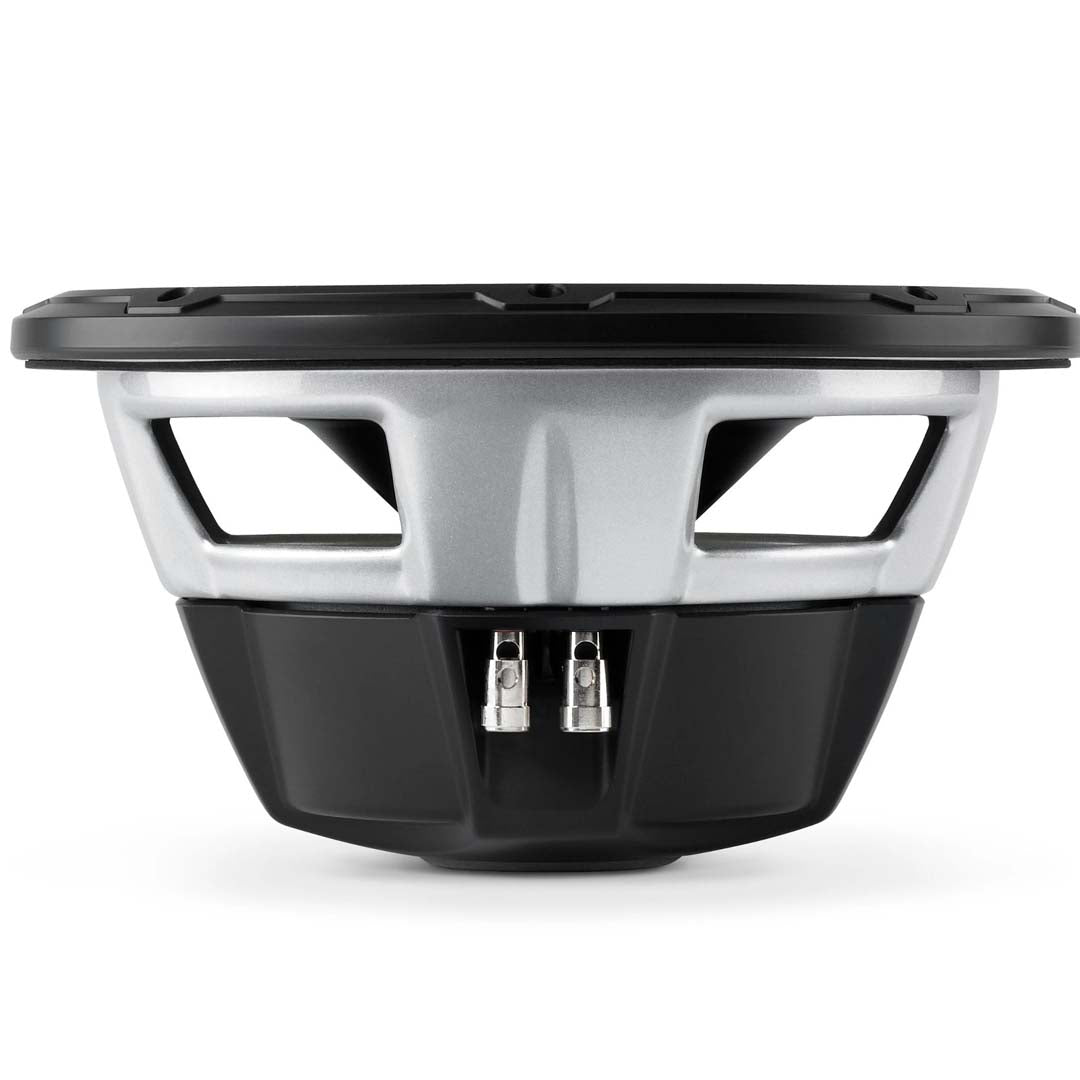

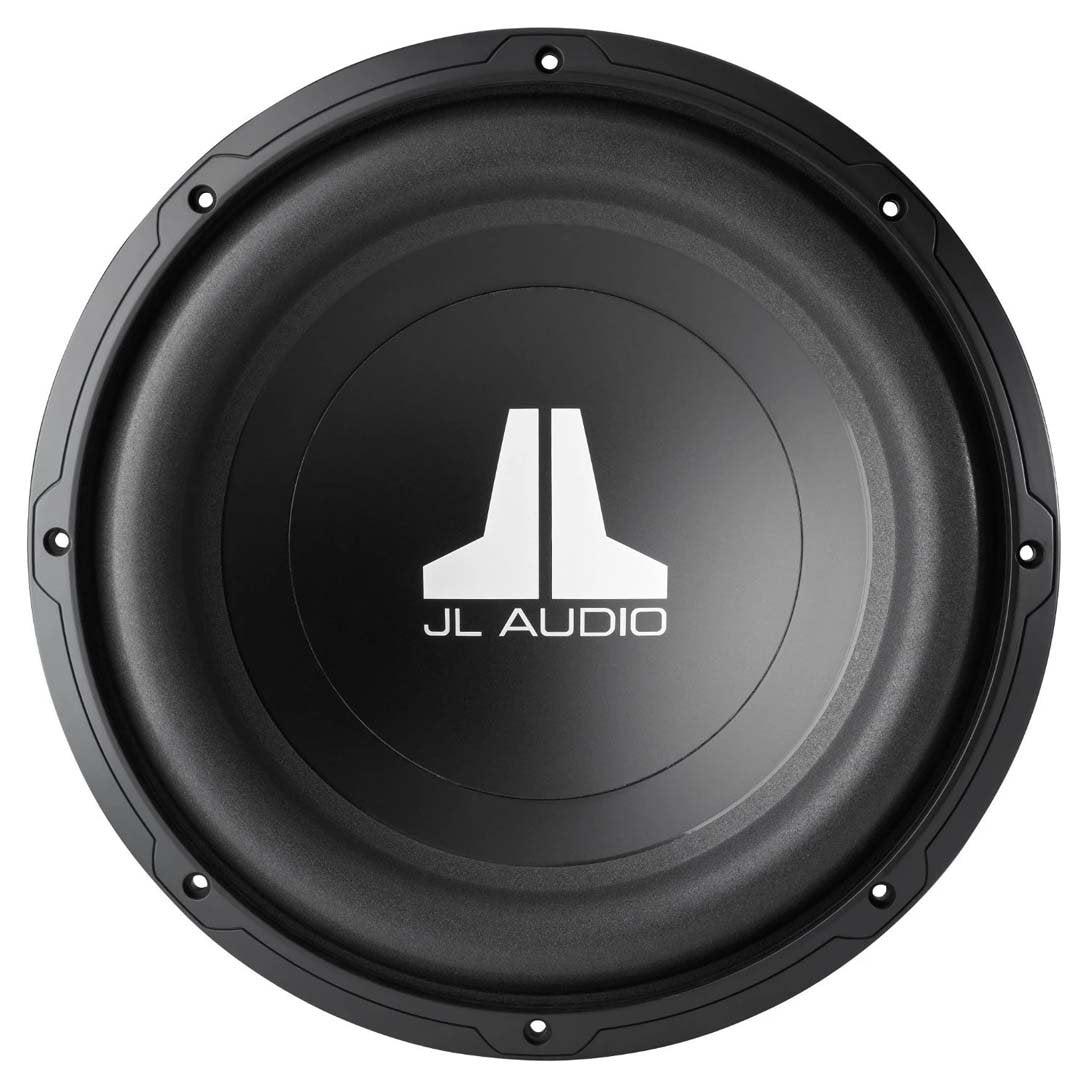

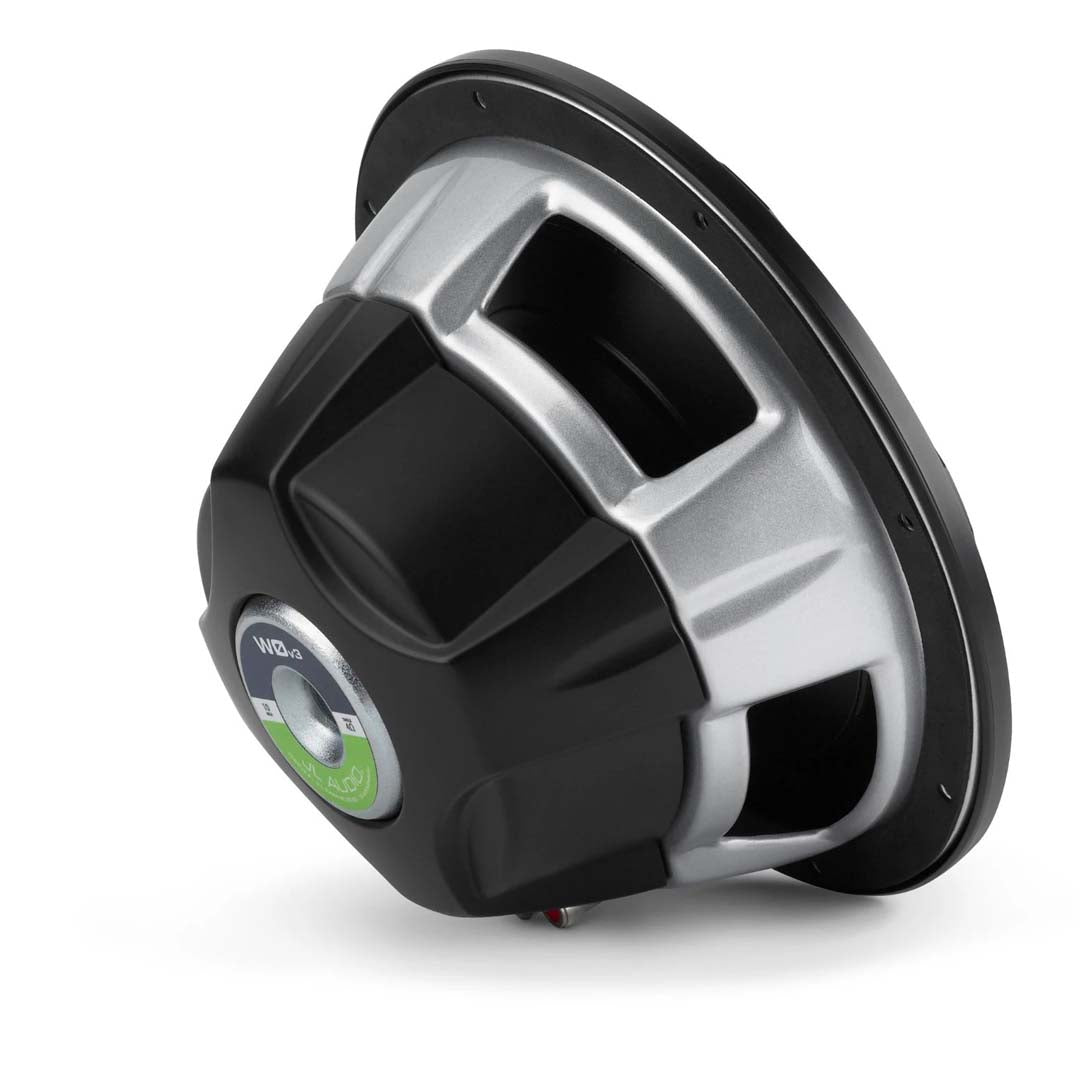

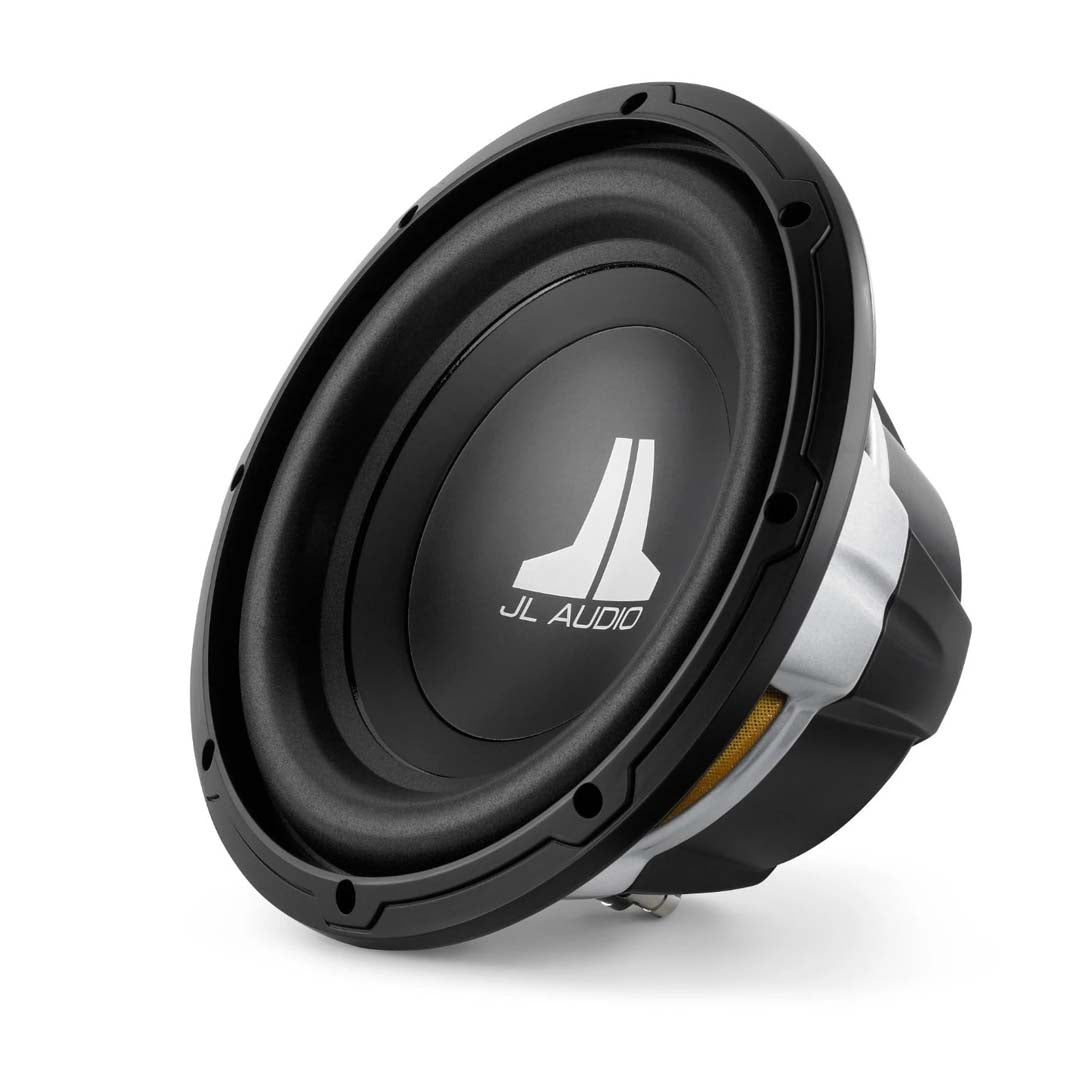

JL Audio 10W0v3-4, W0 Series 10" Single 4-ohm Subwoofer, 300W
The 10W0v3 is a rugged performer with excellent efficiency, excursion capability and linearity. Its overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.
The 10W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
Dynamic Motor Analysis - DMA Optimized Motor
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.
Elevated Frame Cooling (U.S. Patent #6,219,431 & #6,229,902)
JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.
|
|
Size |
10-inch |
|
Voice Coil |
Single |
|
Impedance |
4 ohms |
|
RMS Power Rating (Watts) |
300 |
|
Peak Power Rating (Watts) |
600 |
| Cone Material |
Polypropylene |
| Surround Material |
Foam |
| Free Air |
No |
| Sensitivity |
84.07 dB at 1 Watt |
| Frequency Response |
25-250hz |
|
Top Mount Depth (Inches) |
4 15/16 |
| Bottom Mount Depth (Inches) |
|
| Cutout Diameter (Inches) |
8 13/16 |
| Vas (liters) |
31.01 |
| Fs (Hz) |
32.09 |
| Xmax (millimeters) |
11.4 |
| Warranty |
1 Year |
|
Size |
10-inch |
|
Voice Coil |
Single |
|
Impedance |
4 ohms |
|
RMS Power Rating (Watts) |
300 |
|
Peak Power Rating (Watts) |
600 |
| Cone Material |
Polypropylene |
| Surround Material |
Foam |
| Free Air |
No |
| Sensitivity |
84.07 dB at 1 Watt |
| Frequency Response |
25-250hz |
|
Top Mount Depth (Inches) |
4 15/16 |
| Bottom Mount Depth (Inches) |
|
| Cutout Diameter (Inches) |
8 13/16 |
| Vas (liters) |
31.01 |
| Fs (Hz) |
32.09 |
| Xmax (millimeters) |
11.4 |
| Warranty |
1 Year |
