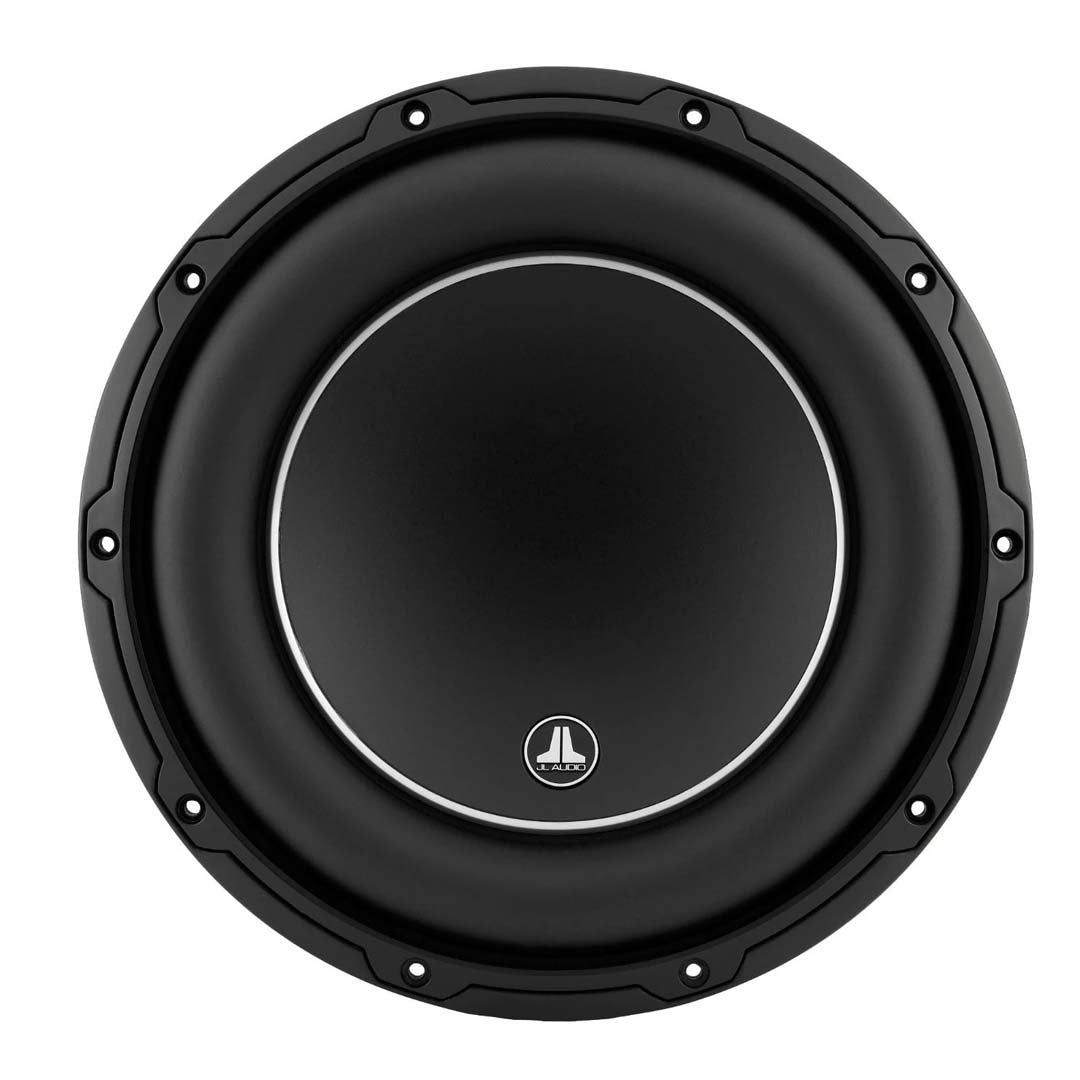

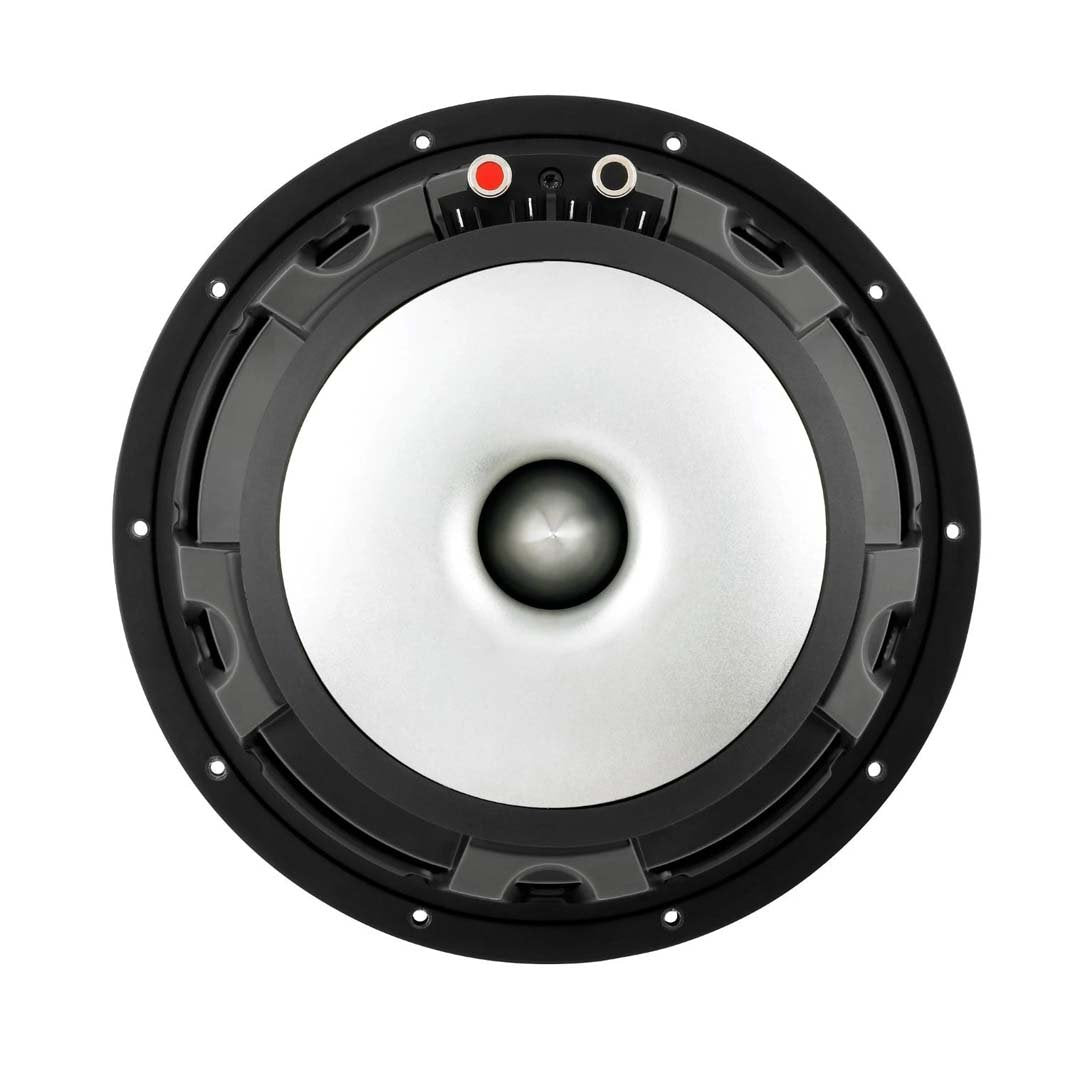

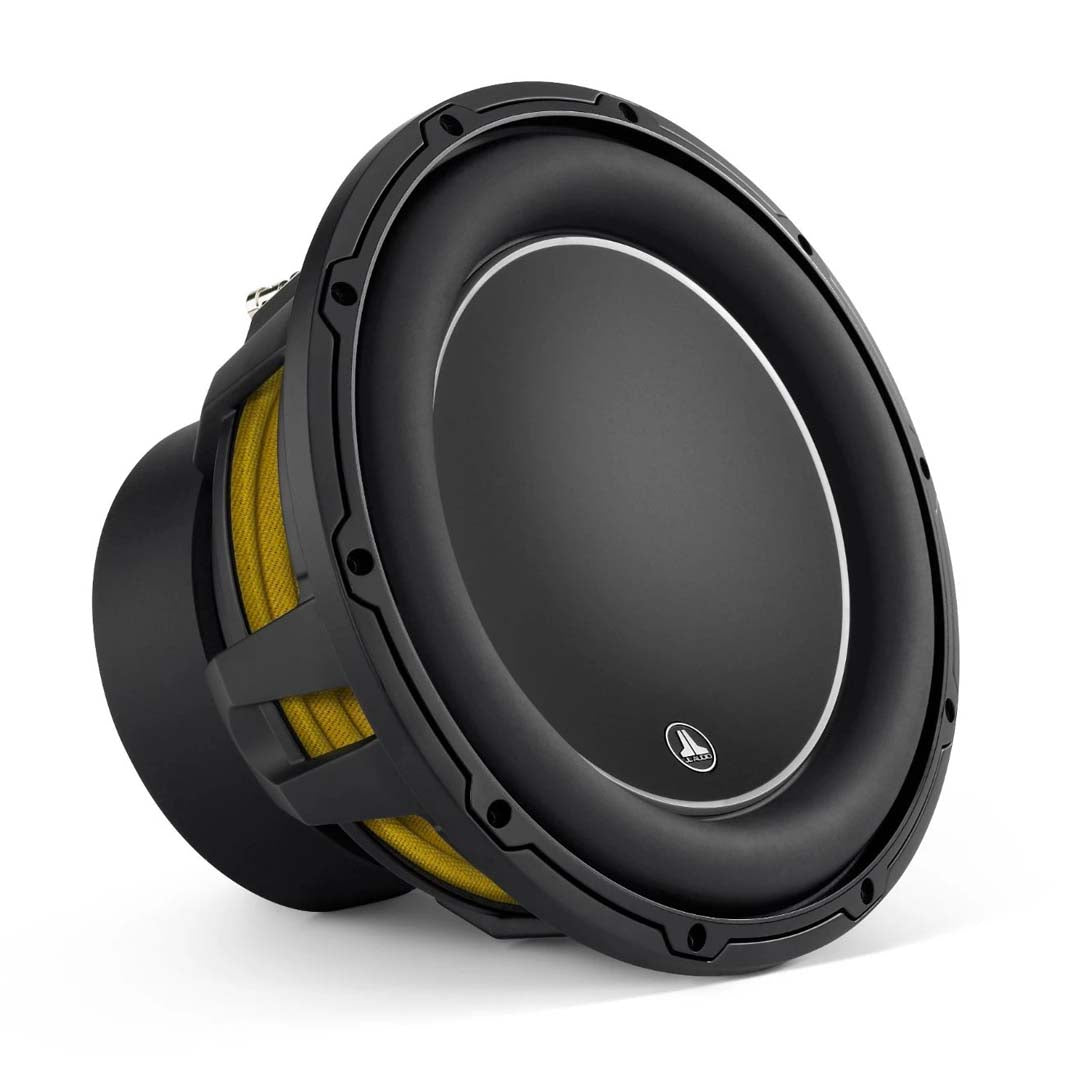

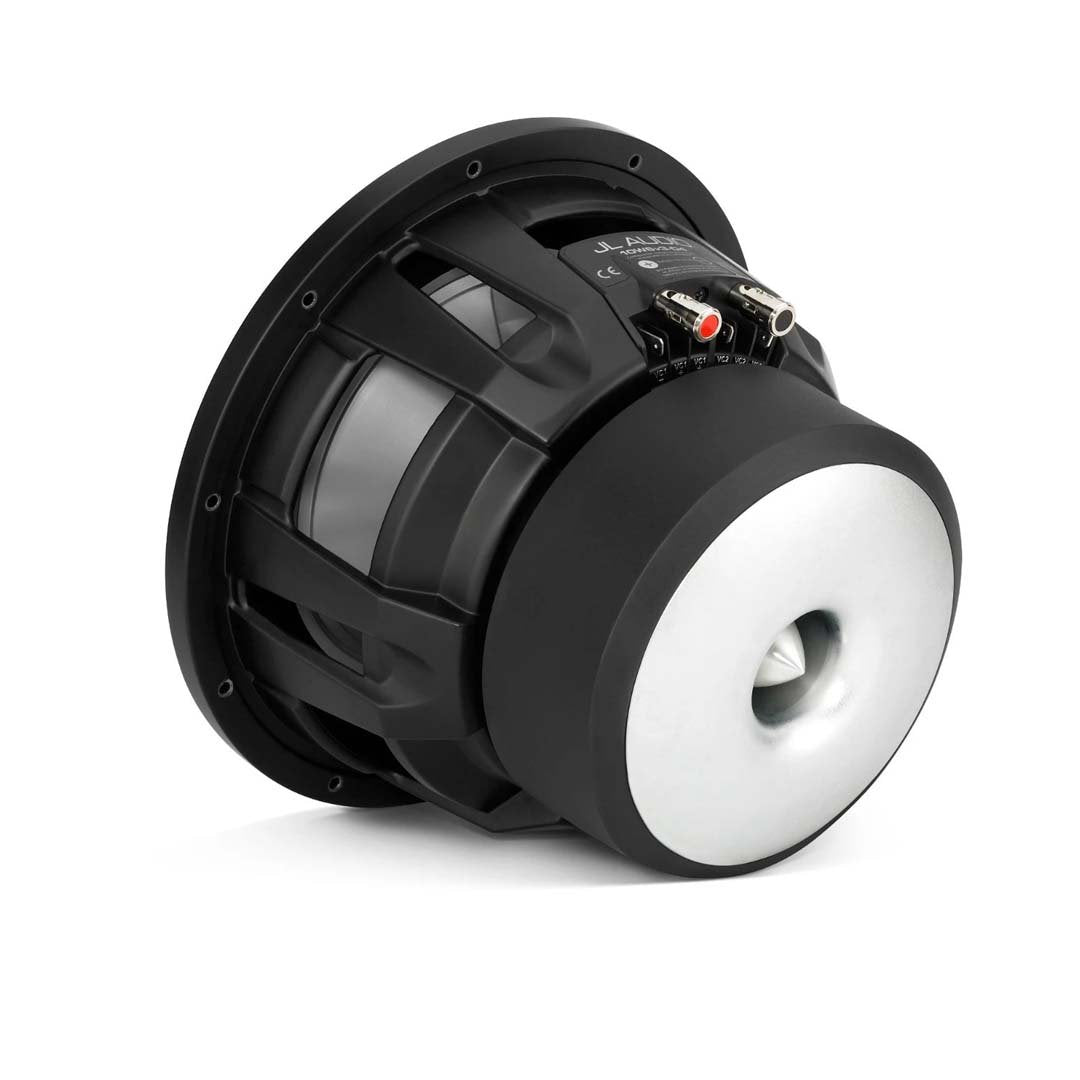

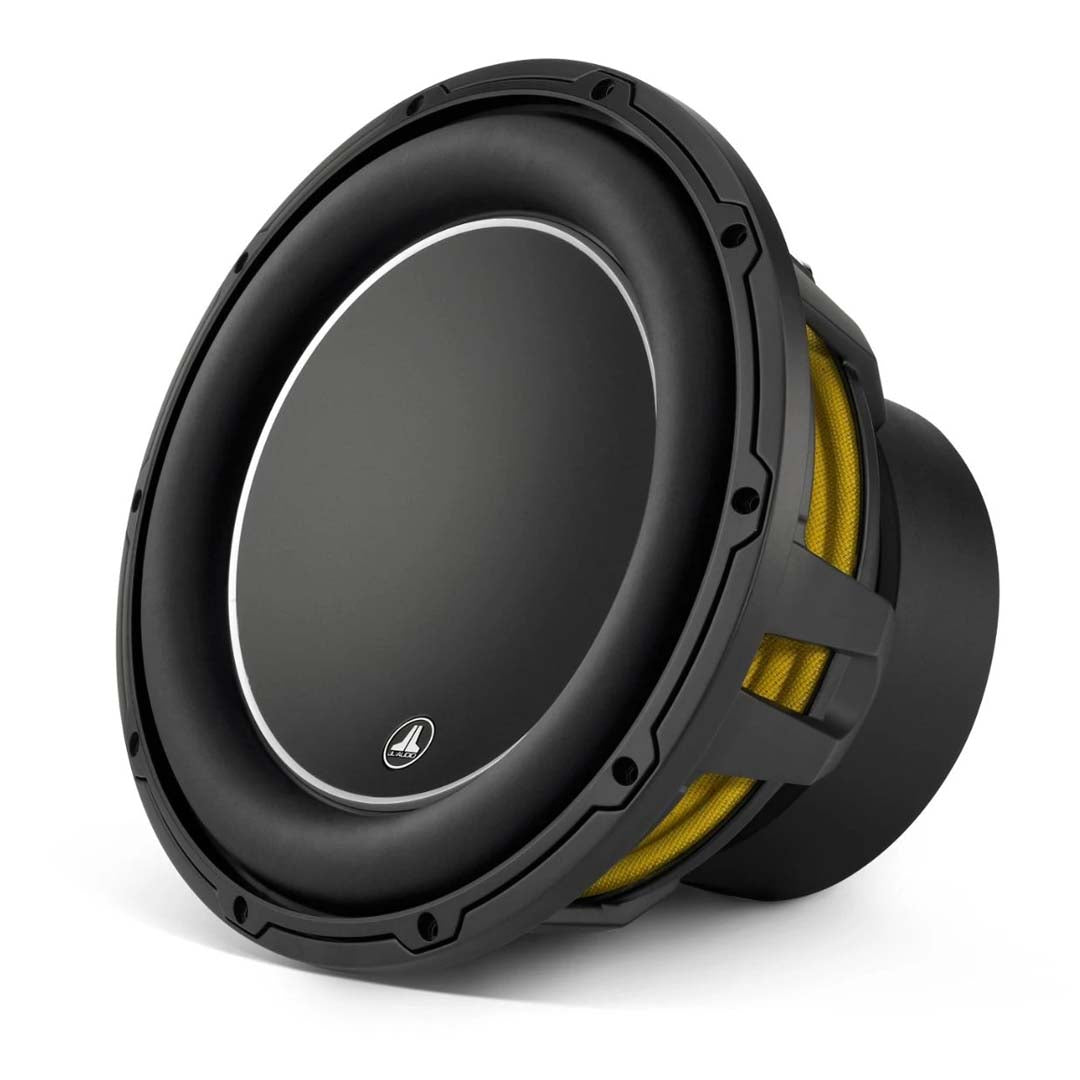

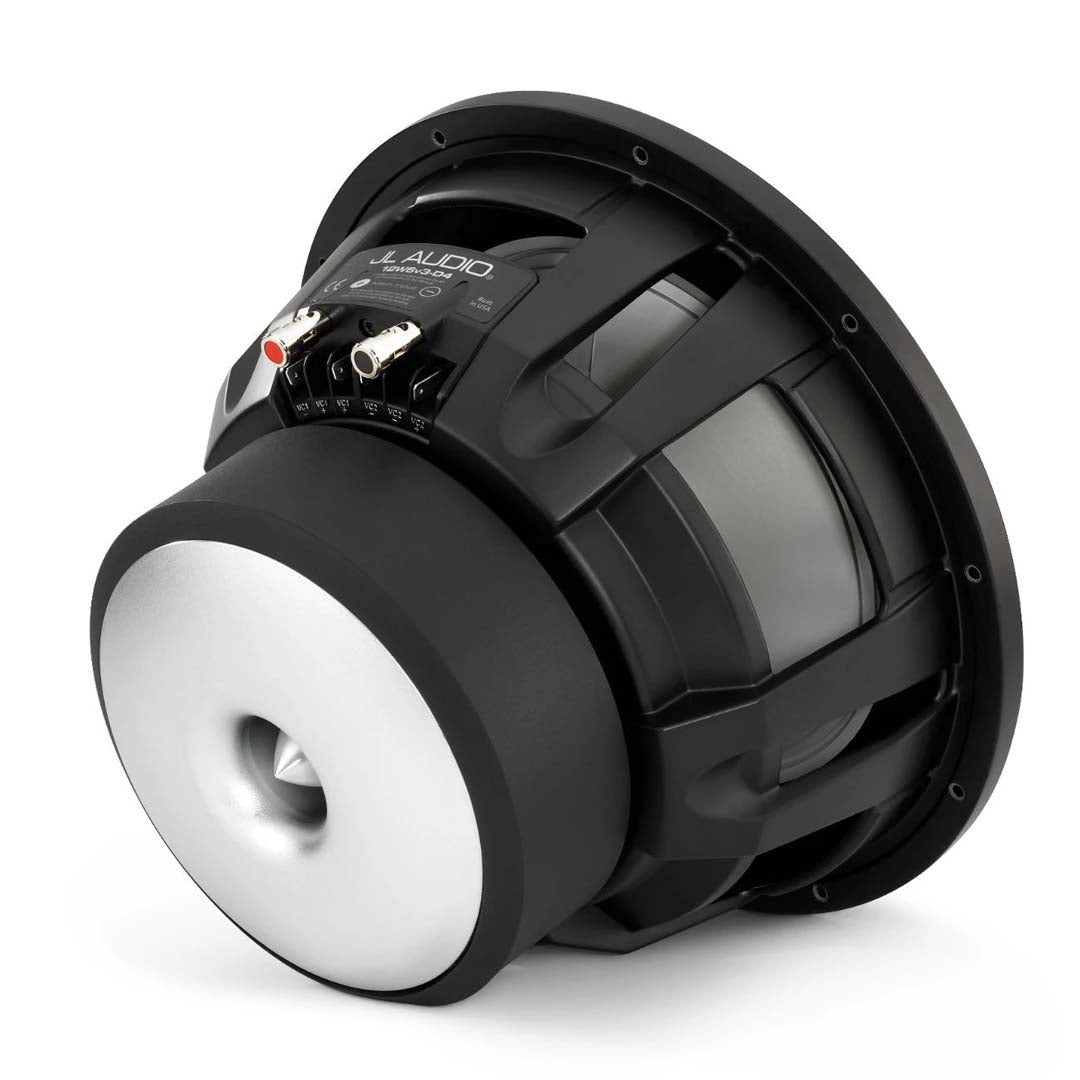

JL Audio 12W6v3-D4, W6 Series 12" Dual 4-Ohm Subwoofer, 600W
If you are seeking intensely powerful sub-bass that compromises nothing in terms of sound quality, the 12W6v3 is your ultimate ally. This highly advanced Subwoofer offers several technologies shared with the flagship W7AE subwoofers to provide powerful advantages in motor linearity and suspension behavior. These combine with a very efficient cooling circuit to deliver reduced distortion and outstanding dynamic balance.
The 12W6v3 is best used with amplifier power in the 200W - 600W range and is optimized to operate in a sealed enclosure with only 1.0 cu. ft. (28.3 l) of air space, or a 1.3 cu. ft (36.8 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
Greater excursion capability and higher power handling distinguish it from our 12W3v3 12-inch Subwoofer, allowing for higher output. Dual 4 Ω voice coils permit deploying the W6v3 as a 2 Ω or 8 Ω driver.
Dynamic Motor Analysis - DMA Optimized Motor
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.
Elevated Frame Cooling (U.S. Patent #6,219,431 & #6,229,902)
JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.
Floating Cone Attach Method - FCAM™ (U.S. Patent #6,501,844)
This assembly technique, conceived by JL Audio, ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.
Pole-Vent Airflow Control - PVAC (U.S. Patent #6,535,613)
In high-powered Subwoofers, thermal management is essential.

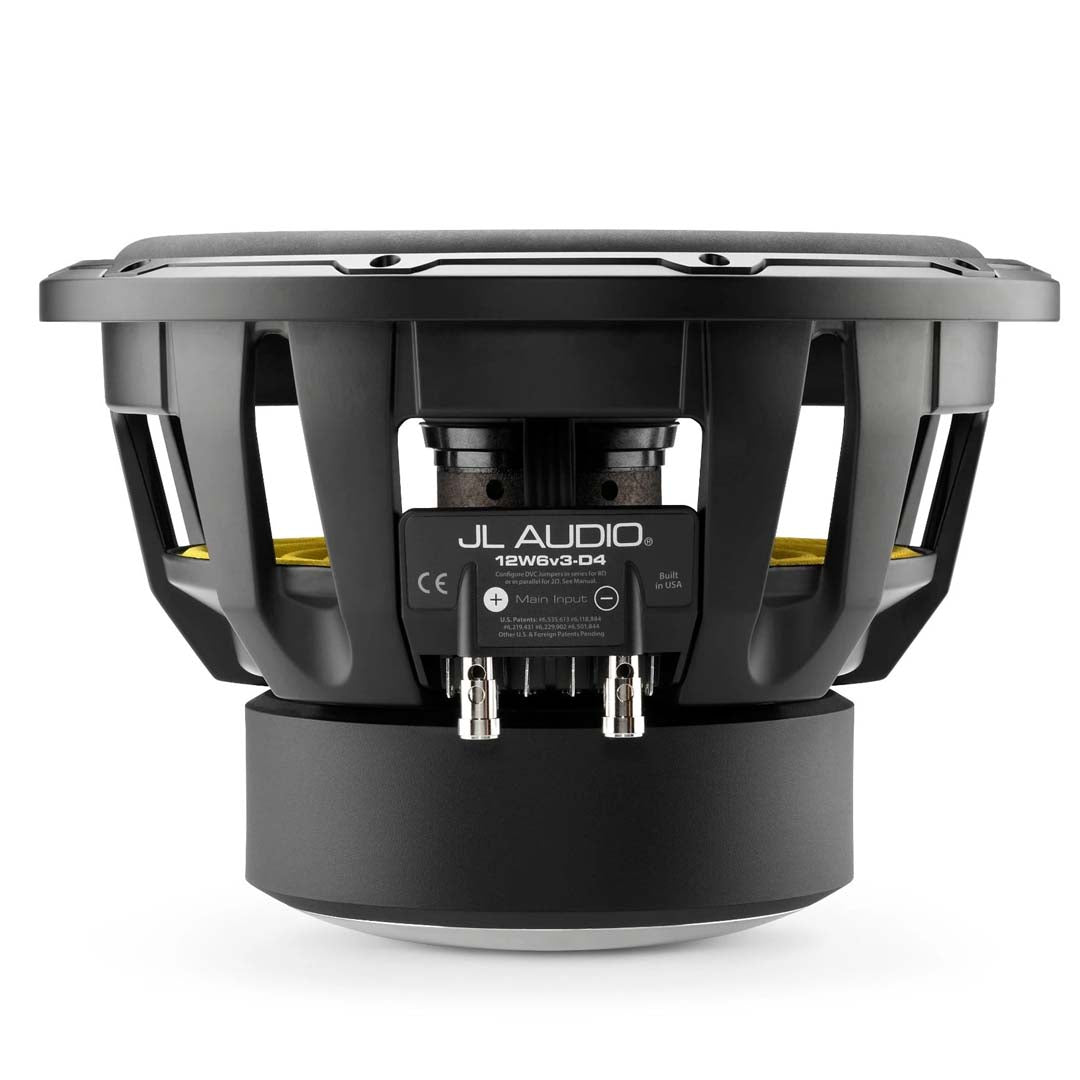

W6v2/W6v3 Terminal Jumper System
Information on connecting the dual voice coils using the Terminal Jumper System
Customizable Trim Ring
This removable ring can be painted to match the installation theme and directly receives JL Audio grille mesh inserts (sold separately).
Engineered Lead-Wire System (U.S. Patent #7,356,157)
Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.
Built in U.S.A. with Global Components
JL Audio's Miramar, Florida loudspeaker production facility is one of the most advanced in the world.
|
|
Size |
12-inch |
|
Voice Coil |
DVC |
|
Impedance |
4 ohms |
|
RMS Power Rating (Watts) |
600 |
|
Peak Power Rating (Watts) |
1200 |
| Cone Material |
Mineral-filled IMPP |
| Surround Material |
Rubber |
| Free Air |
No |
| Sensitivity |
85.4 dB at 1 Watt |
| Frequency Response |
20-200hz |
|
Top Mount Depth (Inches) |
7 9/16 |
| Bottom Mount Depth (Inches) |
|
| Cutout Diameter (Inches) |
11 |
| Vas (liters) |
54.37 |
| Fs (Hz) |
26.919 |
| Xmax (millimeters) |
19 |
| Warranty |
1 Year |
|
Size |
12-inch |
|
Voice Coil |
DVC |
|
Impedance |
4 ohms |
|
RMS Power Rating (Watts) |
600 |
|
Peak Power Rating (Watts) |
1200 |
| Cone Material |
Mineral-filled IMPP |
| Surround Material |
Rubber |
| Free Air |
No |
| Sensitivity |
85.4 dB at 1 Watt |
| Frequency Response |
20-200hz |
|
Top Mount Depth (Inches) |
7 9/16 |
| Bottom Mount Depth (Inches) |
|
| Cutout Diameter (Inches) |
11 |
| Vas (liters) |
54.37 |
| Fs (Hz) |
26.919 |
| Xmax (millimeters) |
19 |
| Warranty |
1 Year |
