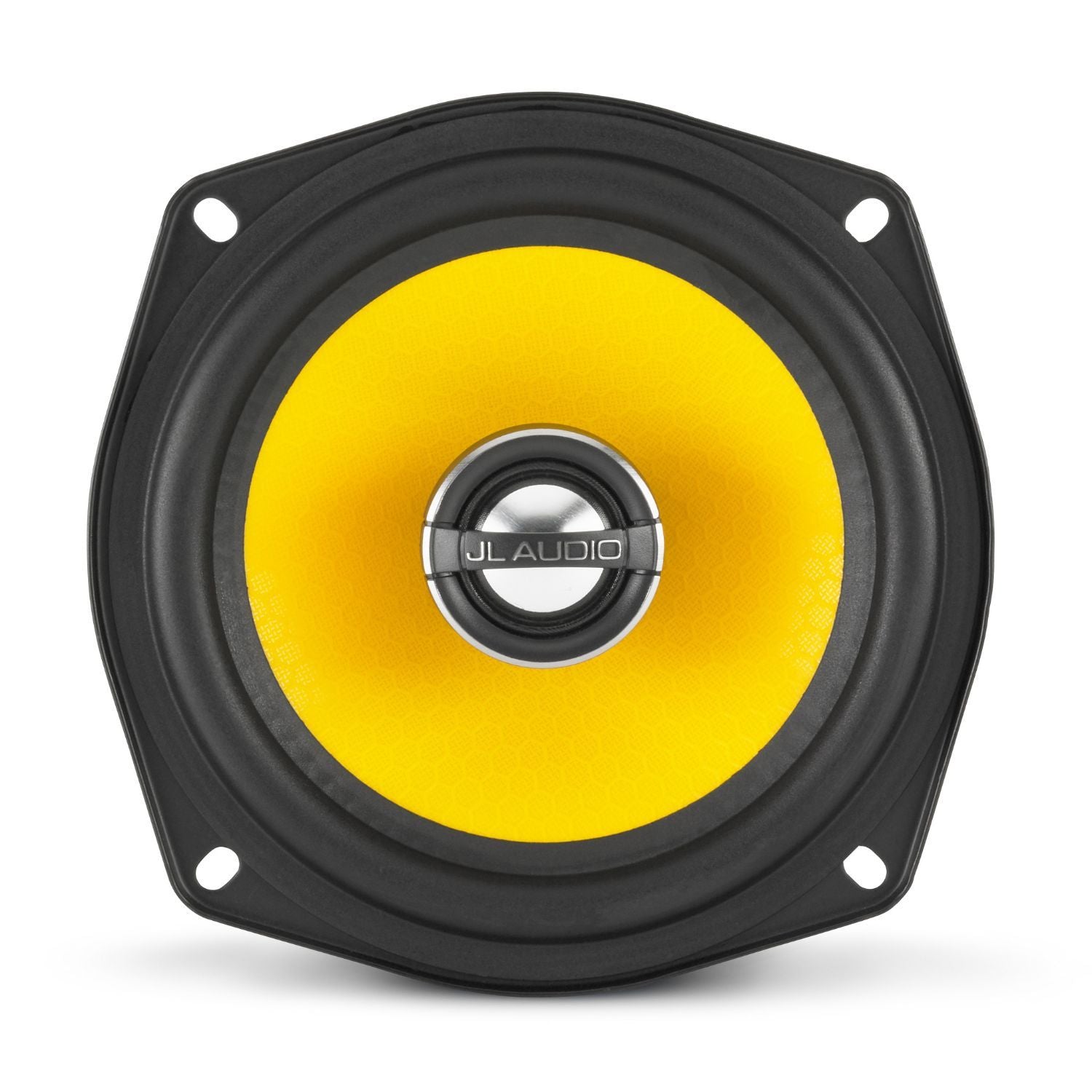

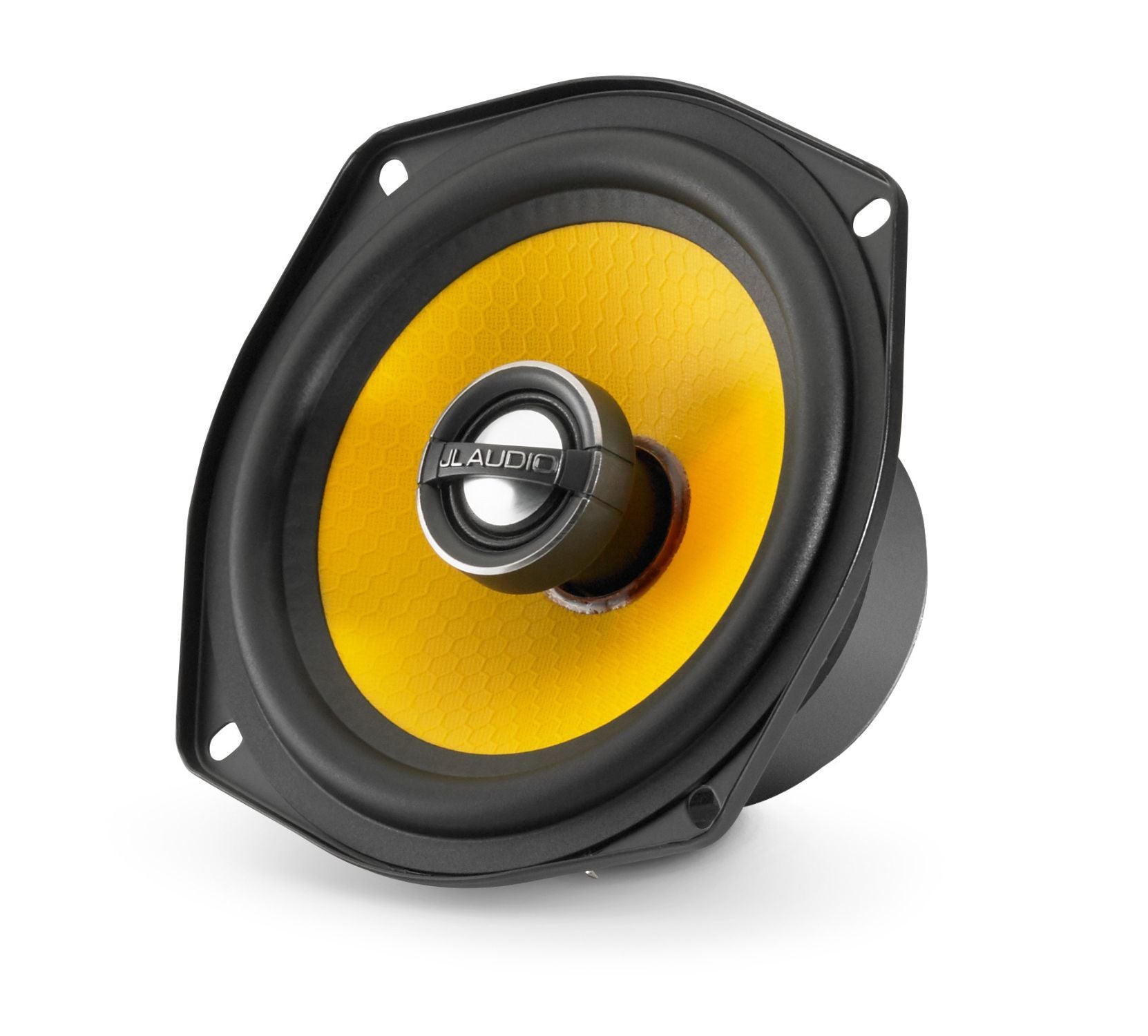

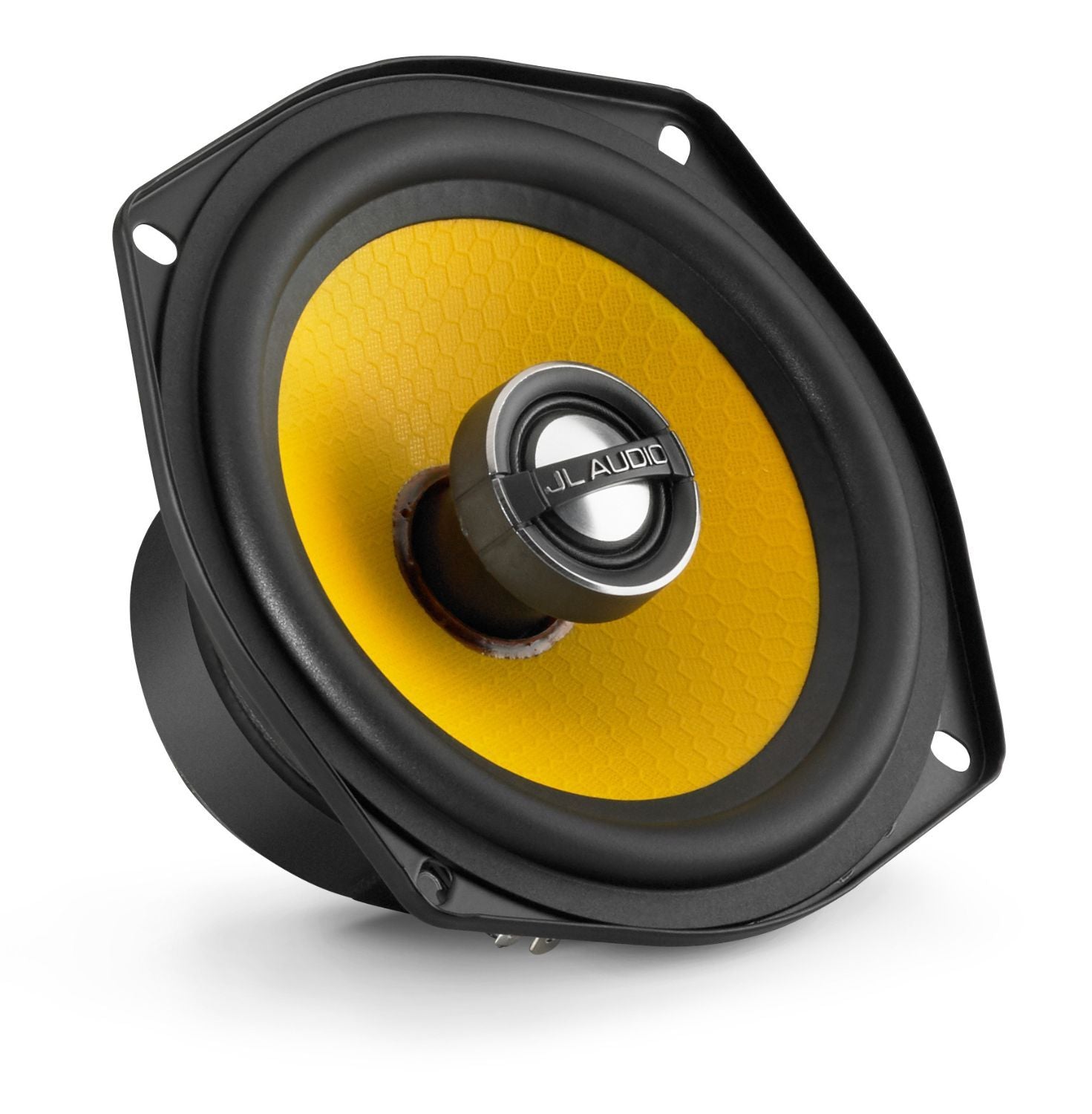

JL Audio C1-525X, C1 Series 5.25" 2-Way Coaxial Speakers, 225W
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.

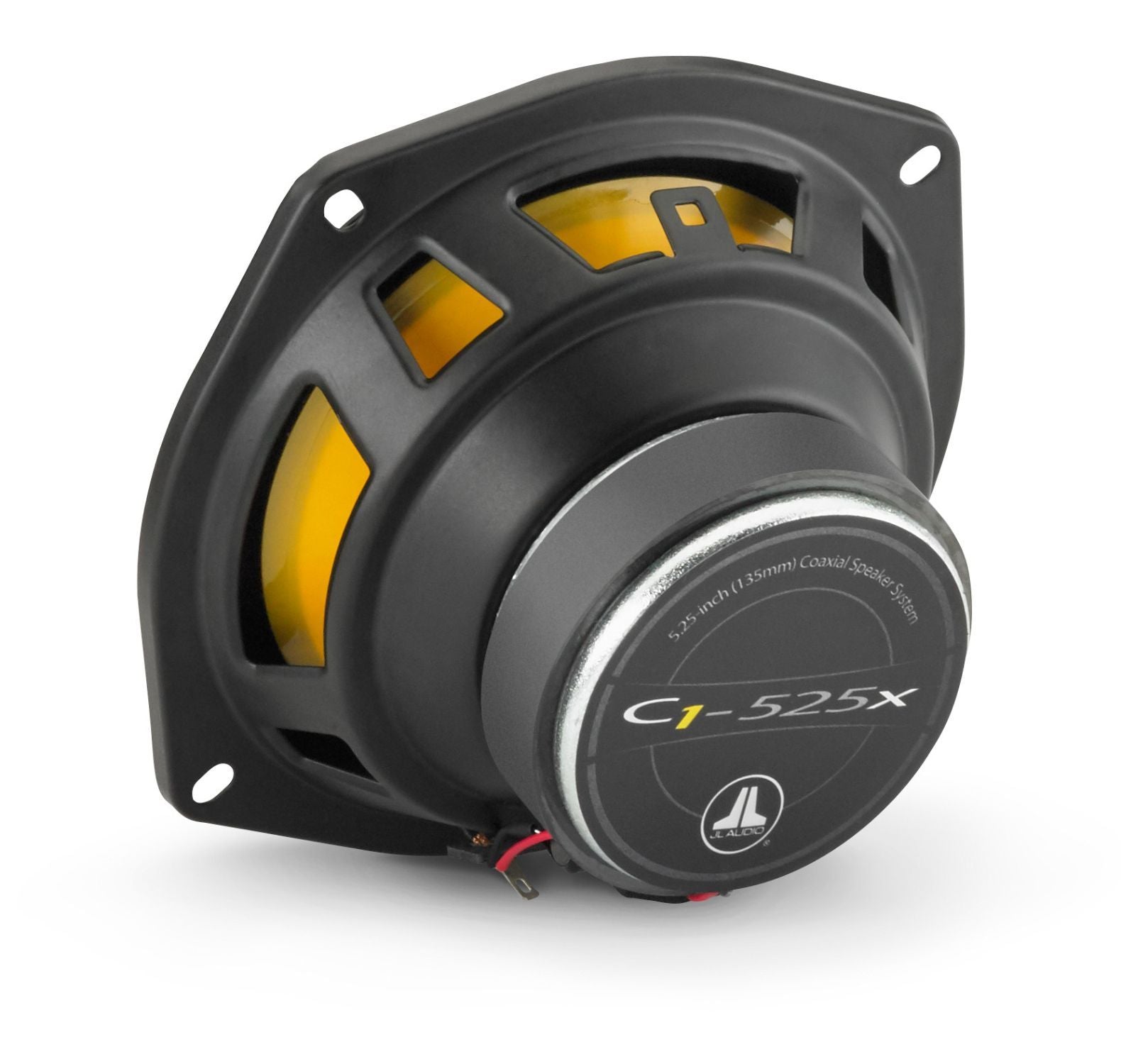

C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-525x is a proprietary, stamped, steel 5.25-inch (130 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!

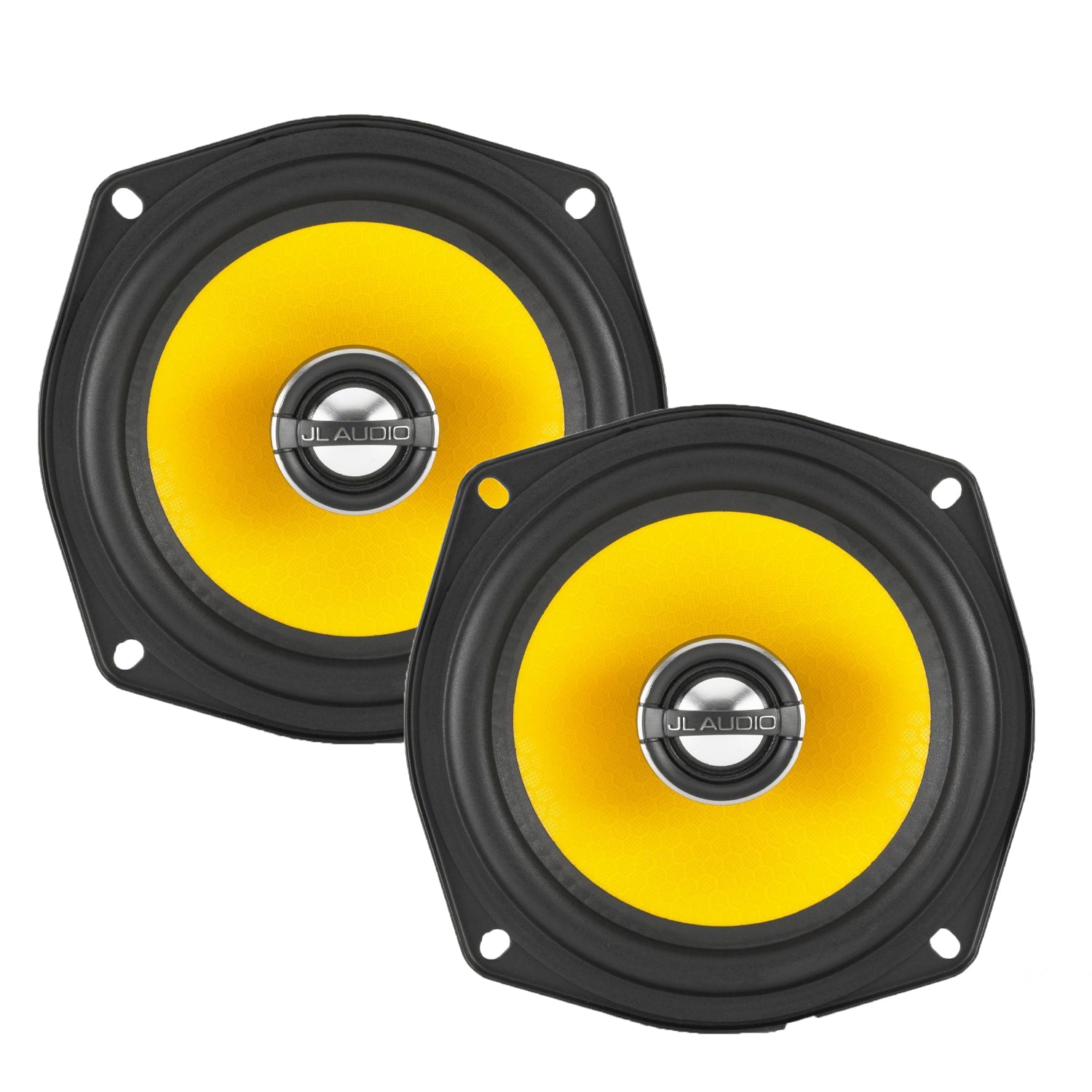

Sold as a pair. Grilles not available.
Dynamic Motor Analysis - DMA Optimized Motor
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.
Aluminum Dome Tweeter
Lightweight Aluminum Dome tweeters deliver sparkling high-frequency detail that extends well beyond the frequency response of typical human hearing.
|
Speaker Size |
4" |
|
Design |
2-Way |
|
Tweeter Design |
3/4" Edge-Driven Dome |
|
Impedance (Ohms) |
4 |
|
Tweeter Composition |
Aluminum |
| Woofer Composition |
Mineral-Filled injection-Molded |
| Woofer Surround |
Rubber |
| Sensitivity (dB) |
89dB |
| Frequency Response (Hz) |
54-24k Hz |
| RMS Power Rating (Watts) |
50 |
| Peak Power Rating (Watts) |
225 |
| Top-mount Depth (Inches) |
2 7/16 |
| Bottom-mount Depth (inches) |
|
| Cutout Diameter (inches) |
4 5/8 |
| Grilles Included |
No |
| Warranty |
1-Year |
|
Speaker Size |
4" |
|
Design |
2-Way |
|
Tweeter Design |
3/4" Edge-Driven Dome |
|
Impedance (Ohms) |
4 |
|
Tweeter Composition |
Aluminum |
| Woofer Composition |
Mineral-Filled injection-Molded |
| Woofer Surround |
Rubber |
| Sensitivity (dB) |
89dB |
| Frequency Response (Hz) |
54-24k Hz |
| RMS Power Rating (Watts) |
50 |
| Peak Power Rating (Watts) |
225 |
| Top-mount Depth (Inches) |
2 7/16 |
| Bottom-mount Depth (inches) |
|
| Cutout Diameter (inches) |
4 5/8 |
| Grilles Included |
No |
| Warranty |
1-Year |
