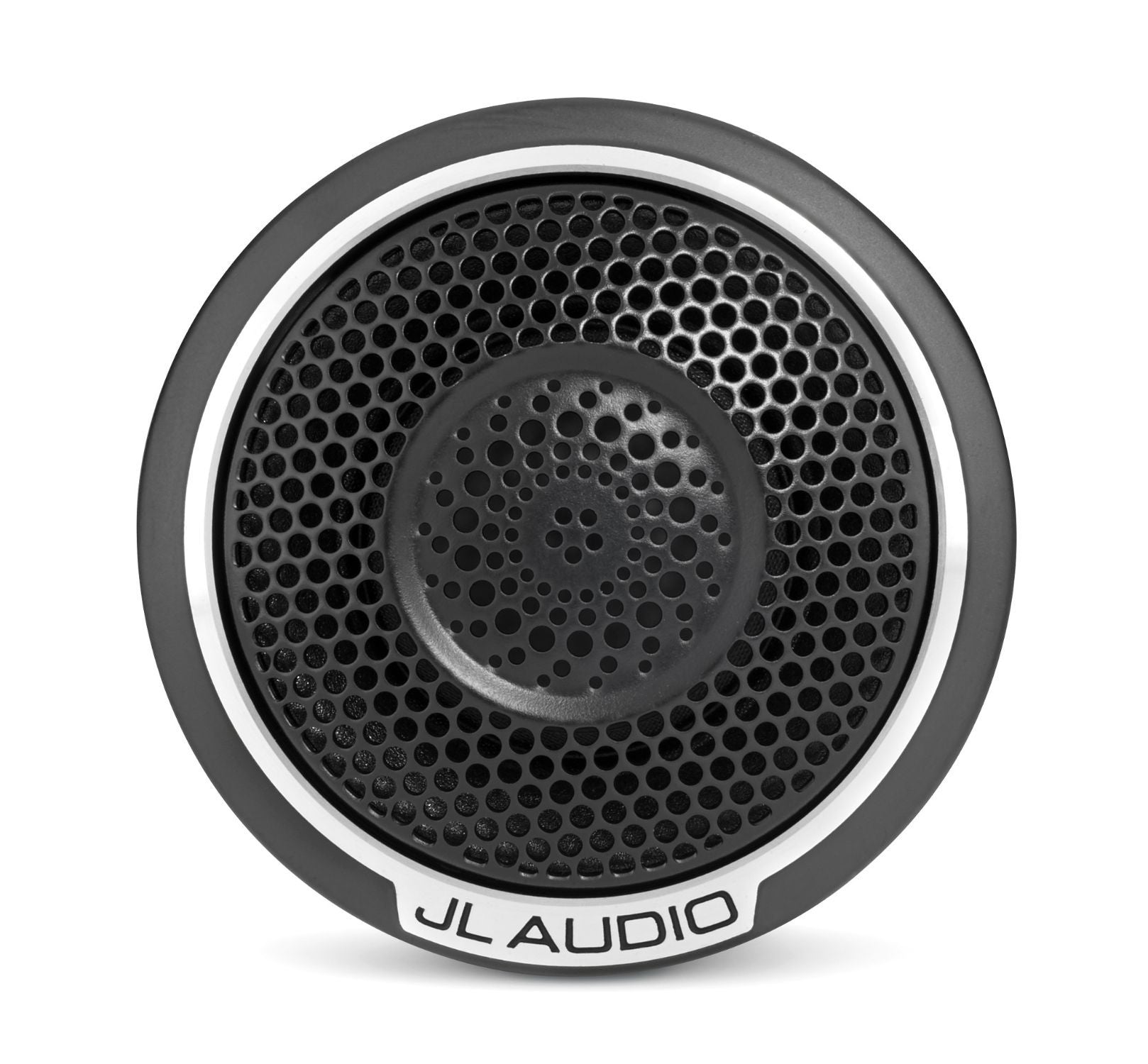

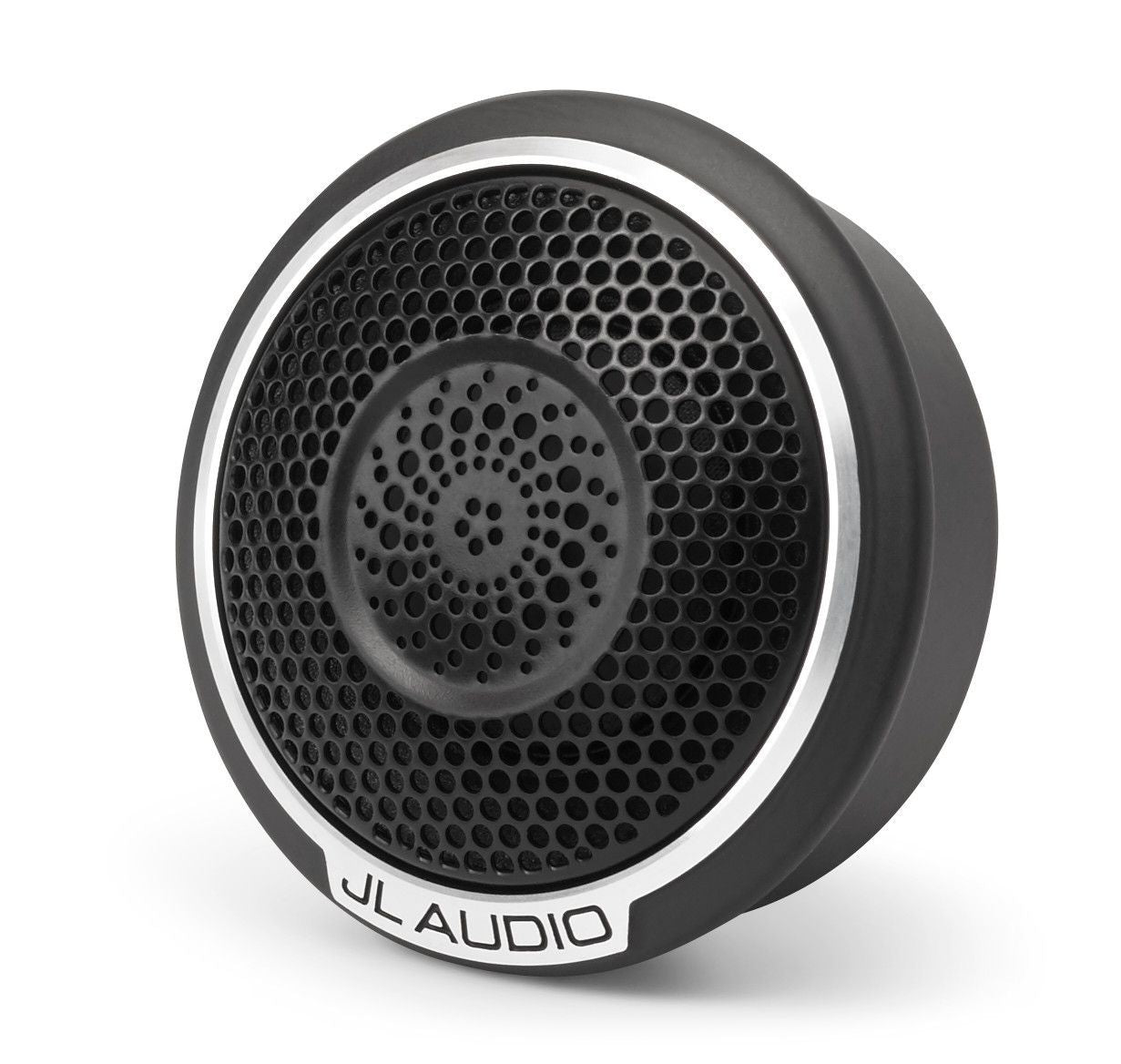

JL Audio C7-100ct, C7 Series 1" Component Tweeter (Single), 200W
C7 is the pinnacle of JL Audio automotive loudspeaker design, benefiting from our most advanced development tools and a complete commitment to precision manufacturing.
The C7-100ct component tweeter is designed to deliver unparalleled high-frequency performance. Utilizing a corundum ceramic-coated aluminum alloy diaphragm suspended via a treated silk, s-roll surround, it provides spectacularly detailed reproduction of treble frequencies with outstanding off-axis response. Distortion and non-linearities have been minimized through critical optimization of dynamic motor and suspension behaviors.
Passive crossover networks are not included with C7 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning DSP, such as the JL Audio TwK™ 88 or D8, or a VXi amplifier with built-in DSP, with a dedicated amplifier channel for each C7 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance.
Dynamic Motor Analysis - DMA Optimized Motor
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.
Elevated Frame Cooling (U.S. Patent #6,219,431 & #6,229,902)
JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.
|
|
Speaker Size |
Tweeters |
|
Design |
1-Way |
|
Tweeter Design |
1" Edge-Driven Dome |
|
Impedance (Ohms) |
4 |
|
Tweeter Composition |
Corundum/Aluminum Alloy |
| Woofer Composition |
|
| Woofer Surround | |
| Sensitivity (dB) |
86.5dB |
| Frequency Response (Hz) |
3000-30k Hz |
| RMS Power Rating (Watts) |
100 |
| Peak Power Rating (Watts) |
200 |
| Top-mount Depth (Inches) |
7/8 |
| Bottom-mount Depth (inches) |
|
| Cutout Diameter (inches) |
1 7/8 |
| Grilles Included |
Yes |
| Warranty |
1-Year |
|
Speaker Size |
Tweeters |
|
Design |
1-Way |
|
Tweeter Design |
1" Edge-Driven Dome |
|
Impedance (Ohms) |
4 |
|
Tweeter Composition |
Corundum/Aluminum Alloy |
| Woofer Composition |
|
| Woofer Surround | |
| Sensitivity (dB) |
86.5dB |
| Frequency Response (Hz) |
3000-30k Hz |
| RMS Power Rating (Watts) |
100 |
| Peak Power Rating (Watts) |
200 |
| Top-mount Depth (Inches) |
7/8 |
| Bottom-mount Depth (inches) |
|
| Cutout Diameter (inches) |
1 7/8 |
| Grilles Included |
Yes |
| Warranty |
1-Year |
