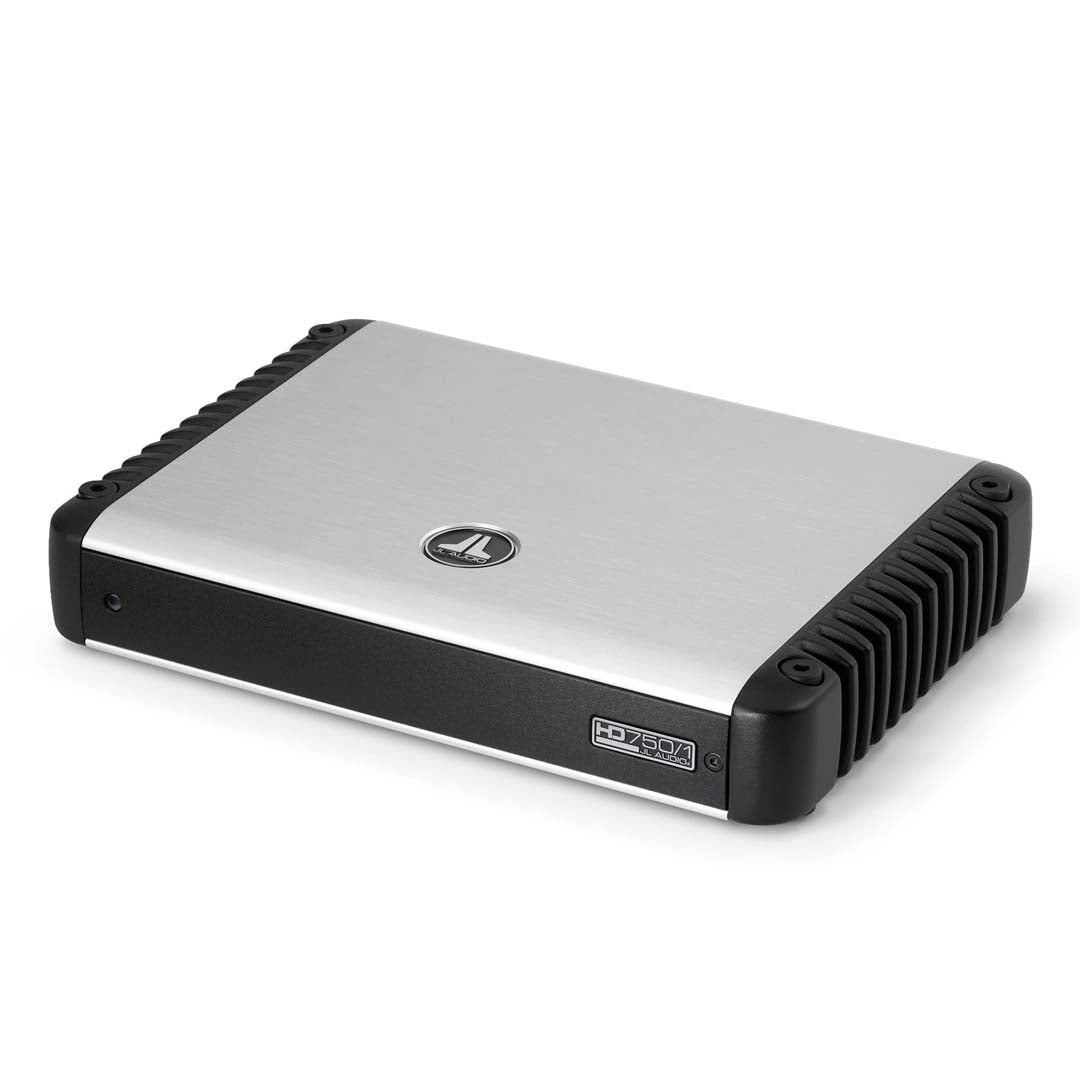

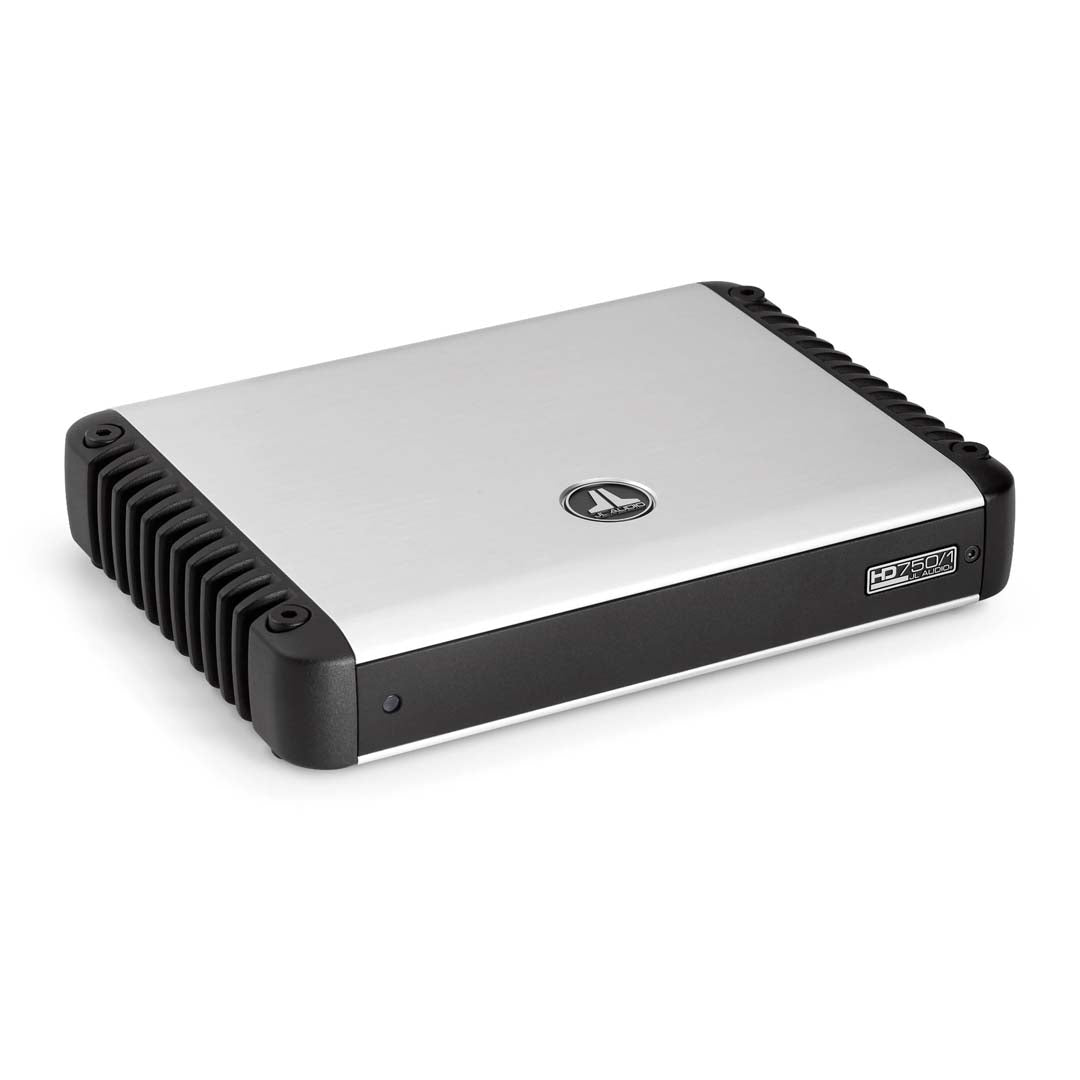

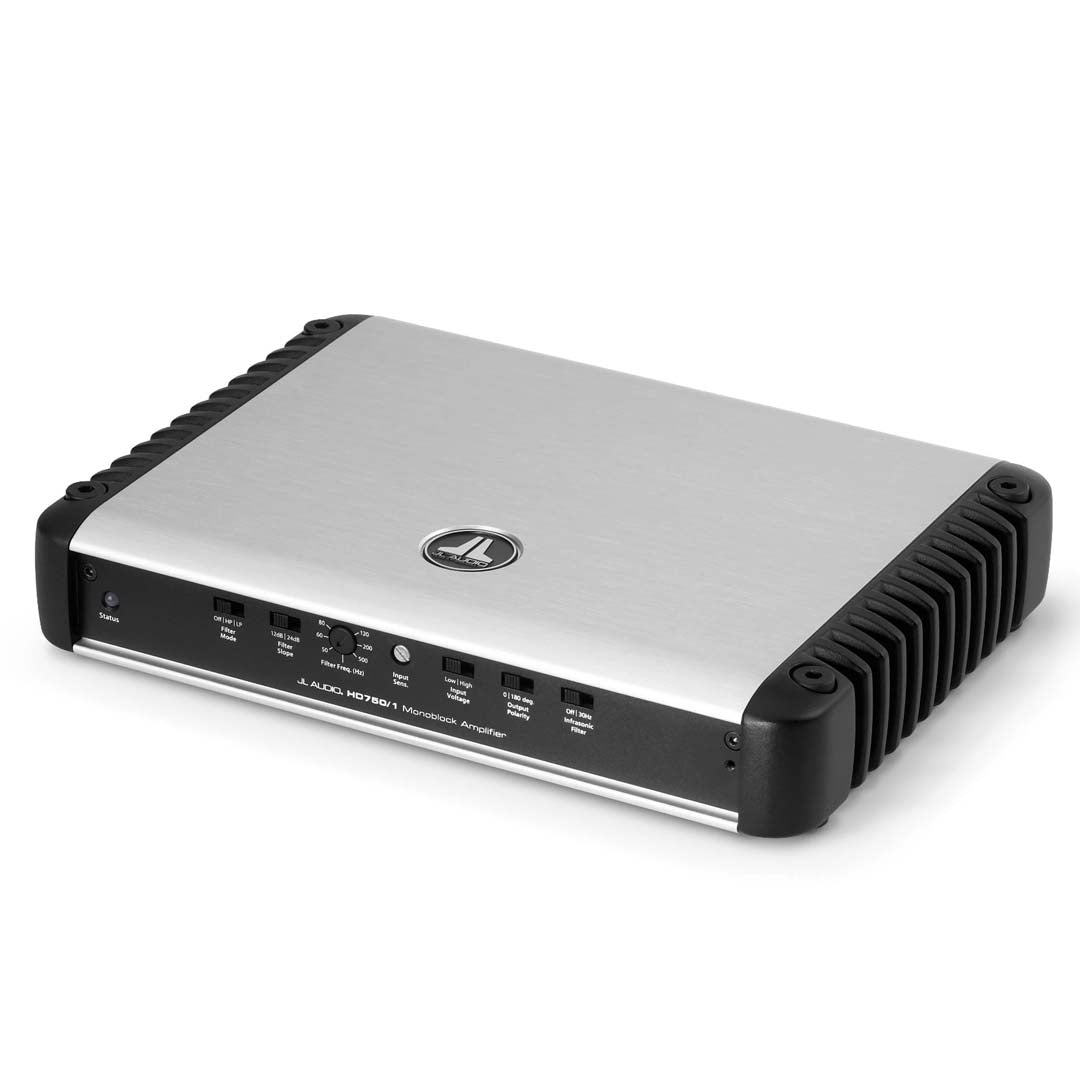

JL Audio HD750/1, HD Series Class D Monoblock Amplifier, 750W
This ultra-compact monoblock amplifier employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 750 W of clean power into any impedance between 1.5 and 4 Ω, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.
While targeted primarily to subwoofer applications, the HD750/1 is a wide-range amplifier and can also be used to drive high-performance mid-range speaker systems.
This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.
Single Cycle Control™
High-Fidelity, full-range Class D is a reality.
R.I.P.S. – Regulated, Intelligent Power Supply
The remarkable R.I.P.S. System ensures consistent power delivery over a wide range of battery voltages and load impedances.
Advanced Rollback Protection
JL Audio's exclusive Advanced Rollback Protection circuit monitors the amplifier's thermal condition and adjusts amplifier operation to eliminate annoying amplifier shut-down events.
RealSink™
Vertical, cast alloy fins effectively dissipate heat, without resorting to noisy fan-cooling.
HD Mounting Options
Two mounting options plus a space-saving stacking feature ease installation.
Differential-Balanced Inputs
JL Audio’s Differential-Balanced Inputs are engineered to combat induced cable noise, which is a common problem in car and marine audio installations. This technology allows for the use of conventional RCA cables, while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.
|
|
Number of Channels |
1 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
750 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
750 x 1 |
| RMS Power Rating (Watts x Channels) - 1.5 Ohm | 750 x 1 |
| RMS Power Rating - Bridged 3-8 Ohms | N/A |
| Minimum Impedance Unbridged (Ohms) |
1.5 |
| Minimum Impedance Bridged (Ohms) |
N/A |
| THD at Rated RMS Power |
0.03% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
N/A |
| High Pass Crossover Frequency (Hz) |
N/A |
| Low Pass Crossover Frequency (Hz) |
50-500hz |
| Signal-to-Noise Ratio |
111dB |
| Bass Boost |
0-15dB |
| Bass Remote Included |
No |
| Fuse Rating | 60A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 Gauge |
| Warranty | 1 Year |
|
Number of Channels |
1 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
750 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
750 x 1 |
| RMS Power Rating (Watts x Channels) - 1.5 Ohm | 750 x 1 |
| RMS Power Rating - Bridged 3-8 Ohms | N/A |
| Minimum Impedance Unbridged (Ohms) |
1.5 |
| Minimum Impedance Bridged (Ohms) |
N/A |
| THD at Rated RMS Power |
0.03% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
N/A |
| High Pass Crossover Frequency (Hz) |
N/A |
| Low Pass Crossover Frequency (Hz) |
50-500hz |
| Signal-to-Noise Ratio |
111dB |
| Bass Boost |
0-15dB |
| Bass Remote Included |
No |
| Fuse Rating | 60A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 Gauge |
| Warranty | 1 Year |
