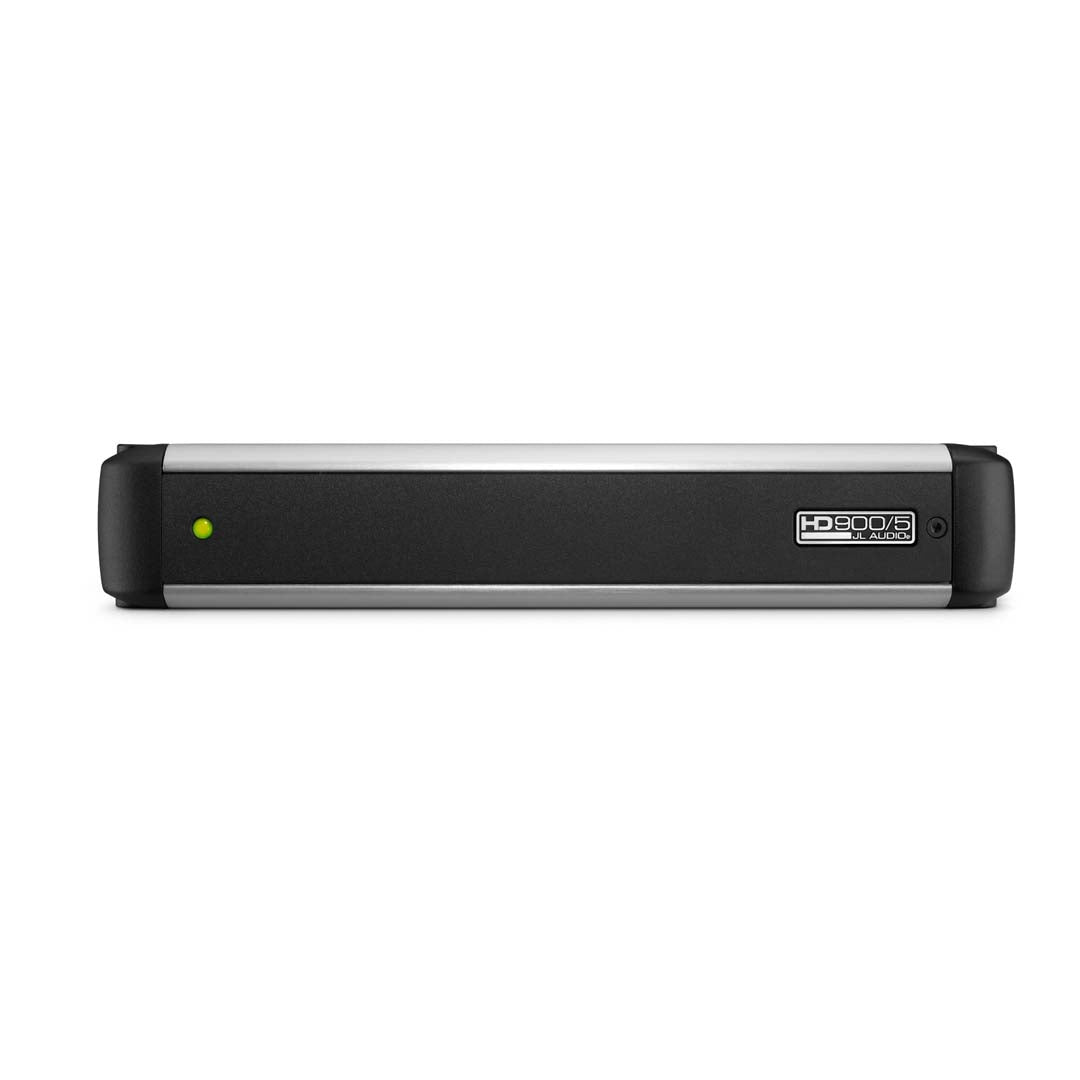

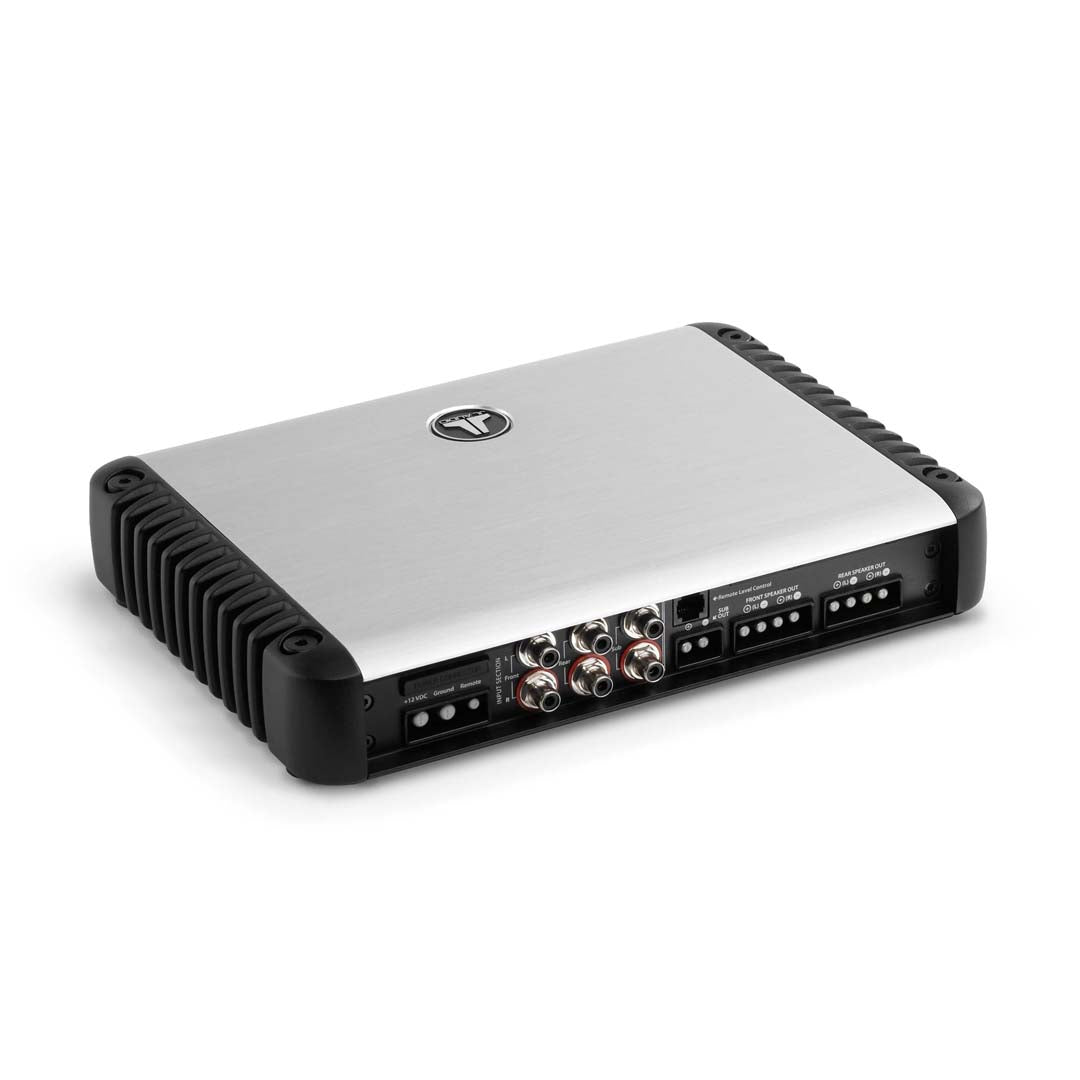

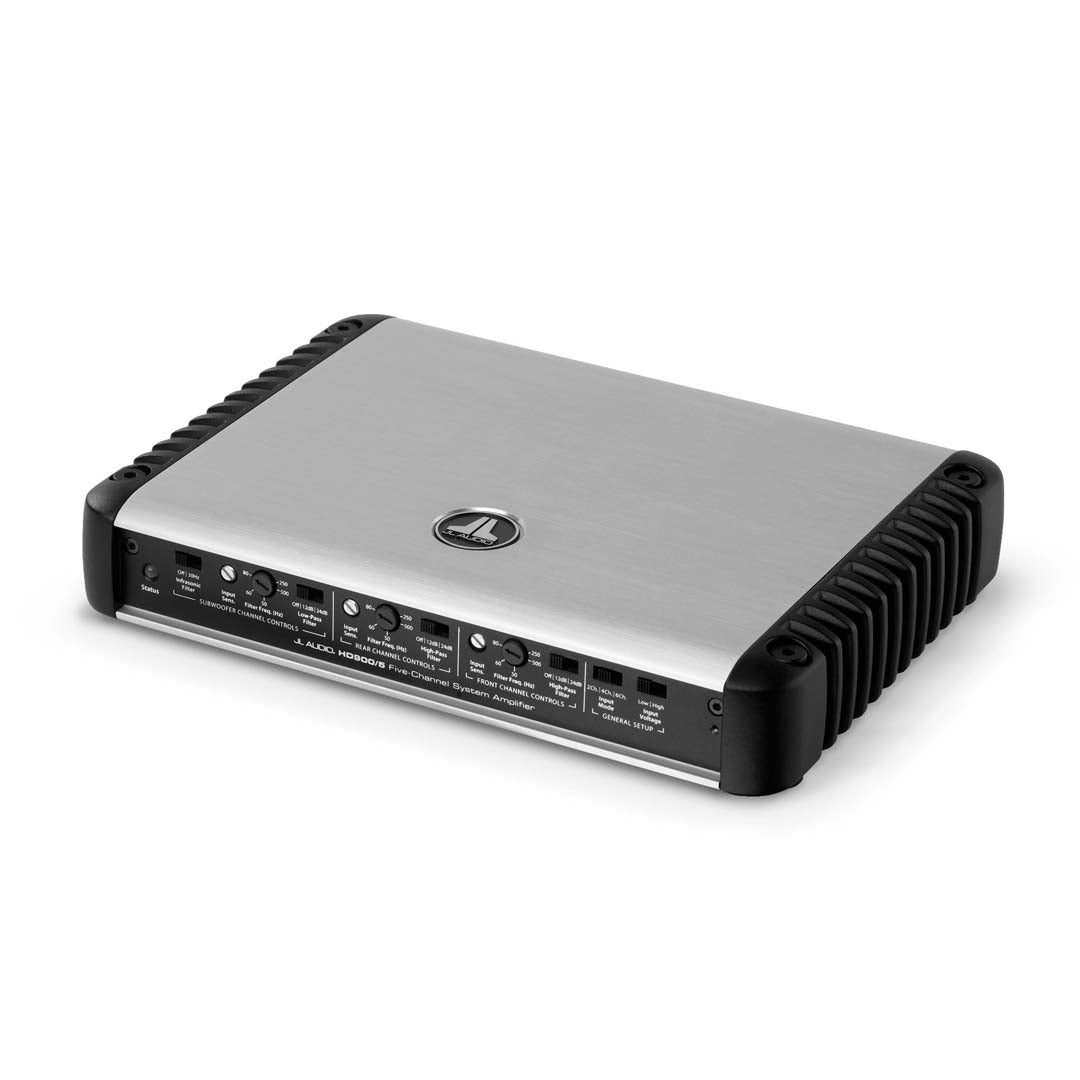

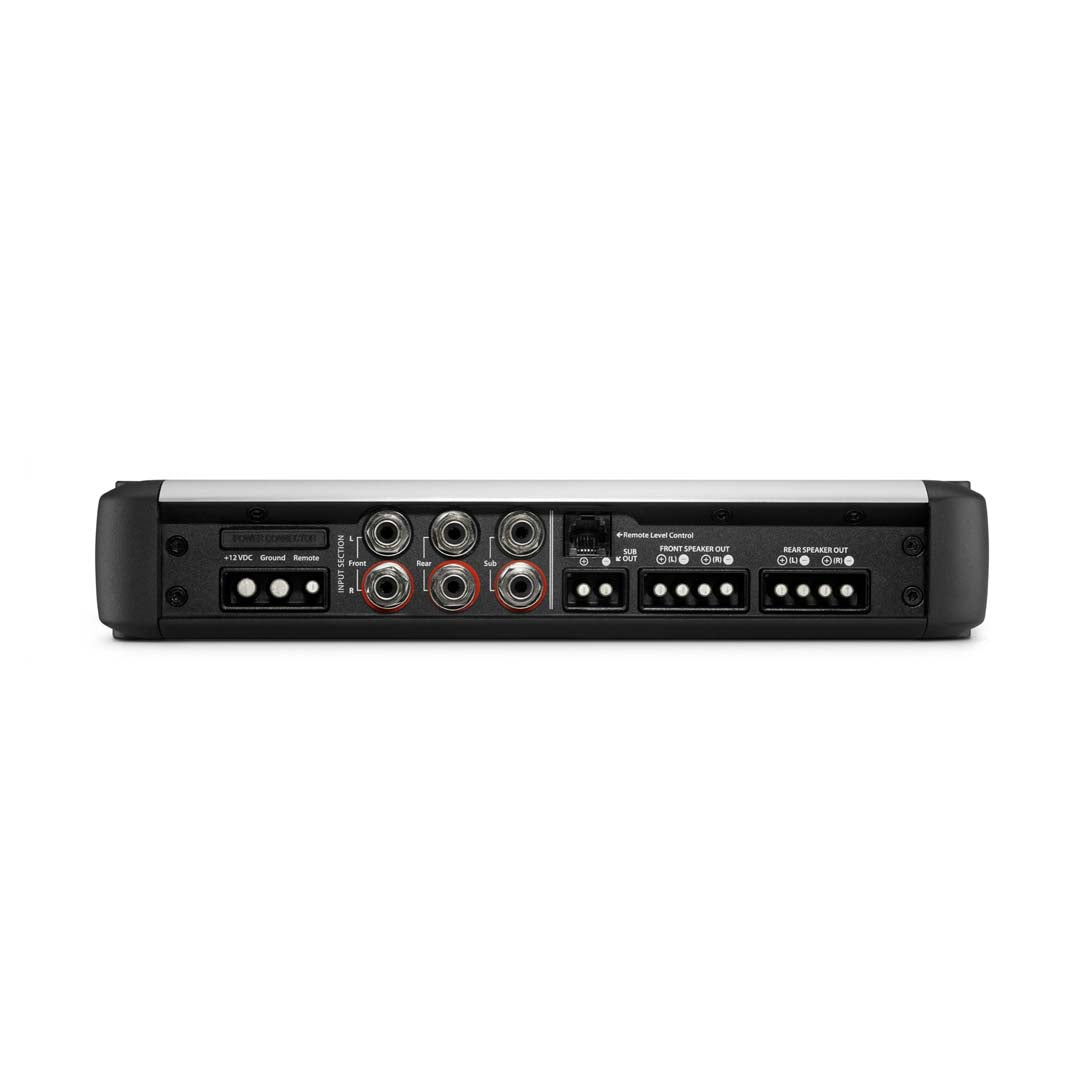

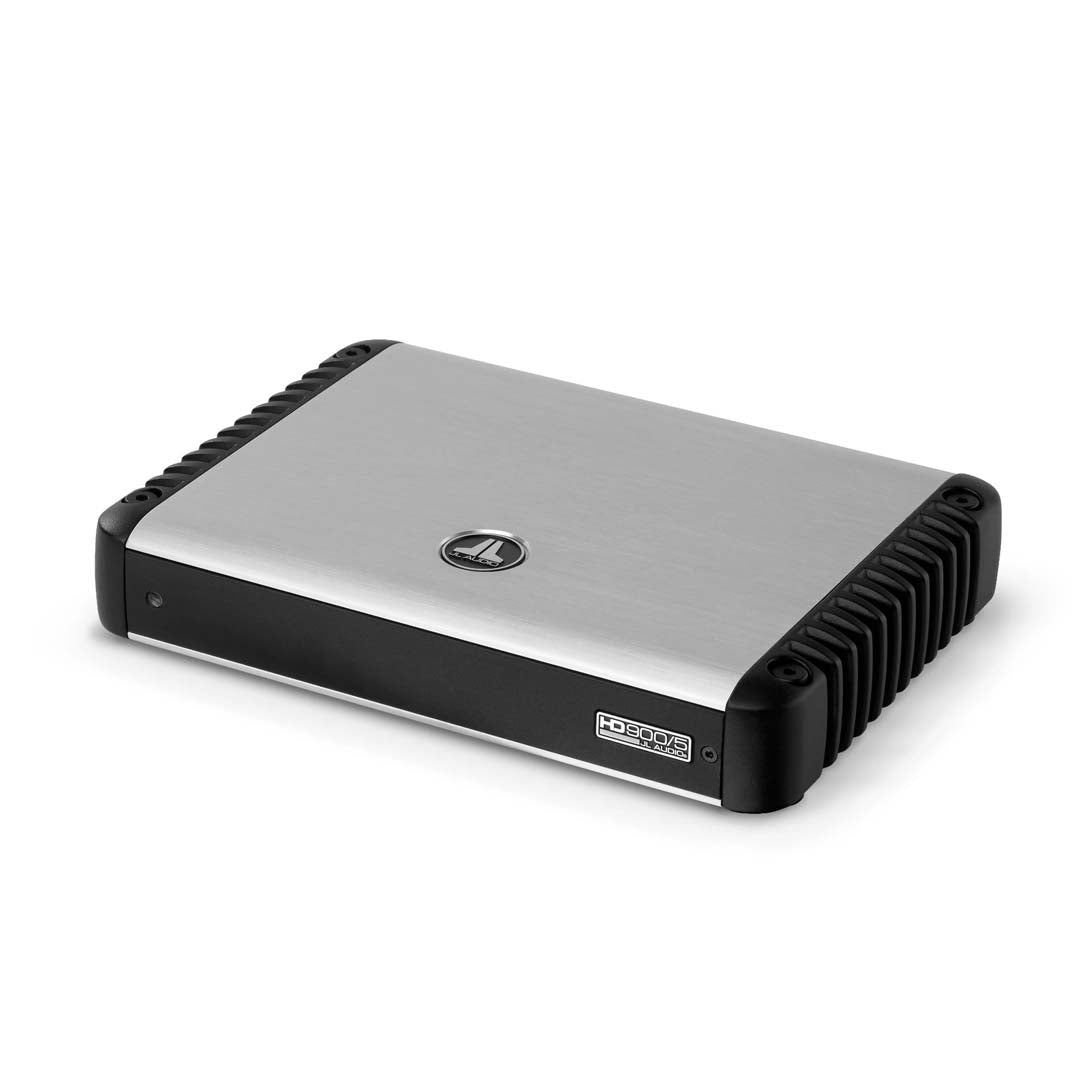

JL Audio HD900/5, HD Series Class D 5 Channel Amplifier, 900W
Thanks to its ability to act as a "one-box solution", the HD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal.
While extremely compact, this amazing amplifier will comfortably drive a complete high-performance car audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!
Using our Single Cycle Control switching design and R.I.P.S. technology, the HD900/5 delivers 100 W x 4 to its four main channels, plus a very meaty 500 W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

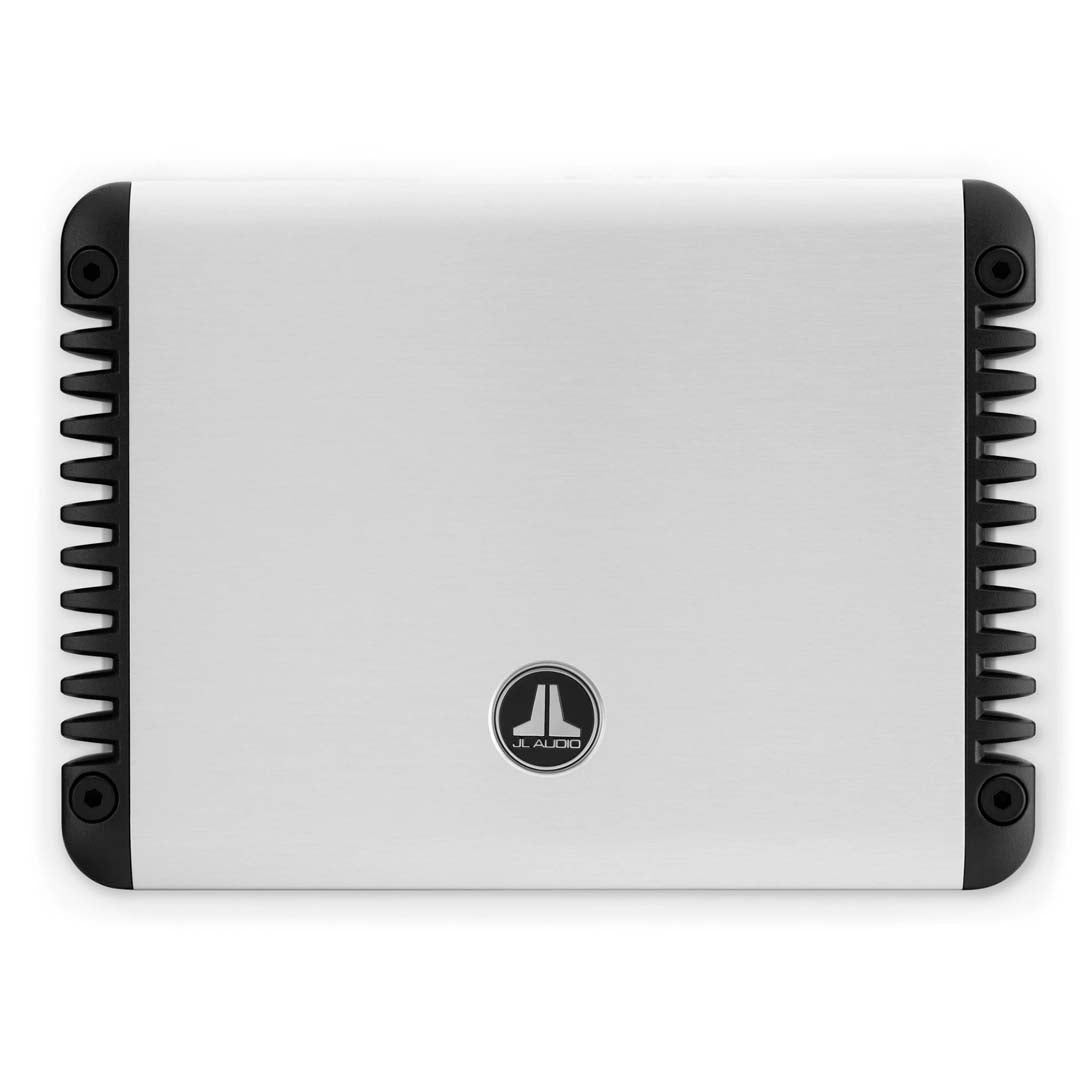

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.
Single Cycle Control™
High-Fidelity, full-range Class D is a reality.
R.I.P.S. – Regulated, Intelligent Power Supply
The remarkable R.I.P.S. System ensures consistent power delivery over a wide range of battery voltages and load impedances.
Advanced Rollback Protection
JL Audio's exclusive Advanced Rollback Protection circuit monitors the amplifier's thermal condition and adjusts amplifier operation to eliminate annoying amplifier shut-down events.
RealSink™
Vertical, cast alloy fins effectively dissipate heat, without resorting to noisy fan-cooling.
HD Mounting Options
Two mounting options plus a space-saving stacking feature ease installation.
Differential-Balanced Inputs
JL Audio’s Differential-Balanced Inputs are engineered to combat induced cable noise, which is a common problem in car and marine audio installations. This technology allows for the use of conventional RCA cables, while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.
|
|
Number of Channels |
5 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
100 x 4 500 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
75 x 4 500 x 1 |
| RMS Power Rating (Watts x Channels) - 1.5 Ohm |
75 x 4 500 x 1 |
| RMS Power Rating - Bridged 3-8 Ohms | 150 x 2 |
| Minimum Impedance Unbridged (Ohms) |
1.5 |
| Minimum Impedance Bridged (Ohms) |
3 |
| THD at Rated RMS Power |
0.03% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-500hz |
| Low Pass Crossover Frequency (Hz) |
50-500hz |
| Signal-to-Noise Ratio |
108dB |
| Bass Boost |
No |
| Bass Remote Included |
No |
| Fuse Rating | 60A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 Gauge |
| Warranty | 1 Year |
|
Number of Channels |
5 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
100 x 4 500 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
75 x 4 500 x 1 |
| RMS Power Rating (Watts x Channels) - 1.5 Ohm |
75 x 4 500 x 1 |
| RMS Power Rating - Bridged 3-8 Ohms | 150 x 2 |
| Minimum Impedance Unbridged (Ohms) |
1.5 |
| Minimum Impedance Bridged (Ohms) |
3 |
| THD at Rated RMS Power |
0.03% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-500hz |
| Low Pass Crossover Frequency (Hz) |
50-500hz |
| Signal-to-Noise Ratio |
108dB |
| Bass Boost |
No |
| Bass Remote Included |
No |
| Fuse Rating | 60A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 Gauge |
| Warranty | 1 Year |
