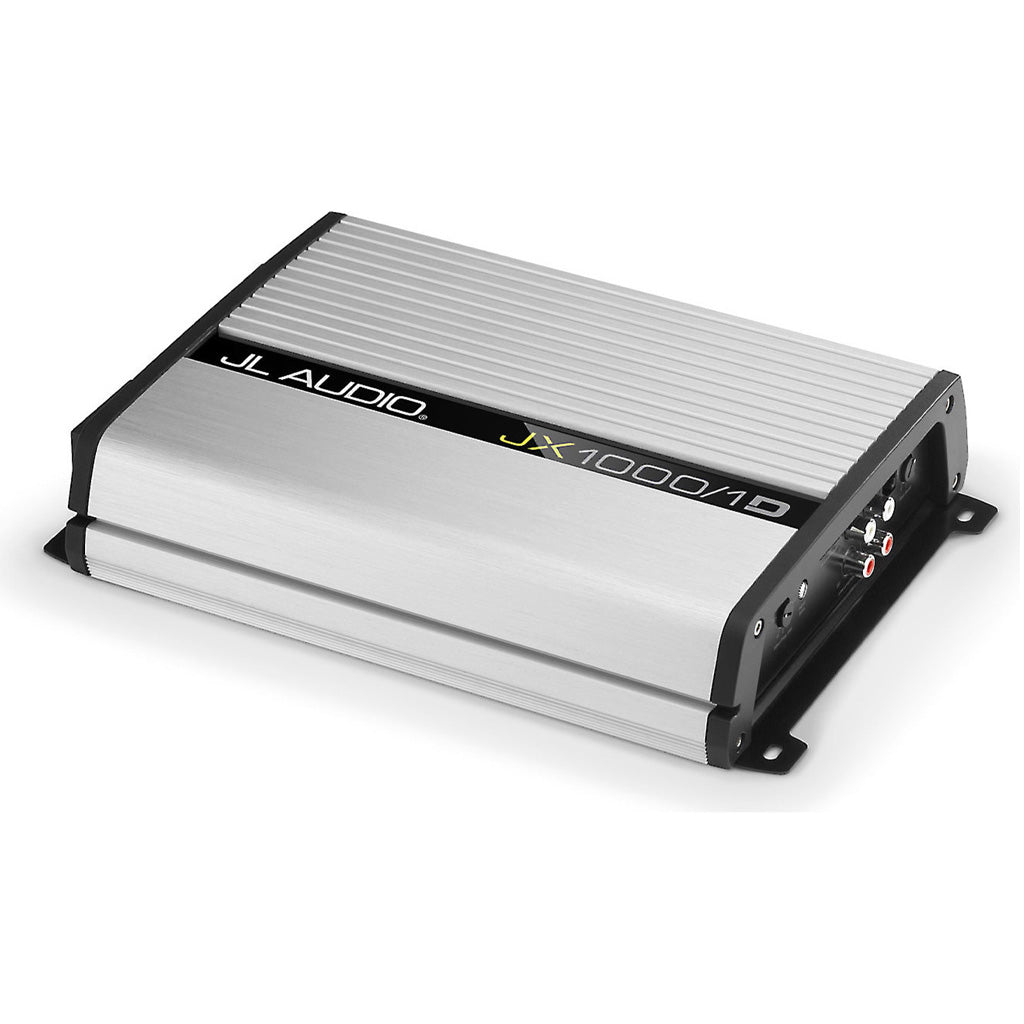

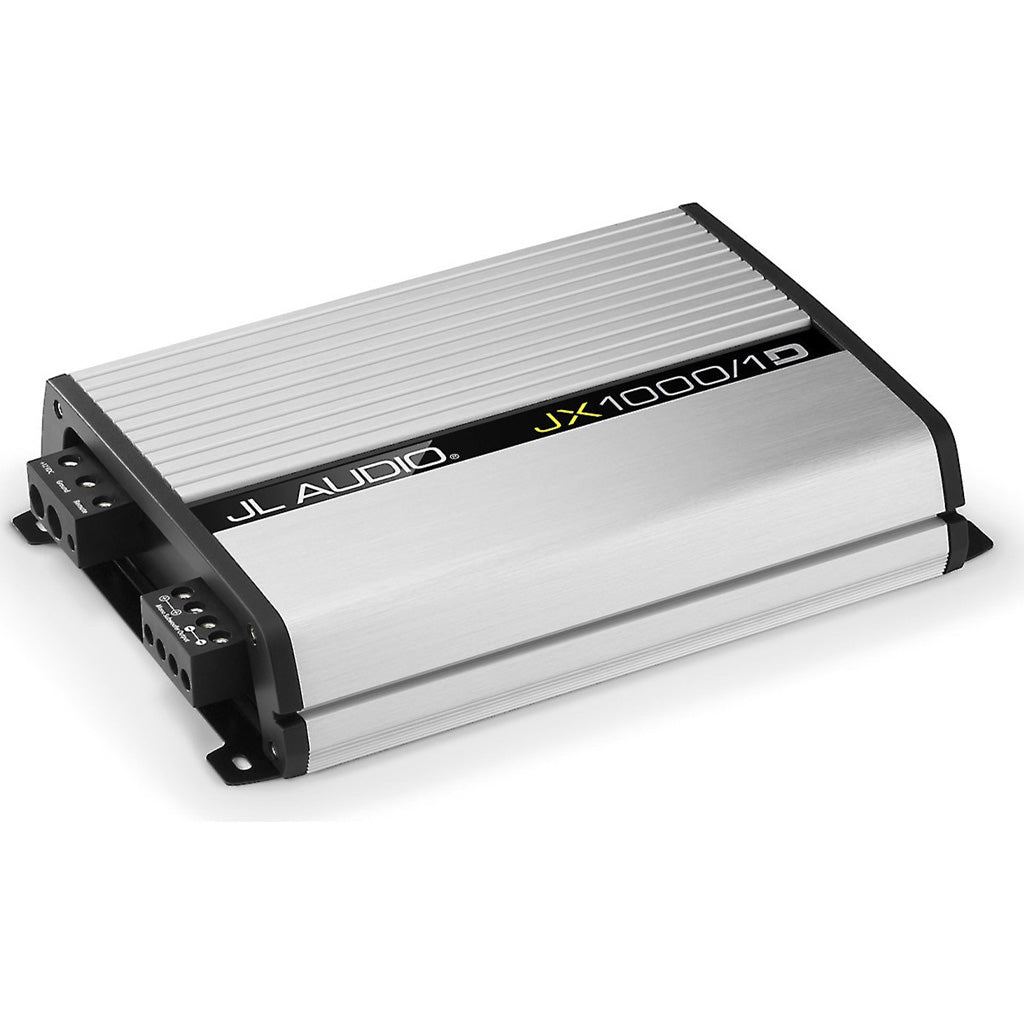

JL Audio JX1000/1D, JX Series Class D Mono Amplifier, 1000W
Discontinued Item
The requested item has been discontinued.
Please consider the below similar item.
Fastest Delivery Time
Receive Between
Order within
General Features:
- JL Audio JX Series Monoblock Class D Subwoofer Amplifier
- RMS Power Rating (14.4V):
- 4 ohms: 500 watts x 1 chan.
- 3 ohms: 750 watts x 1 chan.
- 2 ohms: 1000 watts x 1 chan.
- RMS Power Rating (12.5V):
- 4 ohms: 500 watts x 1 chan.
- 3 ohms: 700 watts x 1 chan.
- 2 ohms: 900 watts x 1 chan.
- Unregulated PWM switching type power supply

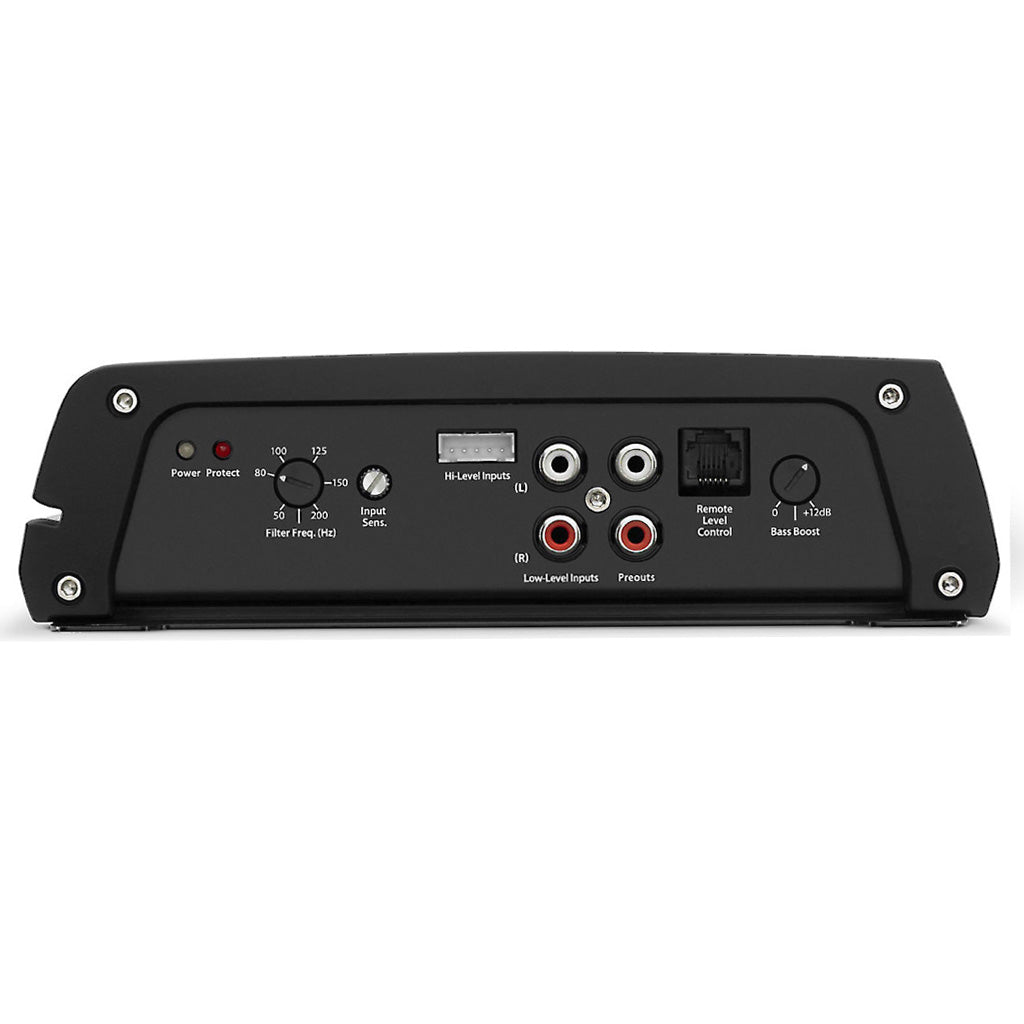

- LED power (green) and protect (red) indicators
- Soft start turn-on prevent clicking and popping when system turns on
- Speaker-level (high-level) inputs with included harness
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heatsink for effective heat dissipation
- Nickel-plated RCA level inputs
- Nickel-plated screw terminals

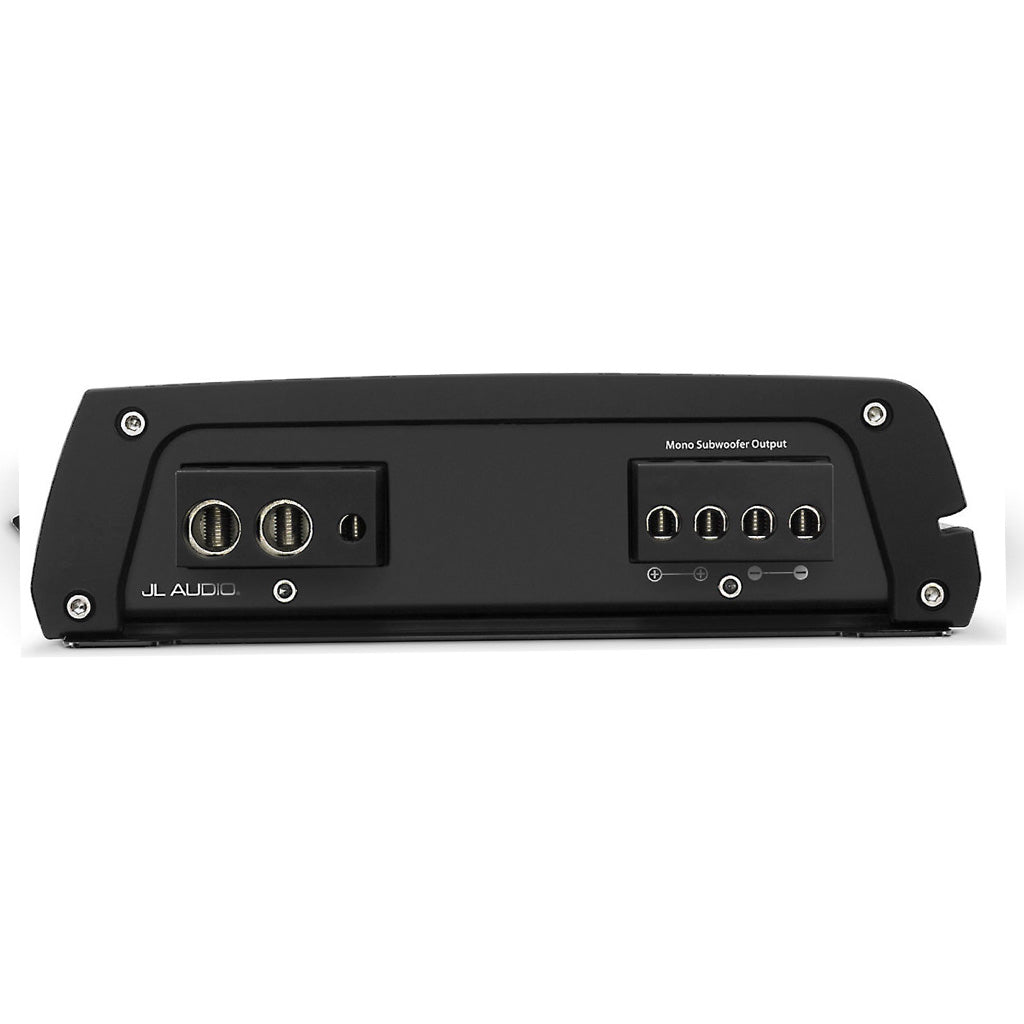

- Dual speaker terminals simplify the hookup of multiple speakers
- Remote bass level input (JL Audio RBC-1 sold separately)
- Input sensitivity:
- Low level input: 200mV - 4V
- High level input: 2.0mV - 10.0V
- Variable Bass Boost: 0 to +12 dB bass boost centered at 45 Hz
- Variable low-pass filter: 50 - 200 Hz, 12 dB/octave
- Frequency Response: 20 - 150 Hz 1 dB
- Total Harmonic Distortion (THD): 1%
- Signal to Noise Ratio: >75 dB
- Damping Factor @ 4 ohms: >1000 @ 4 ohms
- Fuse Rating: 80A x 1 inline (not supplied)
- Dimensions: 7.68"W x 10.94"L x 2.09"H
|
Number of Channels |
1 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
500 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
1000 x 1 |
| RMS Power Rating (Watts x Channels) - 1.5 Ohm |
N/A |
| RMS Power Rating - Bridged | N/A |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
N/A |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
N/A |
| High Pass Crossover Frequency (Hz) |
N/A |
| Low Pass Crossover Frequency (Hz) |
50-200hz |
| Signal-to-Noise Ratio |
75dB |
| Bass Boost |
0-12dB |
| Bass Remote Included |
No |
| Fuse Rating | 80A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 Gauge |
| Warranty | 1 Year |
|
Number of Channels |
1 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
500 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
1000 x 1 |
| RMS Power Rating (Watts x Channels) - 1.5 Ohm |
N/A |
| RMS Power Rating - Bridged | N/A |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
N/A |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
N/A |
| High Pass Crossover Frequency (Hz) |
N/A |
| Low Pass Crossover Frequency (Hz) |
50-200hz |
| Signal-to-Noise Ratio |
75dB |
| Bass Boost |
0-12dB |
| Bass Remote Included |
No |
| Fuse Rating | 80A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 Gauge |
| Warranty | 1 Year |
