JL Audio MV1000/5i, MVi Series Class D 5 Channel Marine Amplifier with Integrated DSP
Engineered to deliver reference-grade audio performance in marine environments, every MVi amplifier unites our cutting-edge NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
Equipped with our second-generation NexD2™ technology, the MV1000/5i is capable of powering a complete marine audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms, while also powering a subwoofer with up to 600W @ 2 ohms. Bridging the main channels transforms it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 600W @ 2 ohms on the subwoofer channel.
The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is a ultra-compact, cast alloy design with marine-grade powder coat finish and corrosion-resistant hardware.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

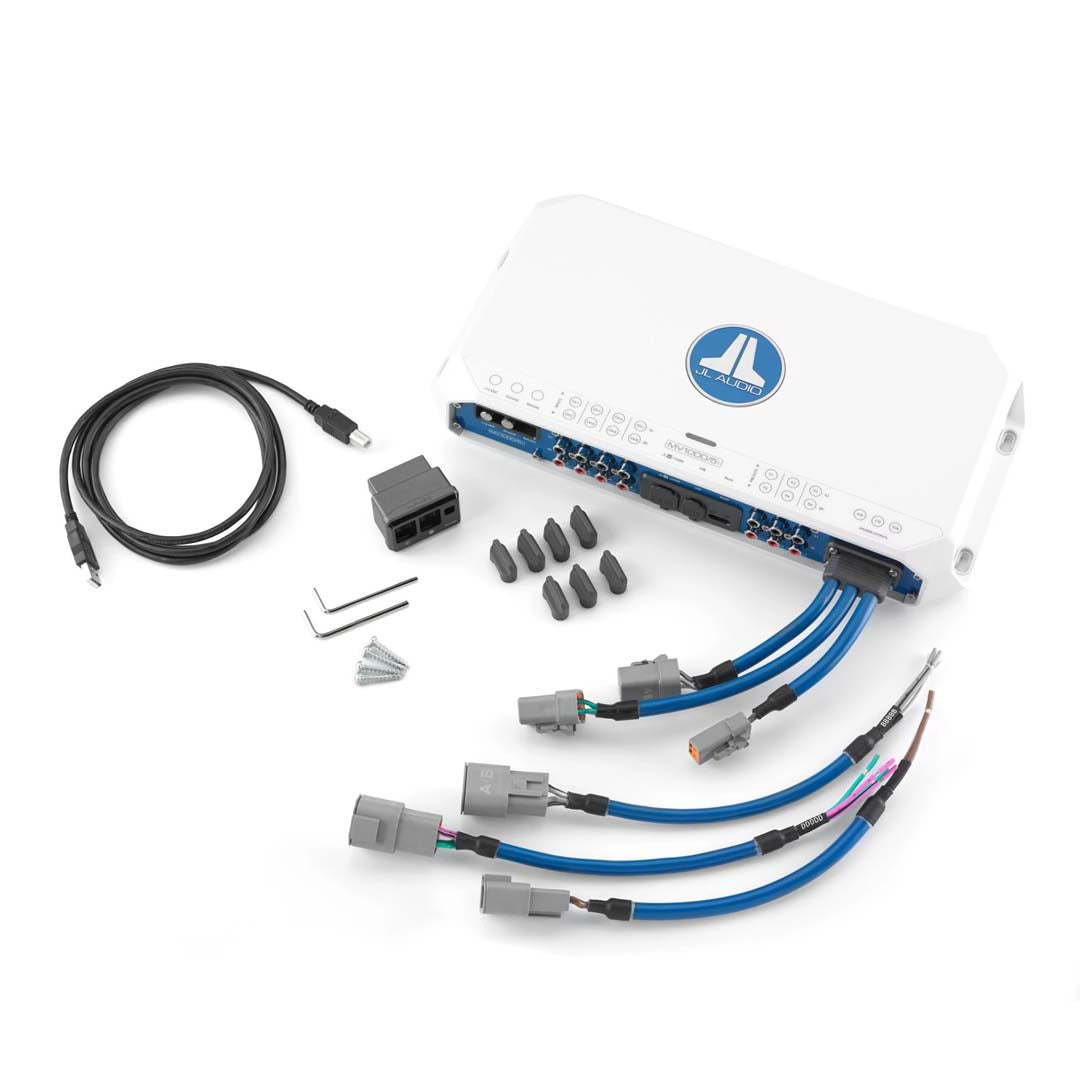

Amplifier includes: Power Connector (for 4 AWG wire), Speaker Output Harnesses (2), Subwoofer Output Harness, 6 ft A/B USB Cable
NexD2™ Switching Technology
JL Audio's NexD2™ amplifier technologies are a next-level approach to improving what is already an outstanding Class D design platform. Employing new components and more advanced circuit layouts, fidelity and efficiency have been significantly enhanced.
Advanced Rollback Protection
JL Audio's exclusive Advanced Rollback Protection circuit monitors the amplifier's thermal condition and adjusts amplifier operation to eliminate annoying amplifier shut-down events.
Differential-Balanced Inputs
JL Audio’s Differential-Balanced Inputs are engineered to combat induced cable noise, which is a common problem in car and marine audio installations. This technology allows for the use of conventional RCA cables, while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.
JLid™
JLid™ is JL Audio's protocol for digital controllers and for communication of settings between devices (not for audio signals).
|
| Weather Resistance | Yes |
|
Number of Channels |
5 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
75 x 4 400 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
100 x 4 600 x 1 |
| RMS Power Rating - Bridged | 200 x 2 |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
4 |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
DSP |
| Built-in Crossover - High Pass |
DSP |
| High Pass Crossover Frequency (Hz) |
DSP |
| Low Pass Crossover Frequency (Hz) |
DSP |
| Signal-to-Noise Ratio |
99dB |
| Bass Boost |
DSP |
| Bass Remote Included |
No |
| Fuse Rating | 80A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 2 Gauge |
| Warranty | 1 Year |
| Weather Resistance | Yes |
|
Number of Channels |
5 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
75 x 4 400 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
100 x 4 600 x 1 |
| RMS Power Rating - Bridged | 200 x 2 |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
4 |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
DSP |
| Built-in Crossover - High Pass |
DSP |
| High Pass Crossover Frequency (Hz) |
DSP |
| Low Pass Crossover Frequency (Hz) |
DSP |
| Signal-to-Noise Ratio |
99dB |
| Bass Boost |
DSP |
| Bass Remote Included |
No |
| Fuse Rating | 80A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 2 Gauge |
| Warranty | 1 Year |
