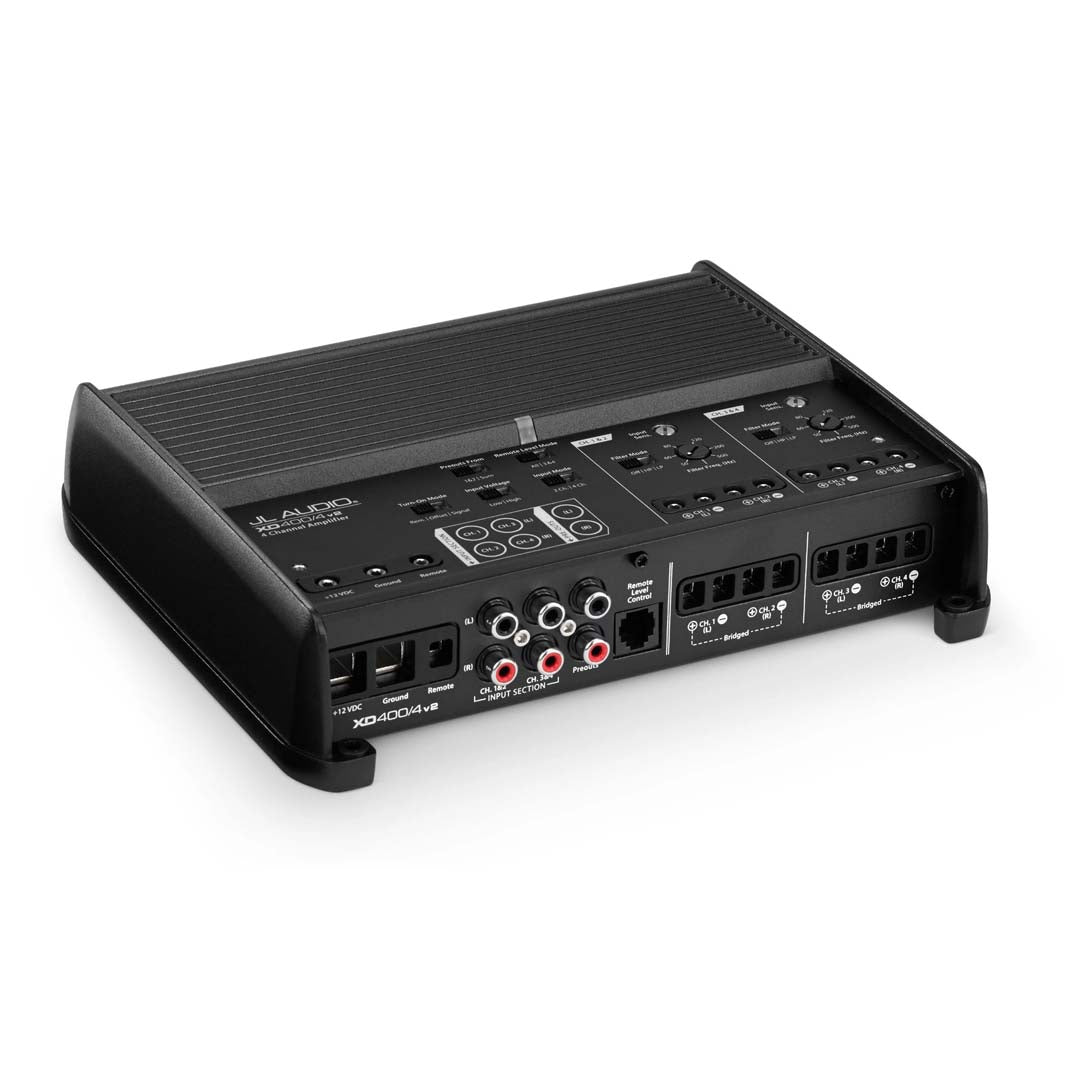

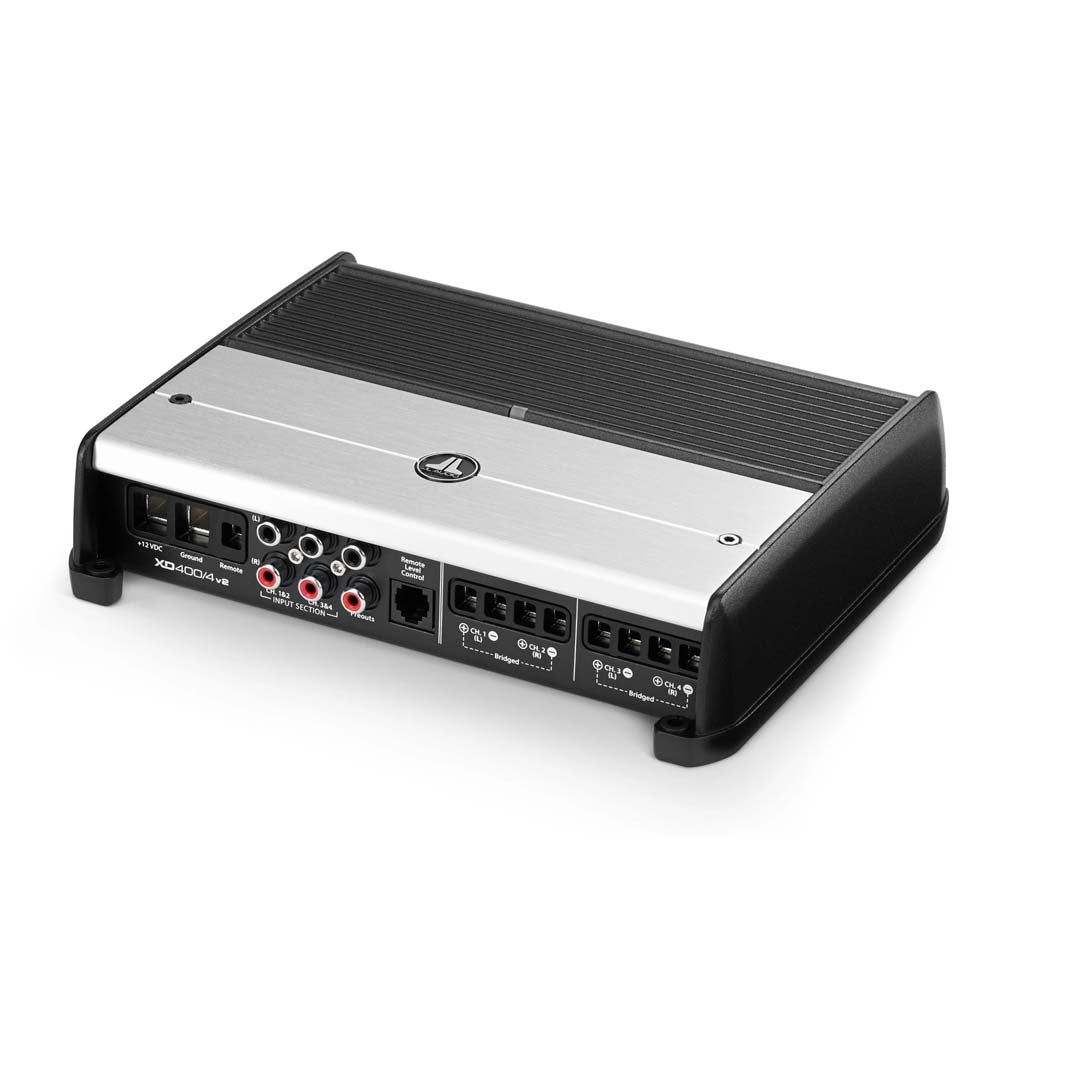

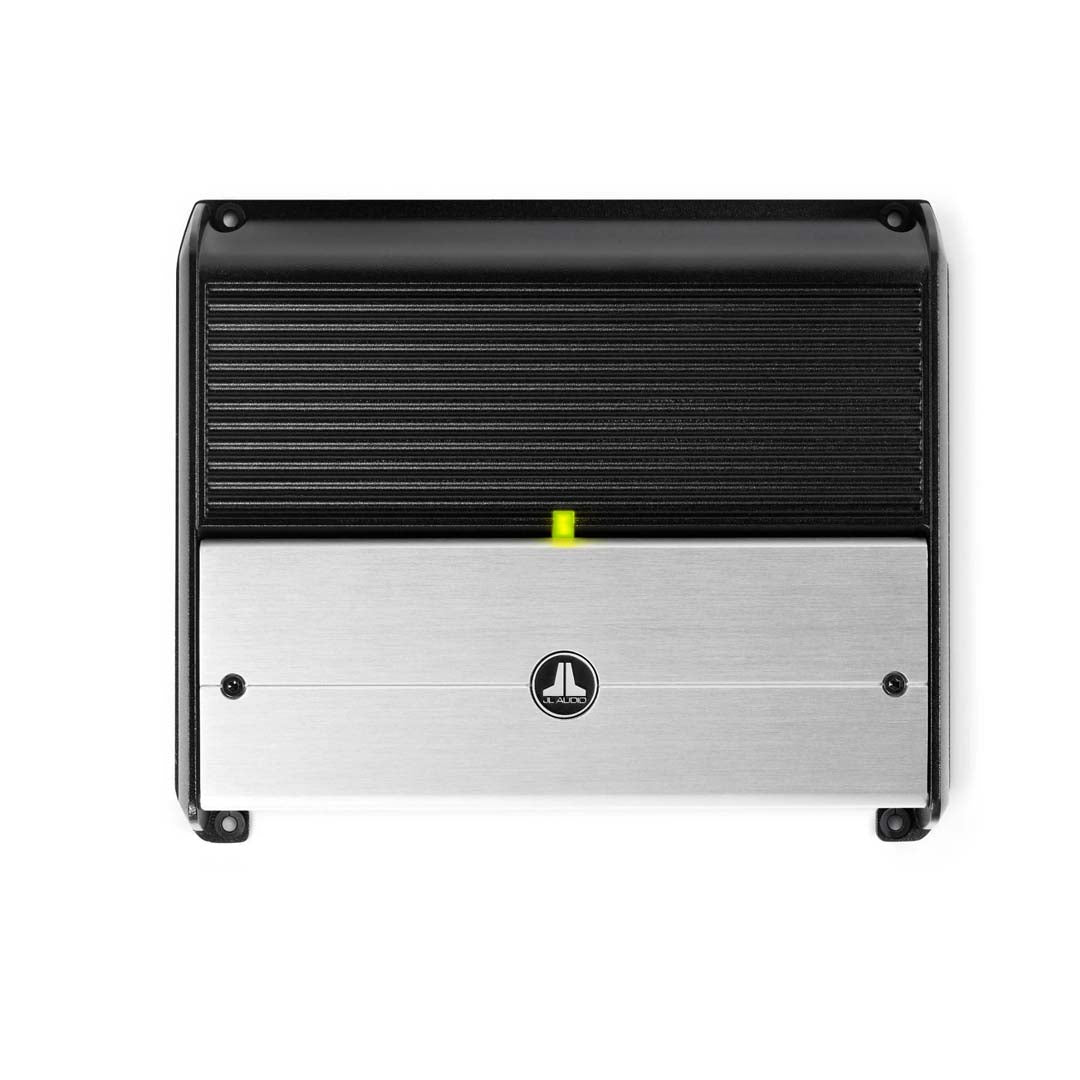

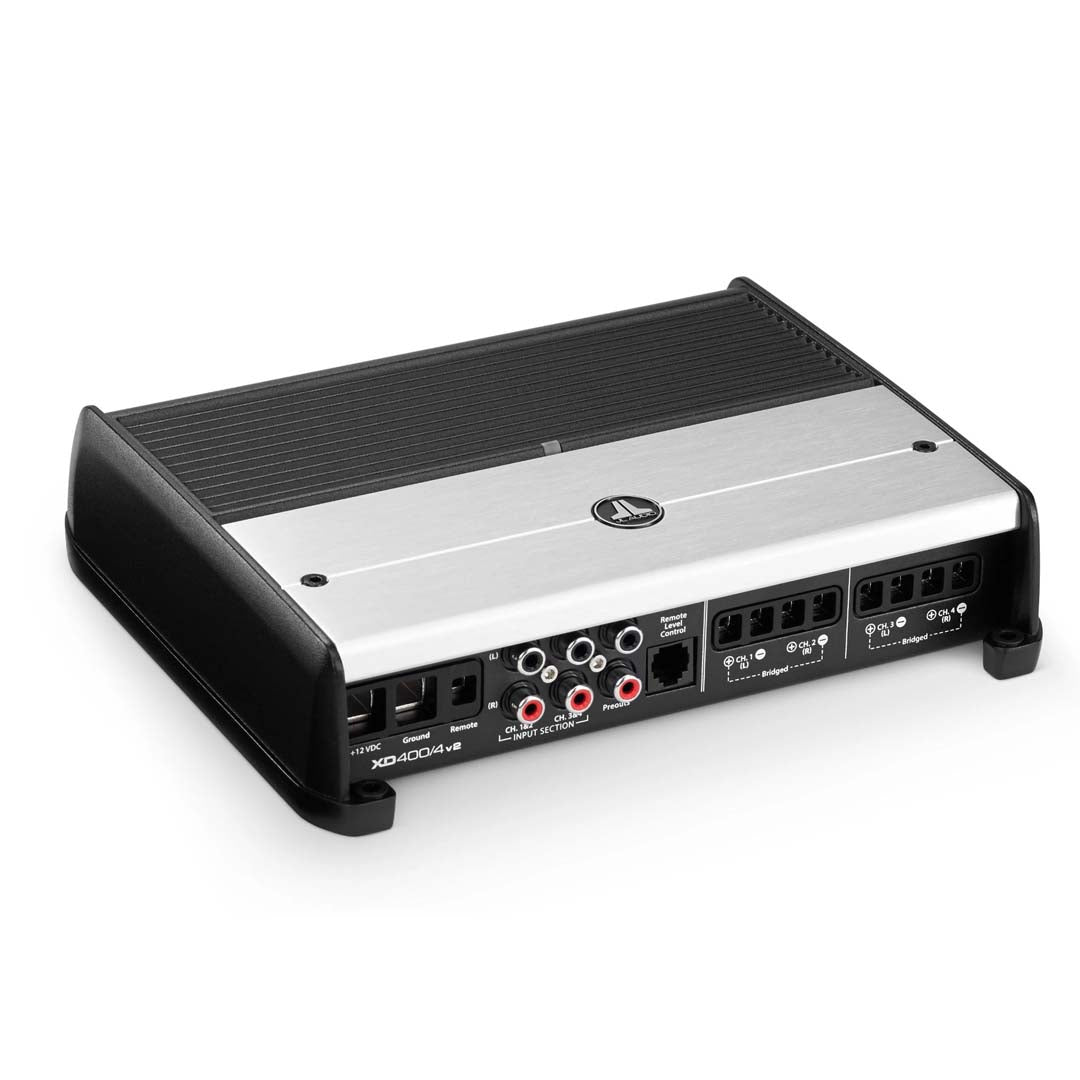

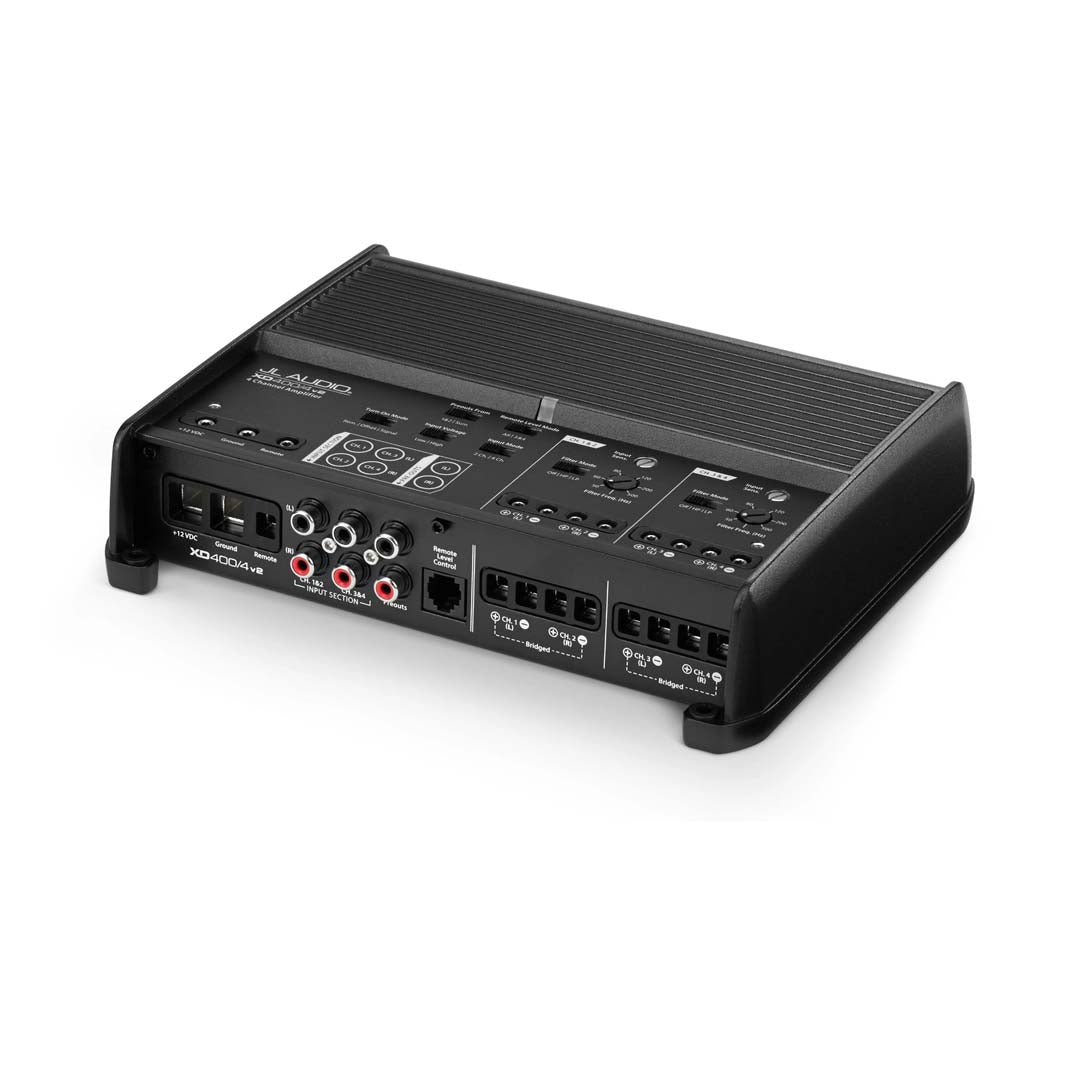

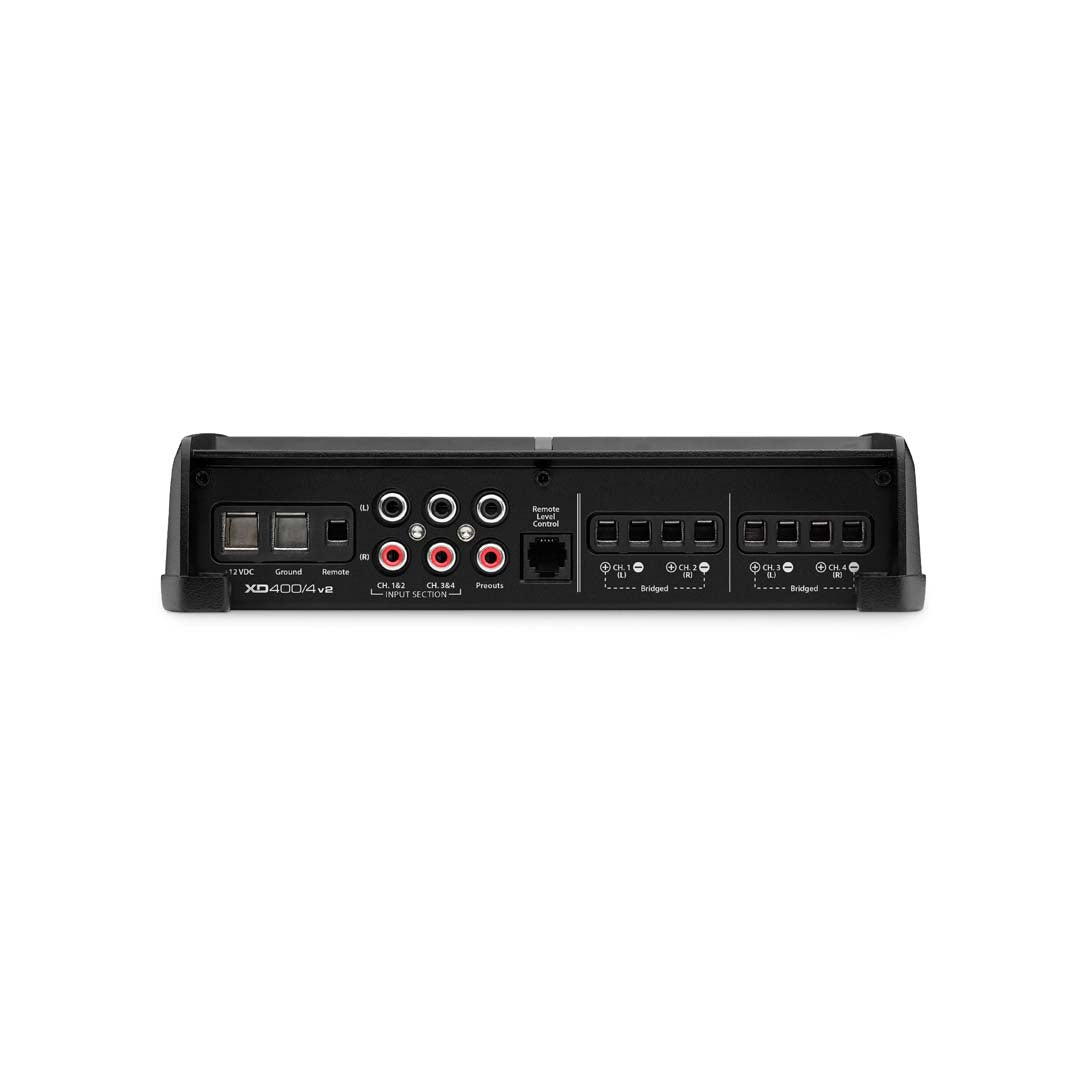

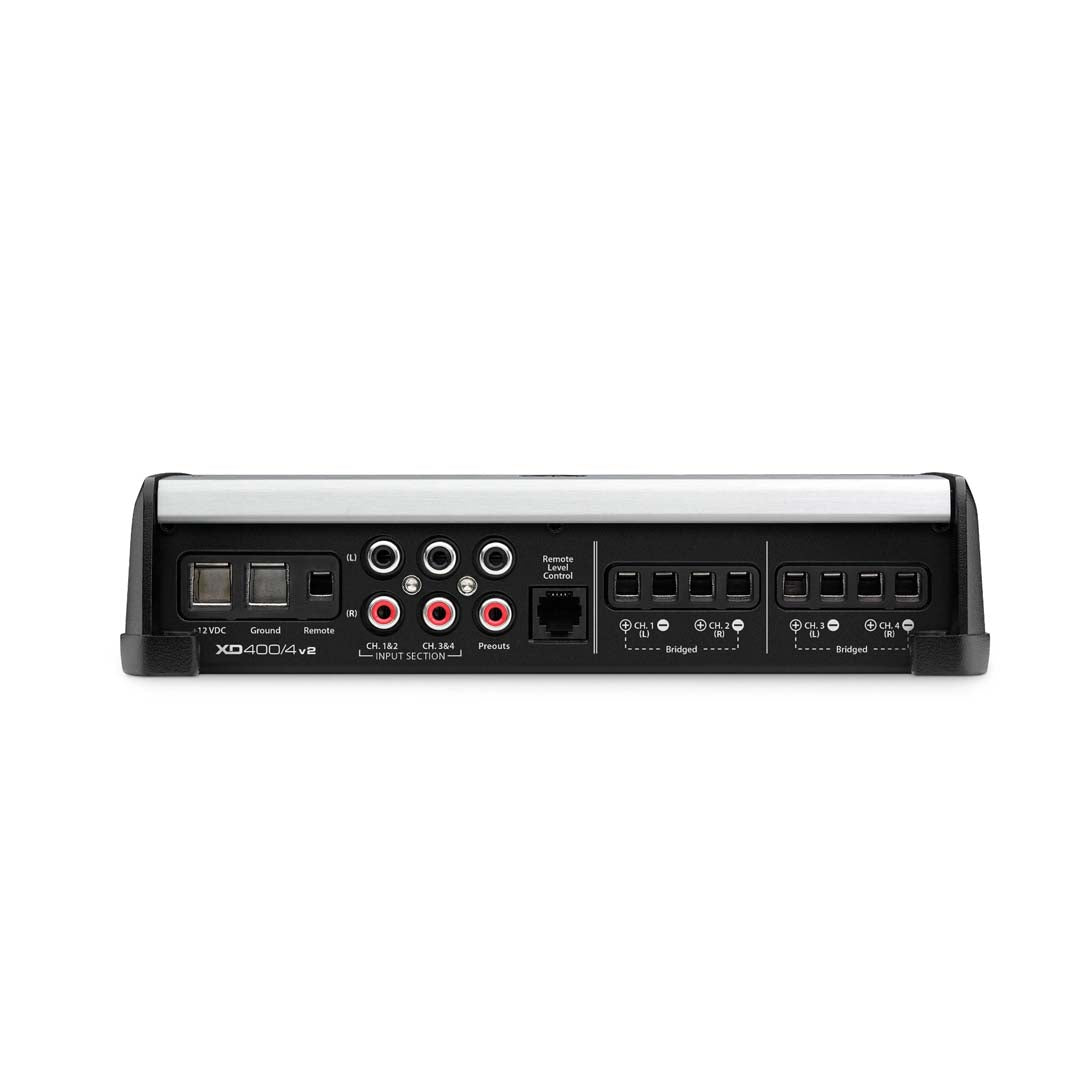

JL Audio XD400/4v2, XD Series Class D Full-Range 4Ch Amplifier, 100W x 4
This tiny amplifier packs a serious full-range punch, delivering a staggering 100 watts to each of its four channels into 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.
Use the XD400/4v2 in combination with our XD600/1 monoblock to build a 1000 W amplification system to power four satellites and a subwoofer... and fit the whole thing under a seat. Or, use the XD400/4v2 by itself to power two satellites, plus a subwoofer. With XD's, the possibilities are endless.
The XD400/4v2 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz.
The XD400/4v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.
This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.
NexD™ Switching Technology
NexD™ amplifier technologies produce exceptional audio quality, unsurpassed total efficiency and high power from very compact amplifier designs.
Advanced Rollback Protection
JL Audio's exclusive Advanced Rollback Protection circuit monitors the amplifier's thermal condition and adjusts amplifier operation to eliminate annoying amplifier shut-down events
v2 Spec
An enhanced set of features added to XD and M-Series amplifiers that bear the "v2" designation make these models more versatile than ever.
Differential-Balanced Inputs
JL Audio’s Differential-Balanced Inputs are engineered to combat induced cable noise, which is a common problem in car and marine audio installations. This technology allows for the use of conventional RCA cables, while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.
|
Number of Channels |
4 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
75 x 4 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
100 x 4 |
| RMS Power Rating (Watts x Channels) - 1 Ohm |
N/A |
| RMS Power Rating - Bridged | 200 x 2 |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
4 |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-500hz |
| Low Pass Crossover Frequency (Hz) |
50-500hz |
| Signal-to-Noise Ratio |
84dB |
| Bass Boost |
No |
| Bass Remote Included |
No |
| Fuse Rating | 40A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 Gauge |
| Warranty | 1 Year |
|
Number of Channels |
4 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
75 x 4 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
100 x 4 |
| RMS Power Rating (Watts x Channels) - 1 Ohm |
N/A |
| RMS Power Rating - Bridged | 200 x 2 |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
4 |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-500hz |
| Low Pass Crossover Frequency (Hz) |
50-500hz |
| Signal-to-Noise Ratio |
84dB |
| Bass Boost |
No |
| Bass Remote Included |
No |
| Fuse Rating | 40A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 Gauge |
| Warranty | 1 Year |
