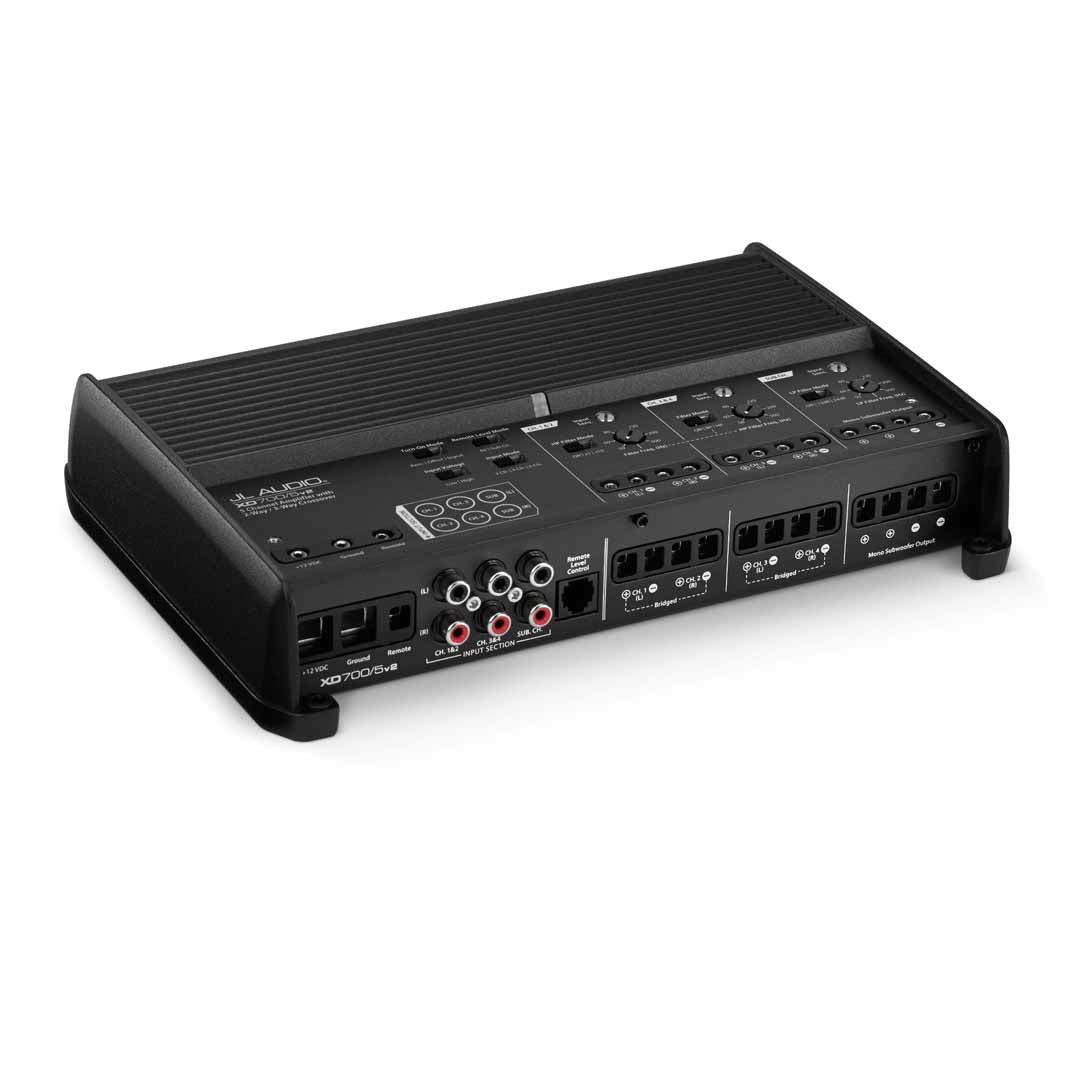

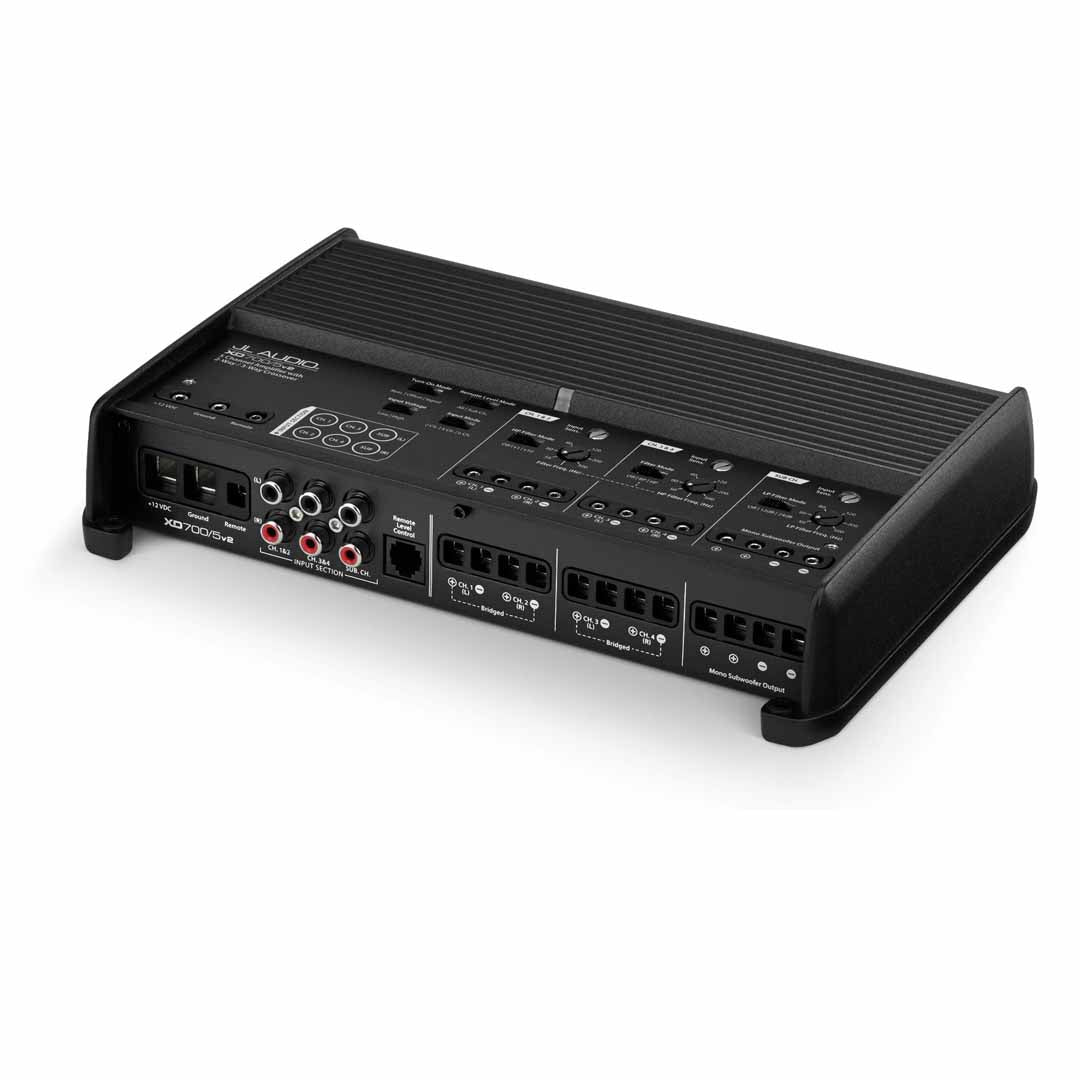

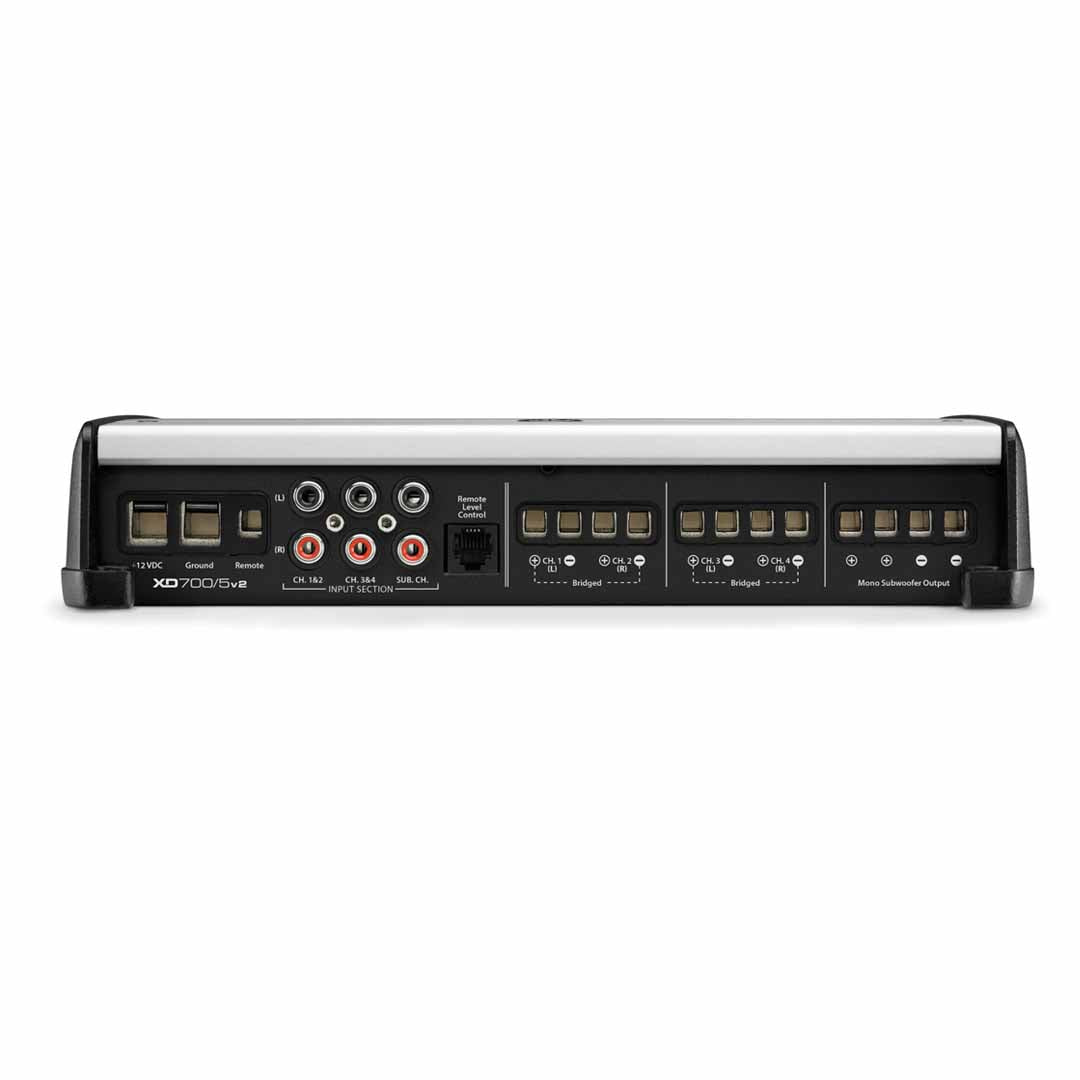

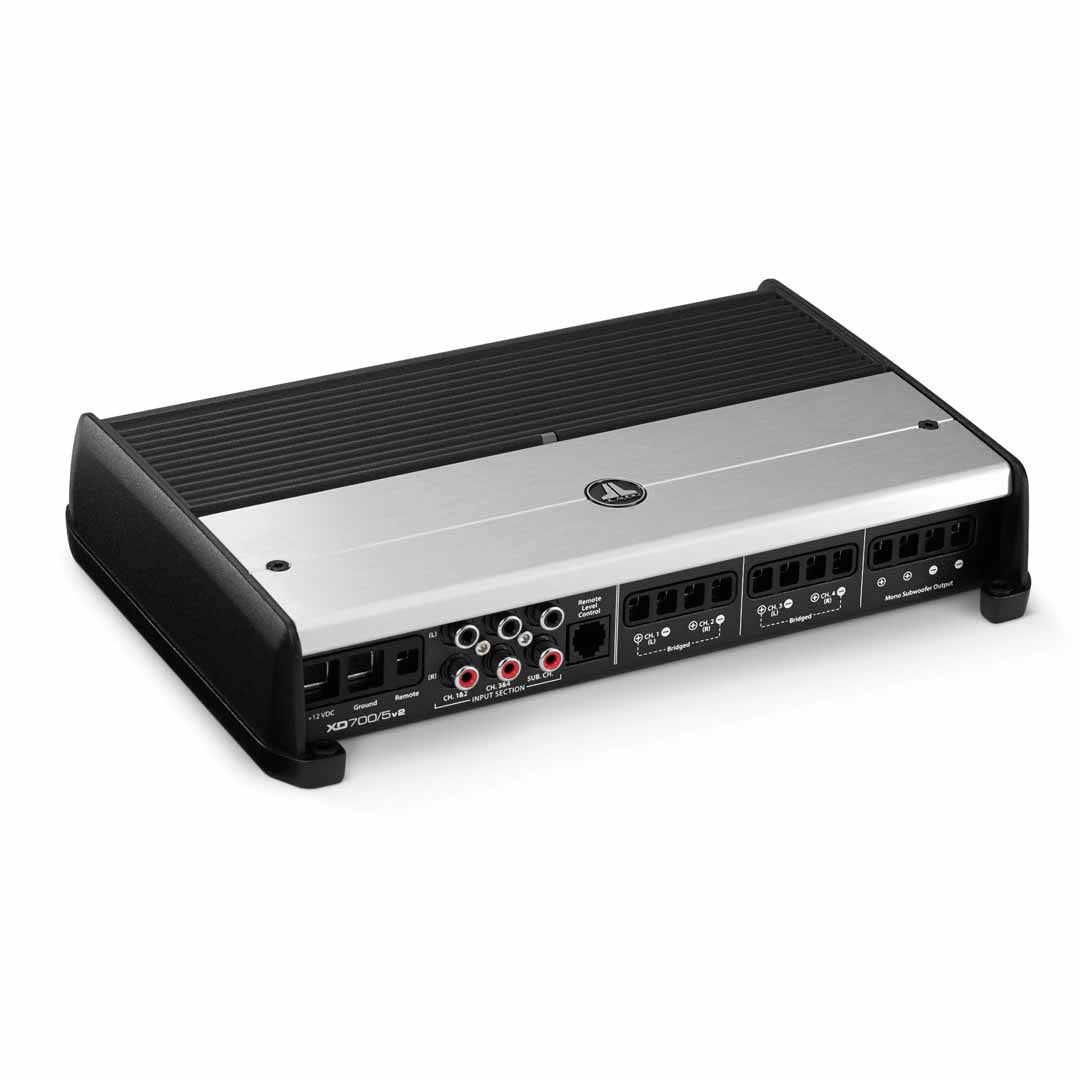

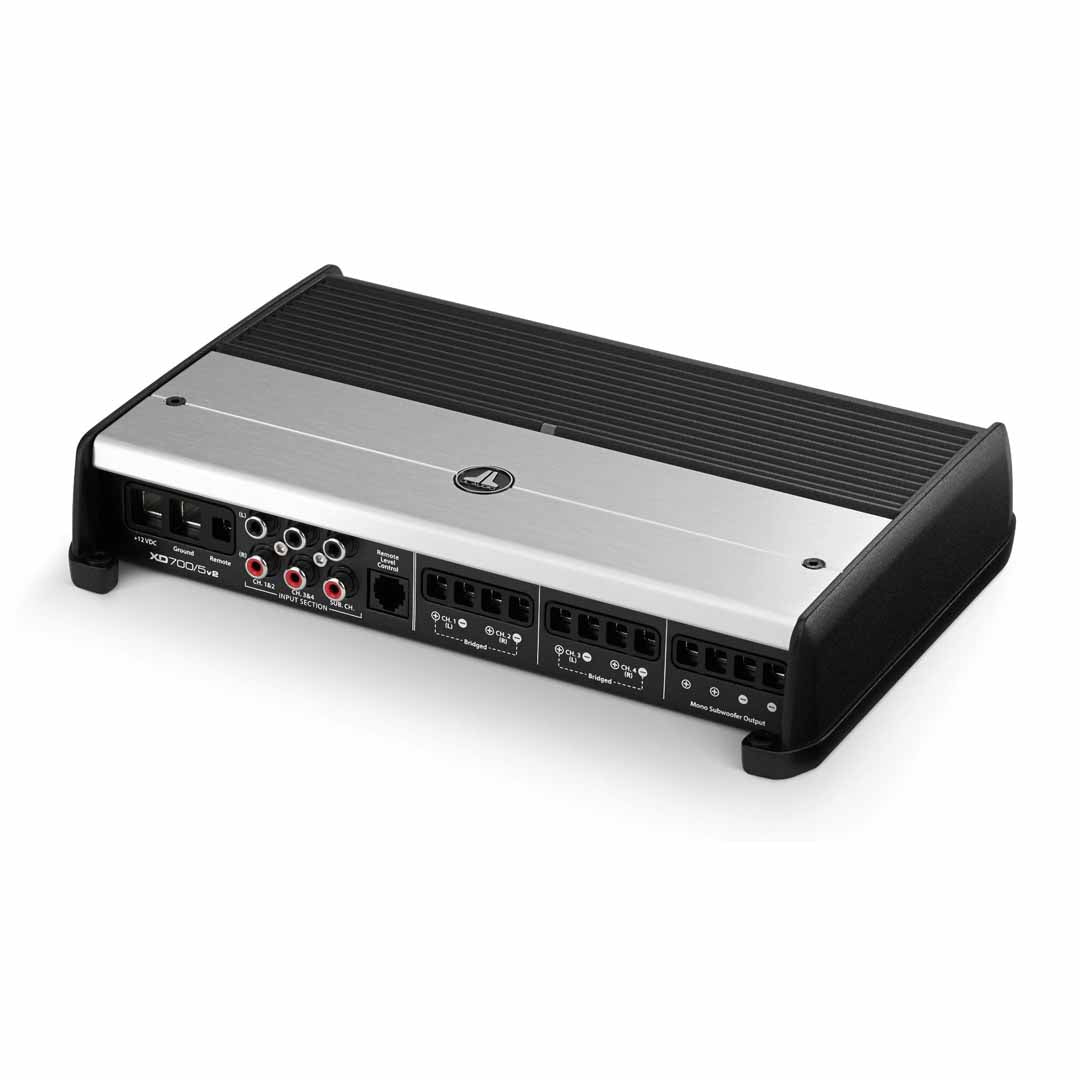

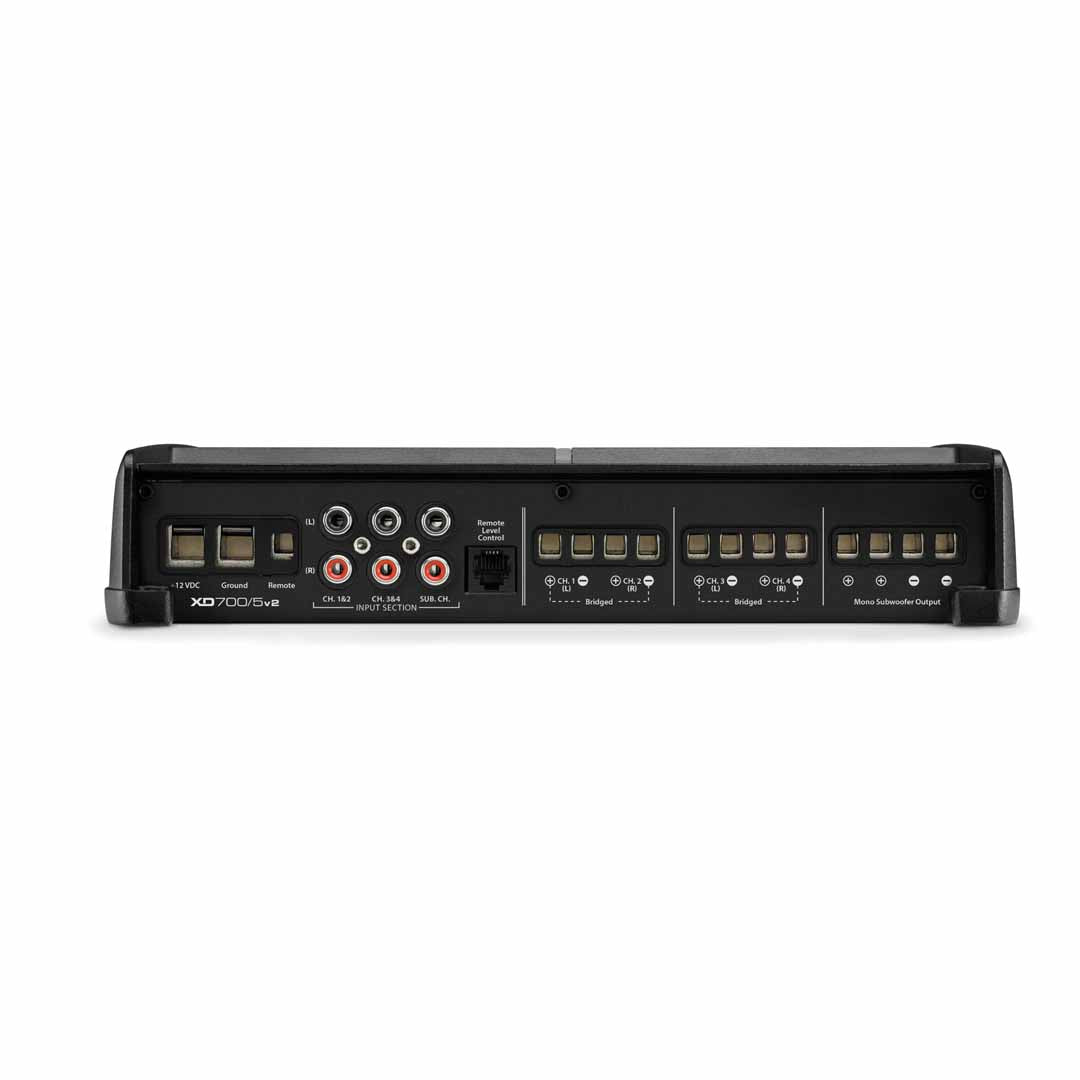

JL Audio XD700/5v2, XD Series Class D 5Ch Amplifier, 75W x 4 + 300W x 1
The XD700/5v2 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and it fits comfortably in just about any vehicle. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also delivering a stout 300 W of power to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.
The XD700/5v2 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz.
The XD700/5v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.
This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.
NexD™ Switching Technology
NexD™ amplifier technologies produce exceptional audio quality, unsurpassed total efficiency and high power from very compact amplifier designs.
Advanced Rollback Protection
JL Audio's exclusive Advanced Rollback Protection circuit monitors the amplifier's thermal condition and adjusts amplifier operation to eliminate annoying amplifier shut-down events
v2 Spec
An enhanced set of features added to XD and M-Series amplifiers that bear the "v2" designation make these models more versatile than ever.
Differential-Balanced Inputs
JL Audio’s Differential-Balanced Inputs are engineered to combat induced cable noise, which is a common problem in car and marine audio installations. This technology allows for the use of conventional RCA cables, while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.
|
|
Number of Channels |
5 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
75 x 4 180 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
100 x 4 300 x 1 |
| RMS Power Rating (Watts x Channels) - 1 Ohm |
N/A |
| RMS Power Rating - Bridged | 200 x 2 |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
4 |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-500hz |
| Low Pass Crossover Frequency (Hz) |
50-500hz |
| Signal-to-Noise Ratio |
84dB |
| Bass Boost |
No |
| Bass Remote Included |
No |
| Fuse Rating | 60A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 Gauge |
| Warranty | 1 Year |
|
Number of Channels |
5 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
75 x 4 180 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
100 x 4 300 x 1 |
| RMS Power Rating (Watts x Channels) - 1 Ohm |
N/A |
| RMS Power Rating - Bridged | 200 x 2 |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
4 |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-500hz |
| Low Pass Crossover Frequency (Hz) |
50-500hz |
| Signal-to-Noise Ratio |
84dB |
| Bass Boost |
No |
| Bass Remote Included |
No |
| Fuse Rating | 60A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 Gauge |
| Warranty | 1 Year |
