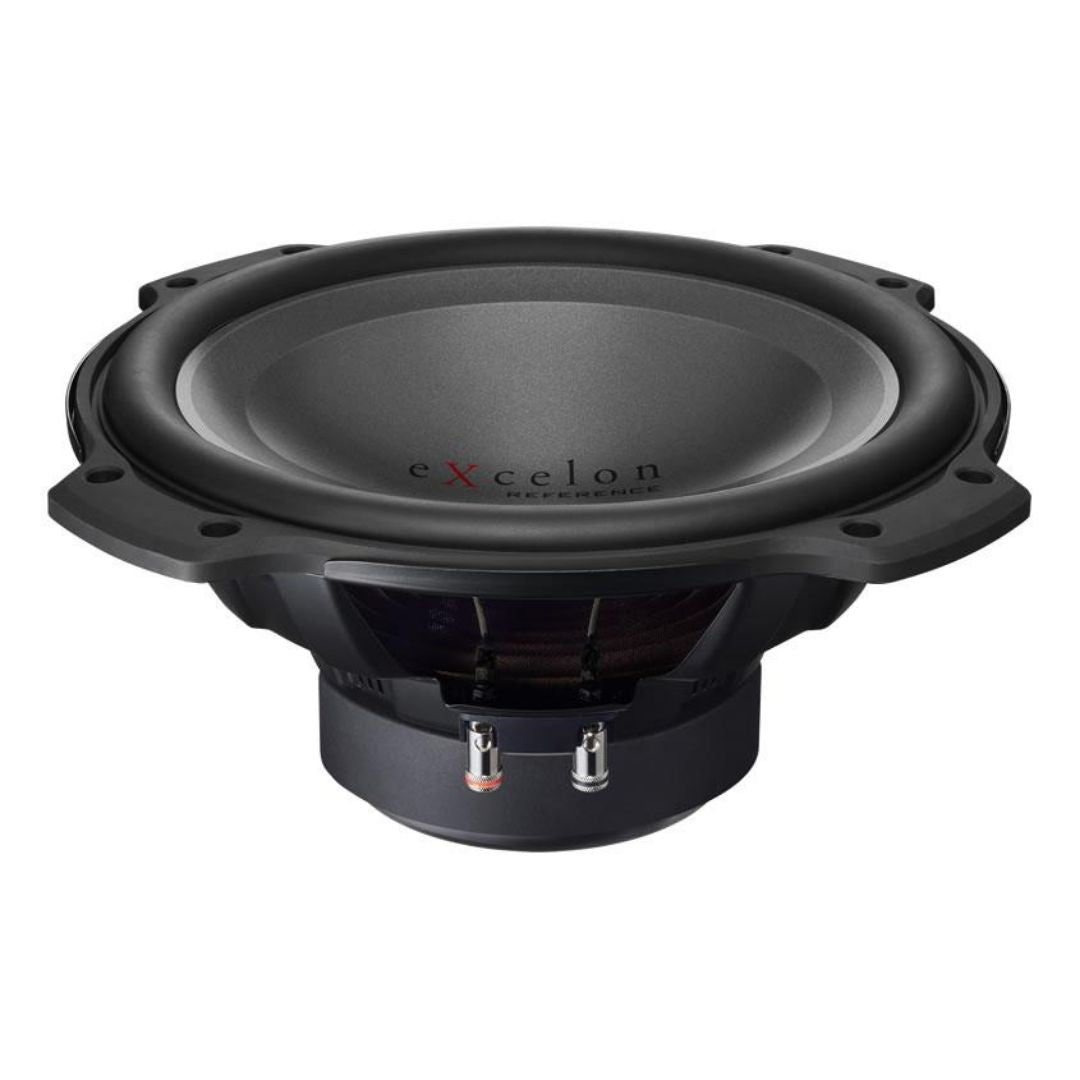

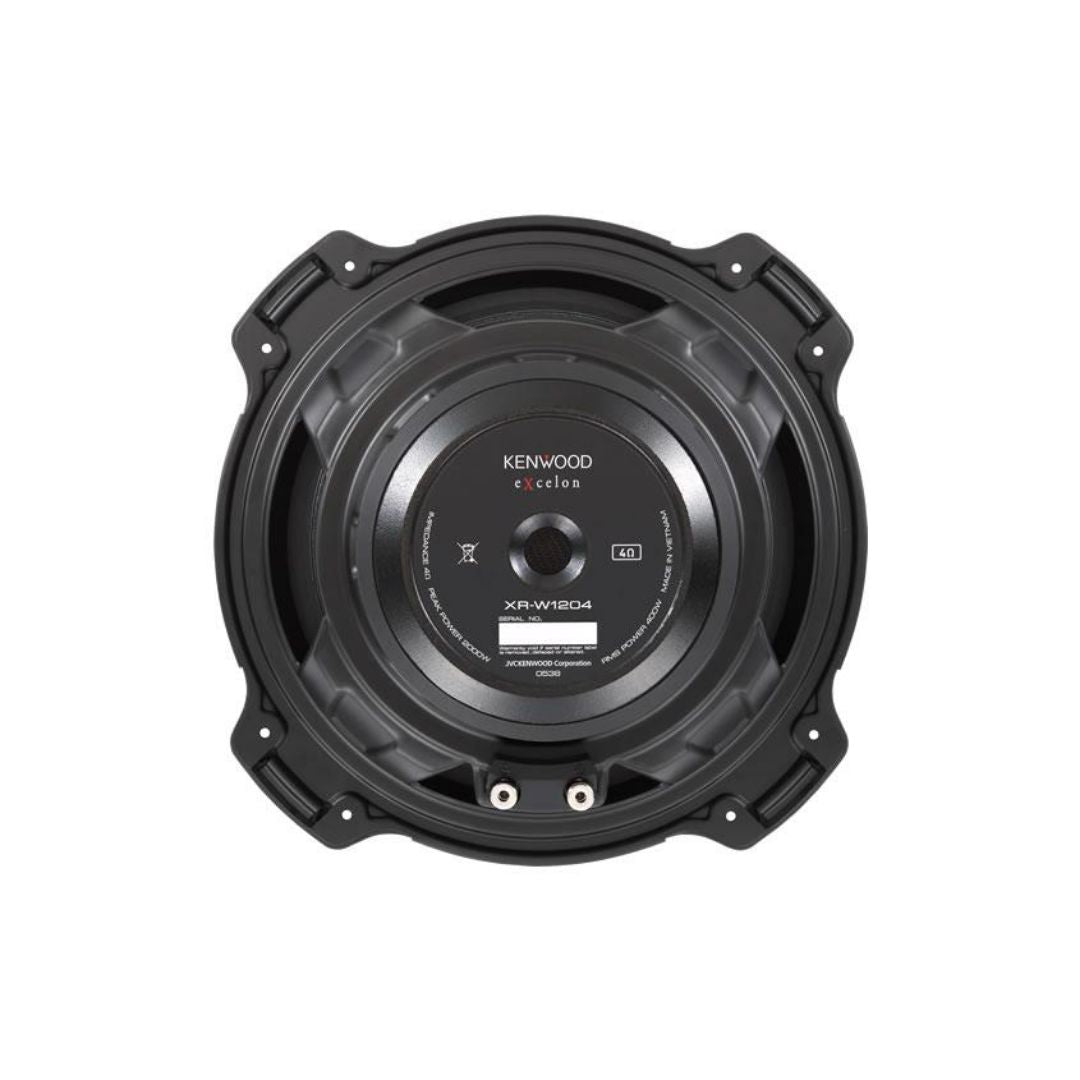

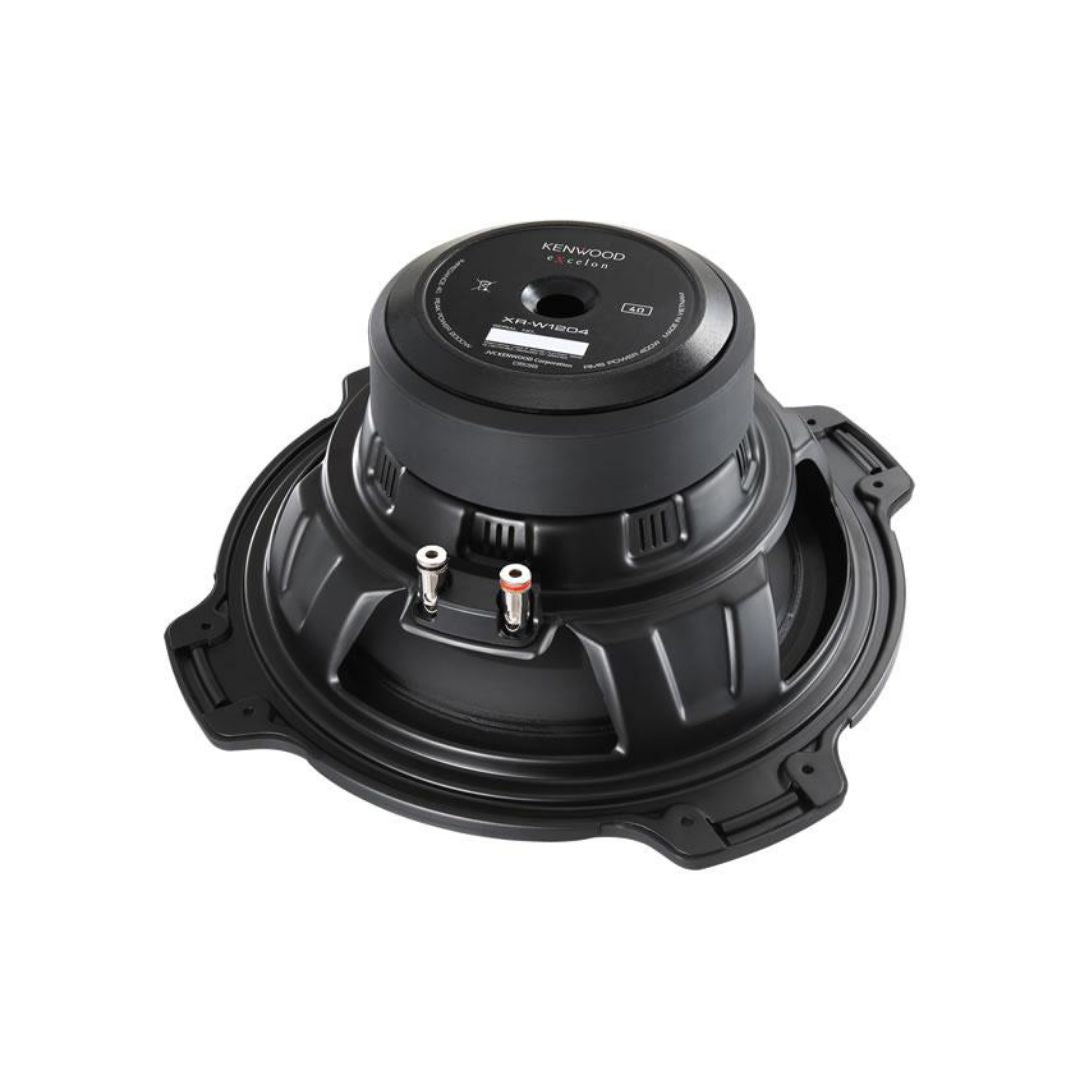

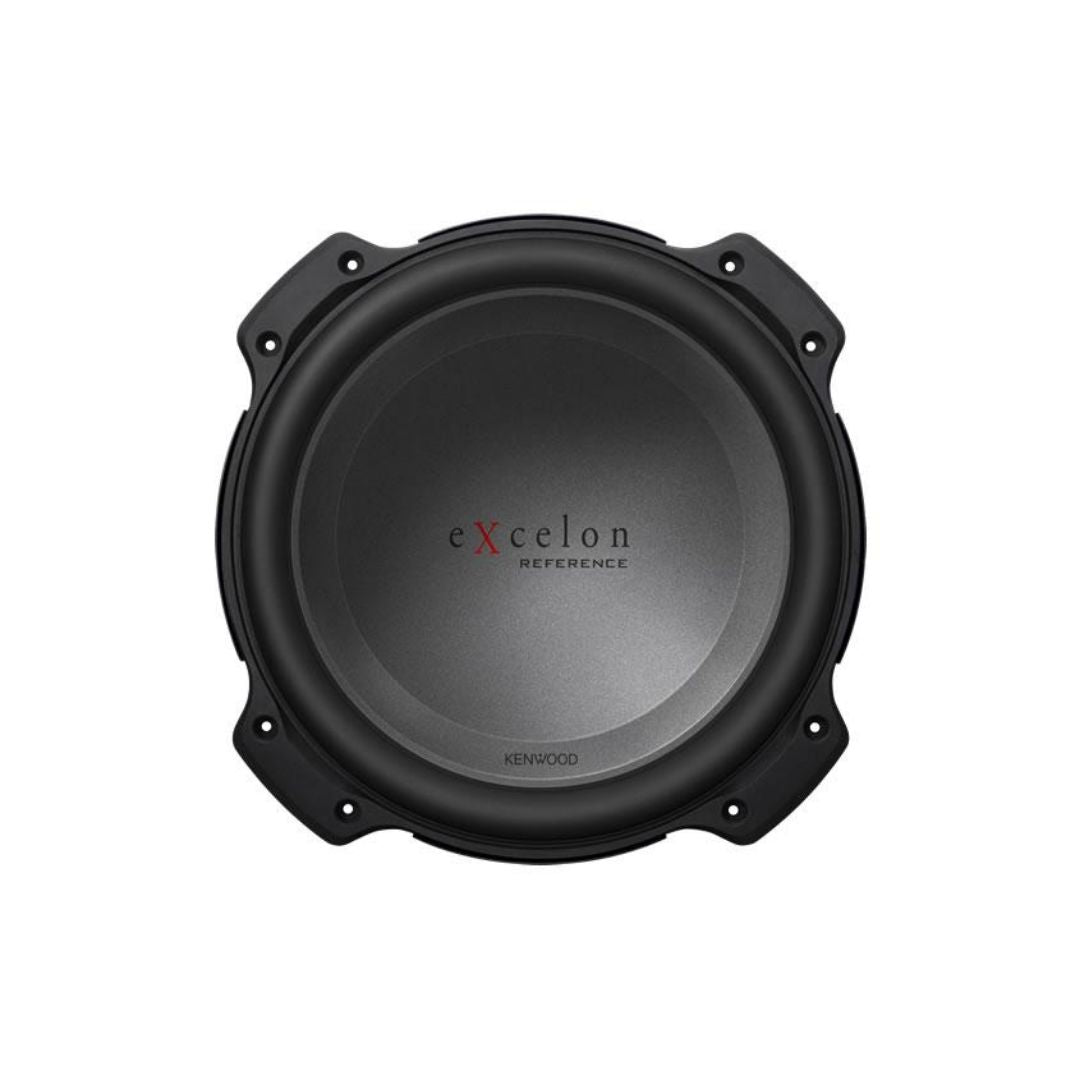

Kenwood XR-W1204, eXcelon Reference 12" Single 4-Ohm Car Subwoofer, 2000W
Cross Section Unit
Oversized Diaphragm
Low frequency output is increased because of a larger cone size. The cutout diameter has remained the same making this feature of the new XR woofers ideal for most vehicles where space is a premium. The XR woofers are ideal for a small sealed box.
Reinforcing Ribs (Cone)
The newly designed cone features ribbing that adds strength to the cone and minimizes distortion.
Strong Magnetic Circuit
Our engineers designed a strong magnetic circuit with the purpose of reproducing deep low frequencies. Their efforts employed a large magnet and optimized yoke.
Stress-free Spider
By adopting a "Stress-free Spider" and a "Thermal Efficient System" the mechanical and thermal durability has been improved dramatically delivering smooth and strong bass sound with long lasting reliability.
eXcelon Speakers
Speakers may be the most important piece of the sound quality puzzle. eXcelon speakers employ oversized drivers to enhance low-end range and large tweeters that improve mid- to high-range transitions, ideal for clear and dynamic vocals. Oversized woofers provide quick response and offer stable and powerful bass that remains true to the original recording.
Test and Measurement
Subwoofer development requires a diligent testing process including an anechoic chamber, power testing facility and the most advanced desktop applications for design and simulation. These high standards allow KENWOOD eXcelon speakers to deliver their expected performance and have long term reliability so your music can be enjoyed for many years.
|
|
Size |
12-inch |
|
Voice Coil |
Single |
|
Impedance |
4 ohm |
|
RMS Power Rating (Watts) |
400 |
|
Peak Power Rating (Watts) |
2000 |
| Cone Material |
Polypropylene |
| Surround Material |
Rubber |
| Free Air |
No |
| Sensitivity |
83dB at 1 Watt |
| Frequency Response |
32-300hz |
|
Top Mount Depth (Inches) |
5 5/8 |
| Bottom Mount Depth (Inches) |
|
| Cutout Diameter (Inches) |
10 15/16 |
| Vas (liters) |
125.4 |
| Fs (Hz) |
21.5 |
| Xmax (millimeters) |
10.8 |
| Warranty |
2 Year |
|
Size |
12-inch |
|
Voice Coil |
Single |
|
Impedance |
4 ohm |
|
RMS Power Rating (Watts) |
400 |
|
Peak Power Rating (Watts) |
2000 |
| Cone Material |
Polypropylene |
| Surround Material |
Rubber |
| Free Air |
No |
| Sensitivity |
83dB at 1 Watt |
| Frequency Response |
32-300hz |
|
Top Mount Depth (Inches) |
5 5/8 |
| Bottom Mount Depth (Inches) |
|
| Cutout Diameter (Inches) |
10 15/16 |
| Vas (liters) |
125.4 |
| Fs (Hz) |
21.5 |
| Xmax (millimeters) |
10.8 |
| Warranty |
2 Year |
