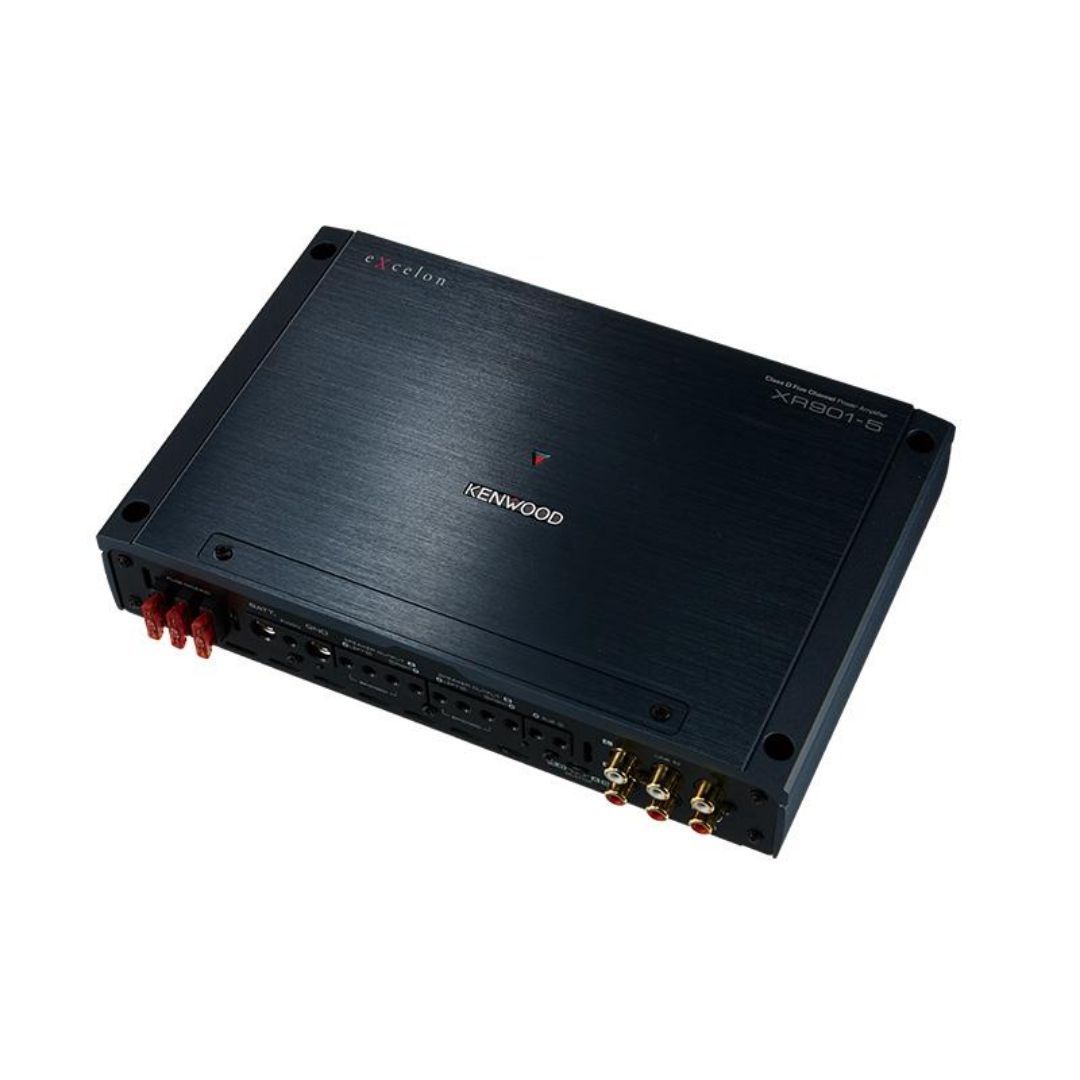

Kenwood XR901-5, eXcelon Reference Class D 5 Channel Car Amplifier
Rich and ImmersiveHigh-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
HIGH PERFORMANCE PARTS
Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.
DEEP BASS SOUND
By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.
ENHANCED SIGNAL TO NOISE RATIO
The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.
SPECIALIZED CIRCUIT DESIGN
The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.
WIRED REMOTE CONTROL
The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.
|
|
Number of Channels |
5 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
60 x 4 400 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
75 x 4 600 x 2 |
| RMS Power Rating (Watts x Channels) - 1 Ohm |
N/A |
| RMS Power Rating - Bridged | 150 x 2 |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
4 |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-200hz |
| Low Pass Crossover Frequency (Hz) |
50-200hz |
| Signal-to-Noise Ratio |
78dB |
| Bass Boost |
0-18dB |
| Bass Remote Included |
|
| Fuse Rating | 120A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 gauge |
| Warranty | 2 Year |
|
Number of Channels |
5 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
60 x 4 400 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
75 x 4 600 x 2 |
| RMS Power Rating (Watts x Channels) - 1 Ohm |
N/A |
| RMS Power Rating - Bridged | 150 x 2 |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
4 |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-200hz |
| Low Pass Crossover Frequency (Hz) |
50-200hz |
| Signal-to-Noise Ratio |
78dB |
| Bass Boost |
0-18dB |
| Bass Remote Included |
|
| Fuse Rating | 120A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 gauge |
| Warranty | 2 Year |
