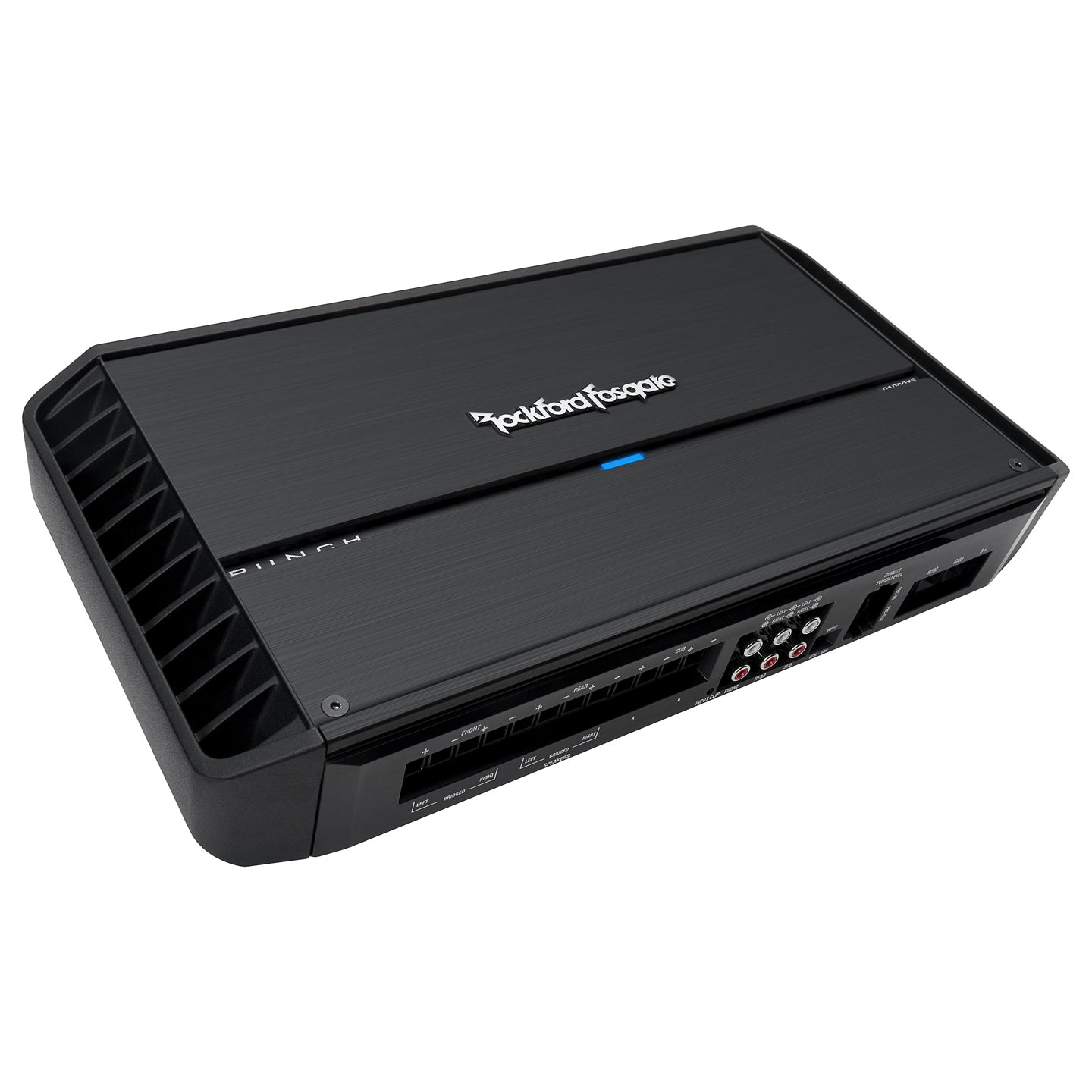

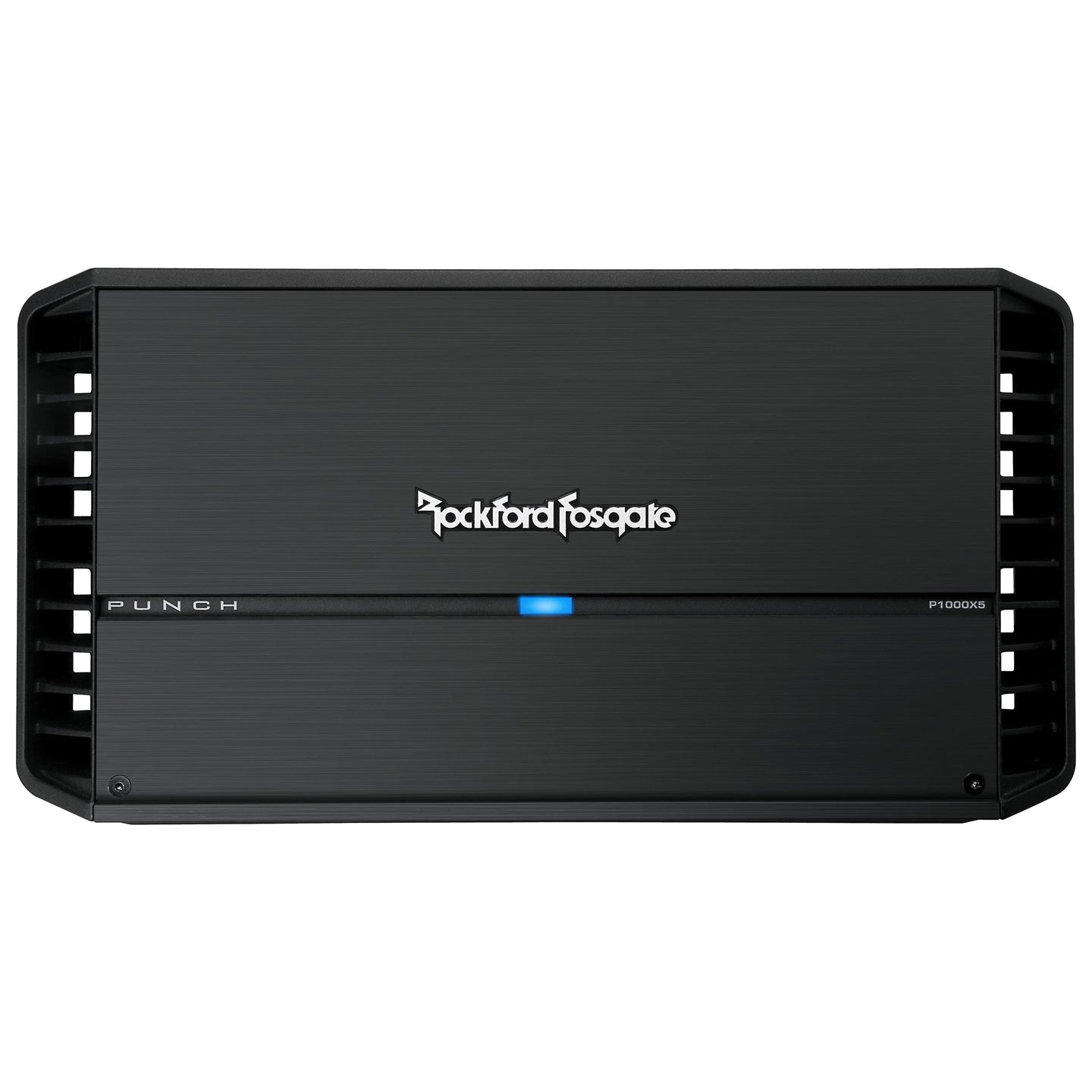

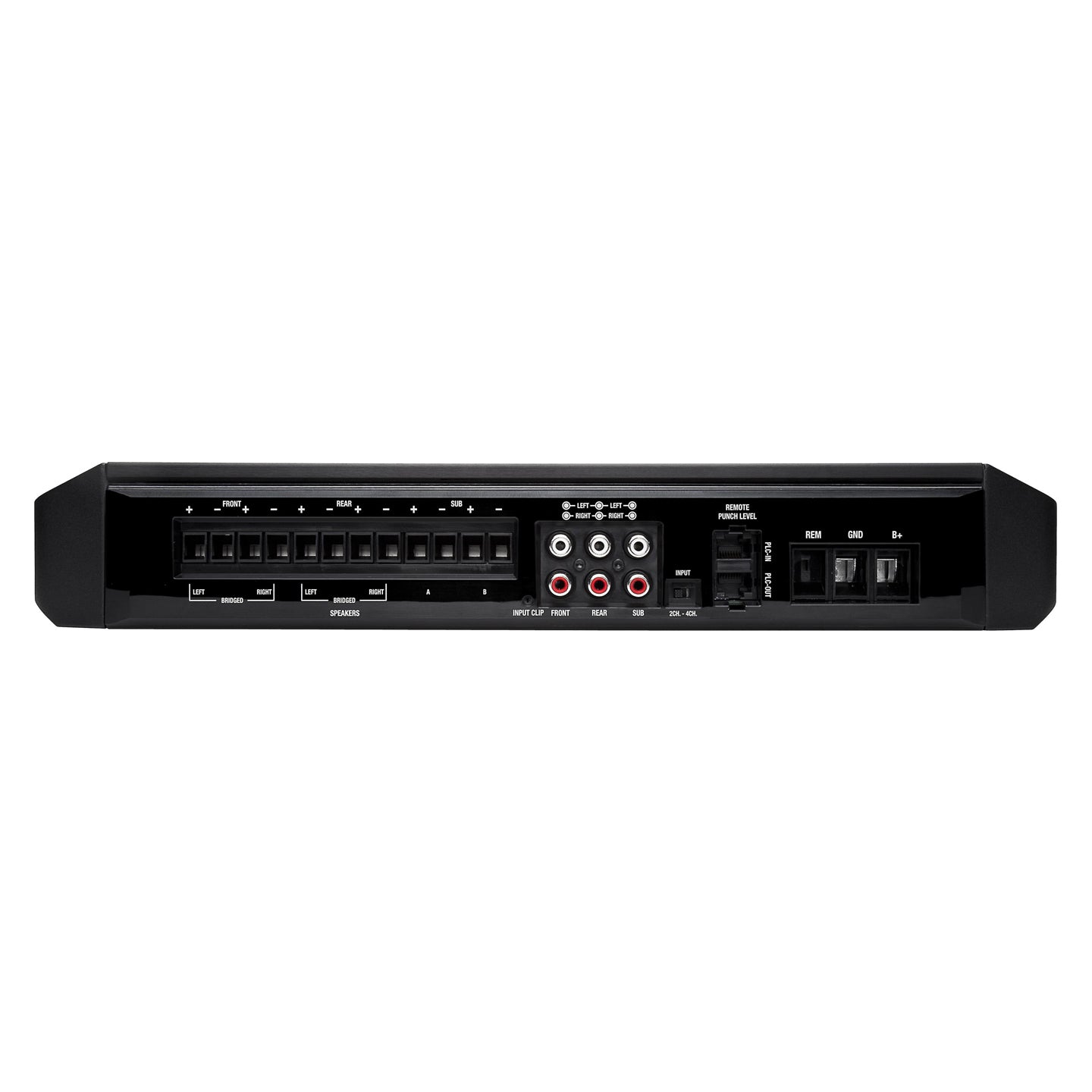

Rockford Fosgate P1000X5, Punch Series 5 Channel Car Amplifier
The Punch P1000X5 is an ultra-efficient 5-channel amplifier capable of running your entire system without excessive drain on your charging system. The P1000X5 is perfect for running a front/rear system and a dedicated subwoofer.
Class BD
Class BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional class A/B amplifiers.
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
DSM
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Balanced Differential Inputs
Differential inputs eliminate noise picked up by signal cables.
TRANS•ana
Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
The P1000X5 1,000 Watt full-range 5-channel is the one-and-only amplifier you will need to run your entire system. Run dash speakers off the front channels, run back speakers off the rear channels and run subwoofer(s) off the 5th channel! Known world-wide for brute power, this amplifier offers a higher level of efficiency along with a tri-stage protection that covers thermal, over-current and short circuits.
DTM
Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
MEHSA
MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
NOMAD
NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
Engineered In The USA
These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
C.L.E.A.N. Set-Up
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
|
Number of Channels |
5 |
|
Class |
AB/D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
75 x 4 150 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
125 x 4 300 x 1 |
| RMS Power Rating (Watts x Channels) - 1 Ohms |
500 x 1 |
| RMS Power Rating - Bridged | 250 x 2 |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
4 |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-250hz |
| Low Pass Crossover Frequency (Hz) |
50-250hz |
| Signal-to-Noise Ratio |
85dB |
| Bass Boost |
0-18dB |
| Bass Remote Included |
No |
| Fuse Rating | 150A |
| CEA-2006 Compliant | |
| Maximum Power Wire Gauge Size | 4 gauge |
| Warranty | 1 Year |
|
Number of Channels |
5 |
|
Class |
AB/D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
75 x 4 150 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
125 x 4 300 x 1 |
| RMS Power Rating (Watts x Channels) - 1 Ohms |
500 x 1 |
| RMS Power Rating - Bridged | 250 x 2 |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
4 |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-250hz |
| Low Pass Crossover Frequency (Hz) |
50-250hz |
| Signal-to-Noise Ratio |
85dB |
| Bass Boost |
0-18dB |
| Bass Remote Included |
No |
| Fuse Rating | 150A |
| CEA-2006 Compliant | |
| Maximum Power Wire Gauge Size | 4 gauge |
| Warranty | 1 Year |
