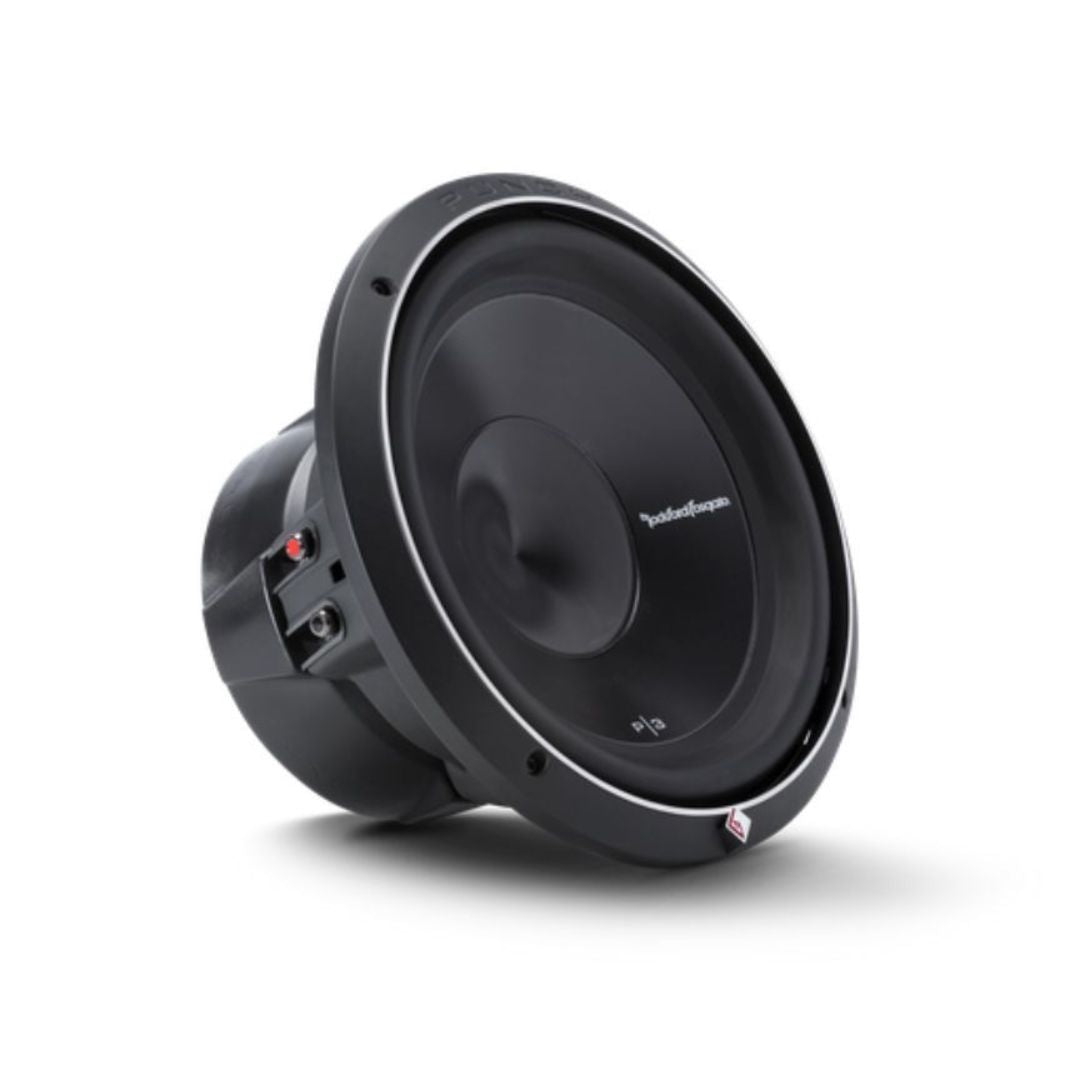

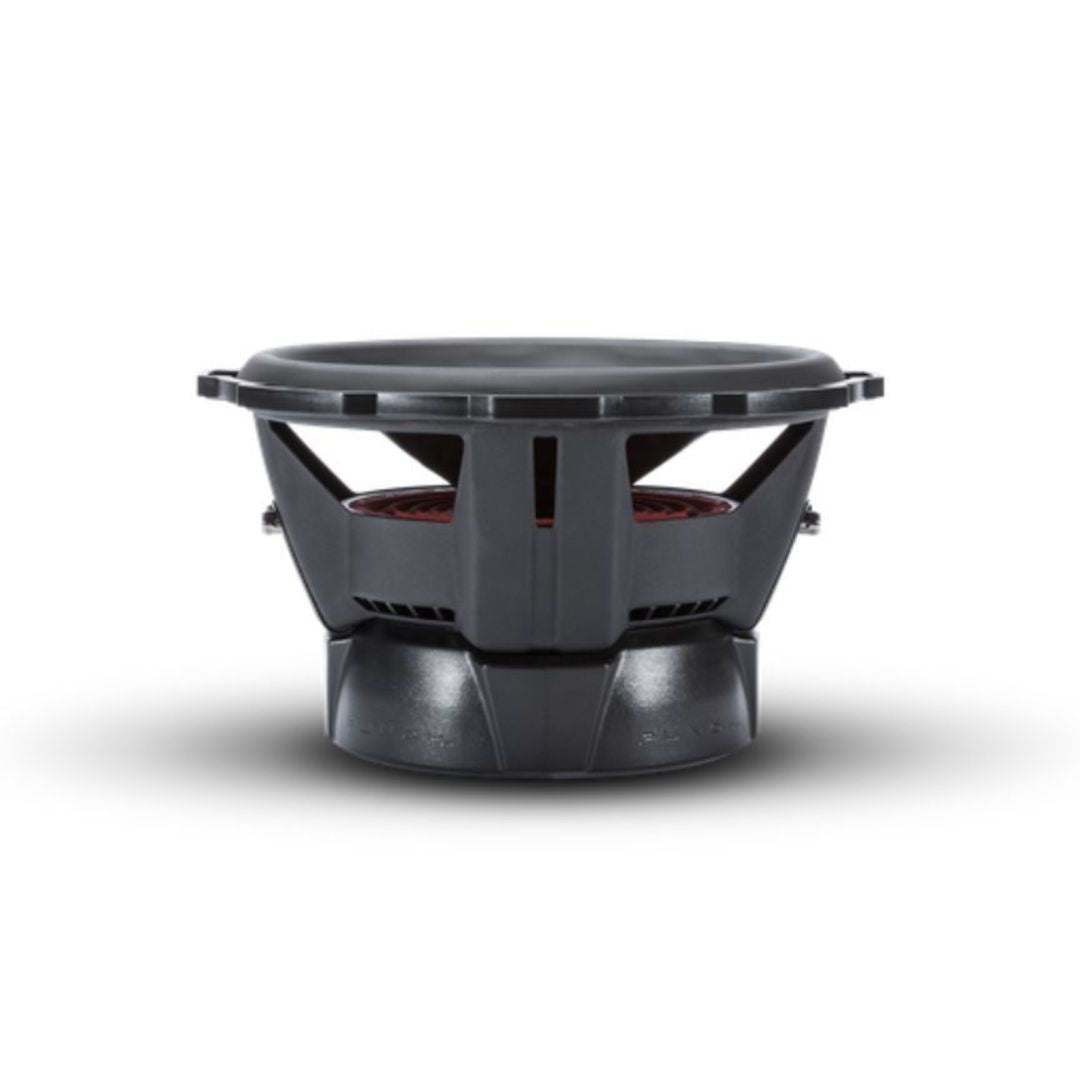

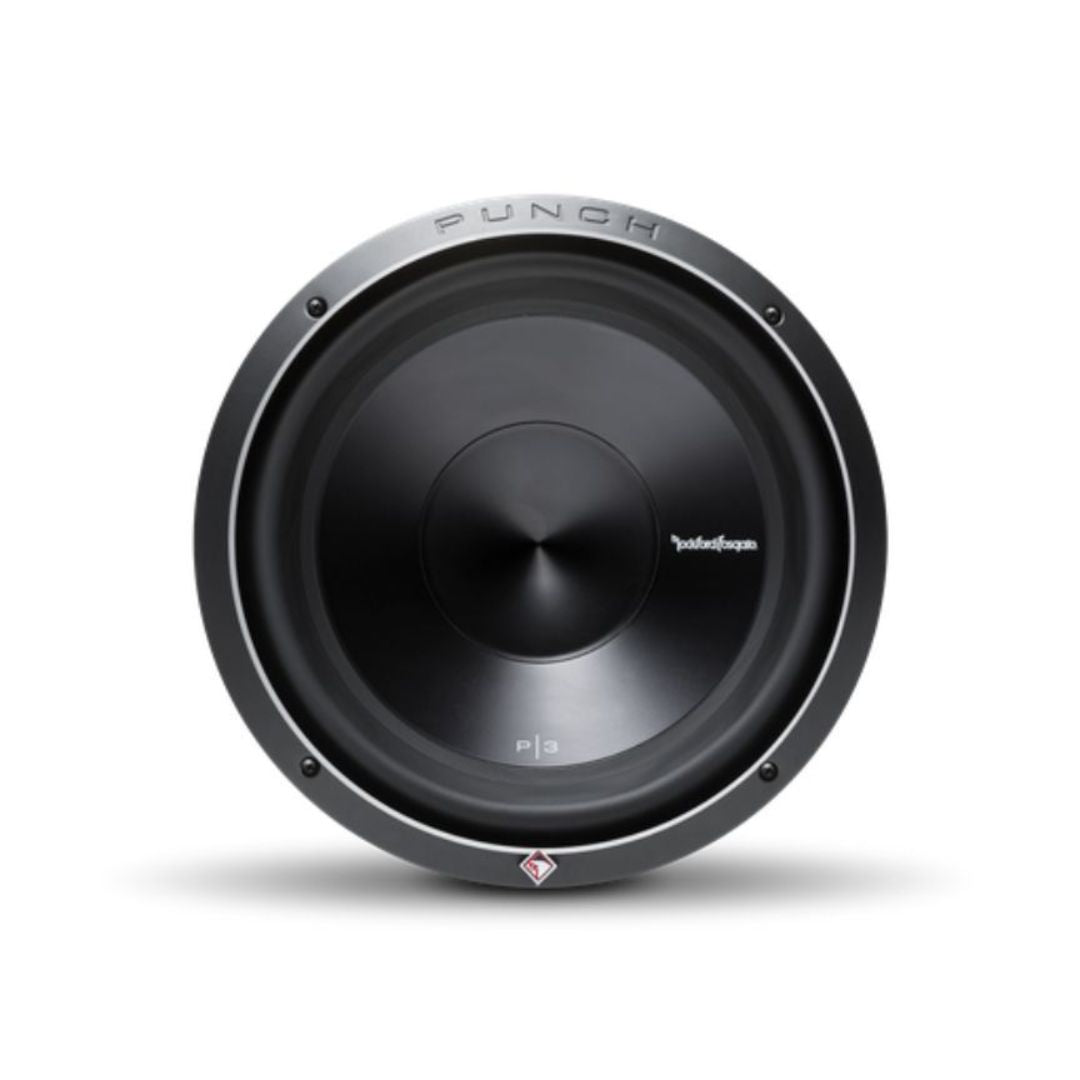

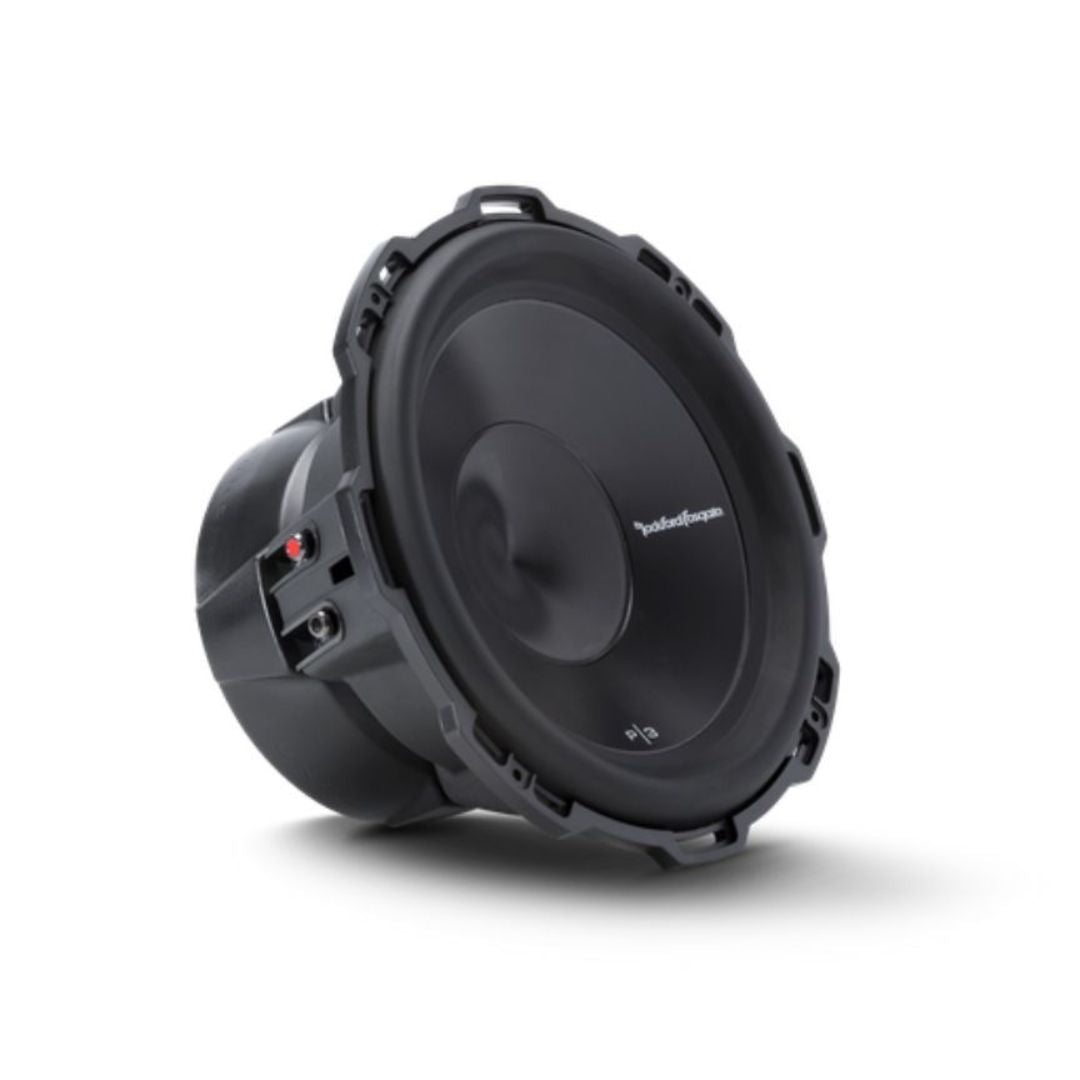

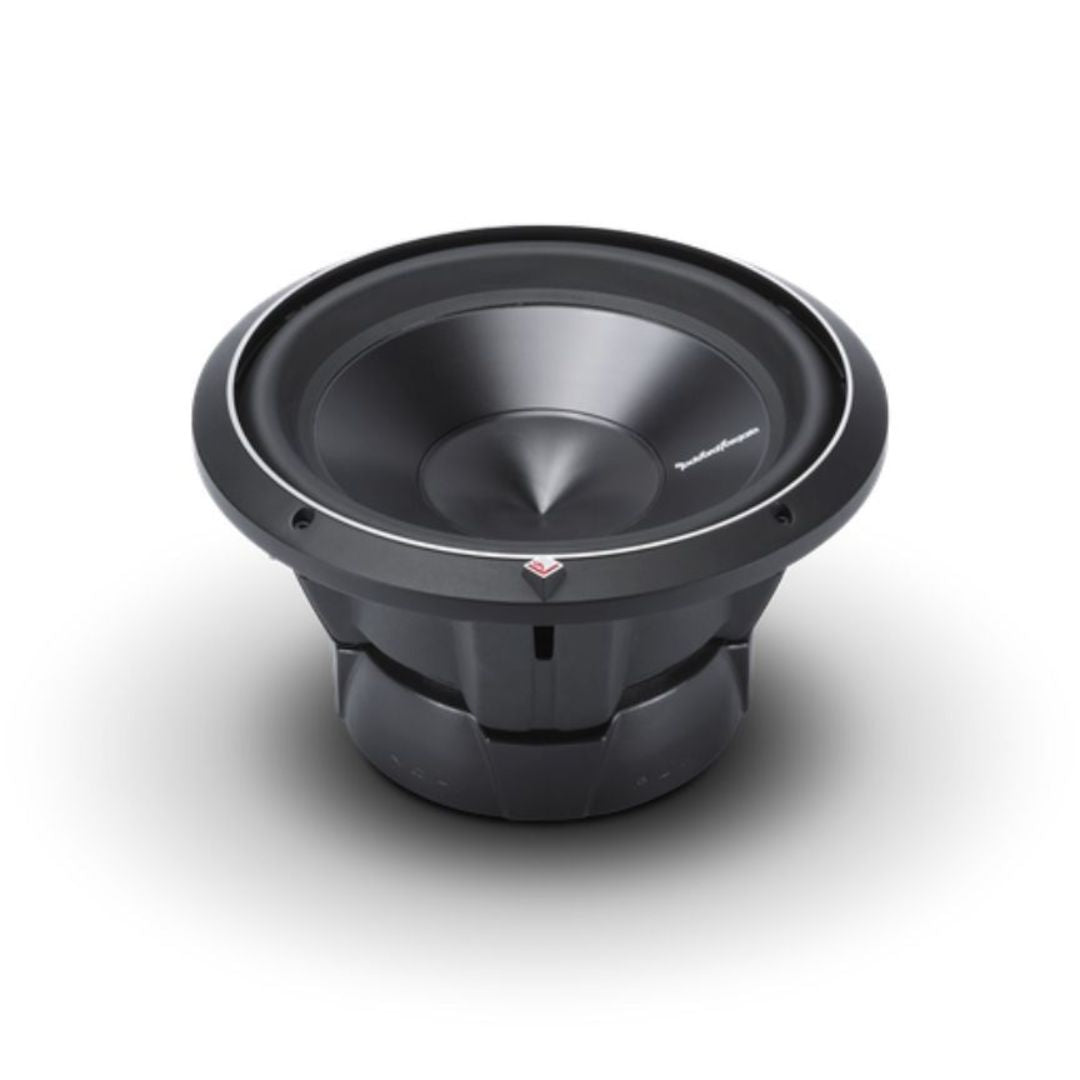

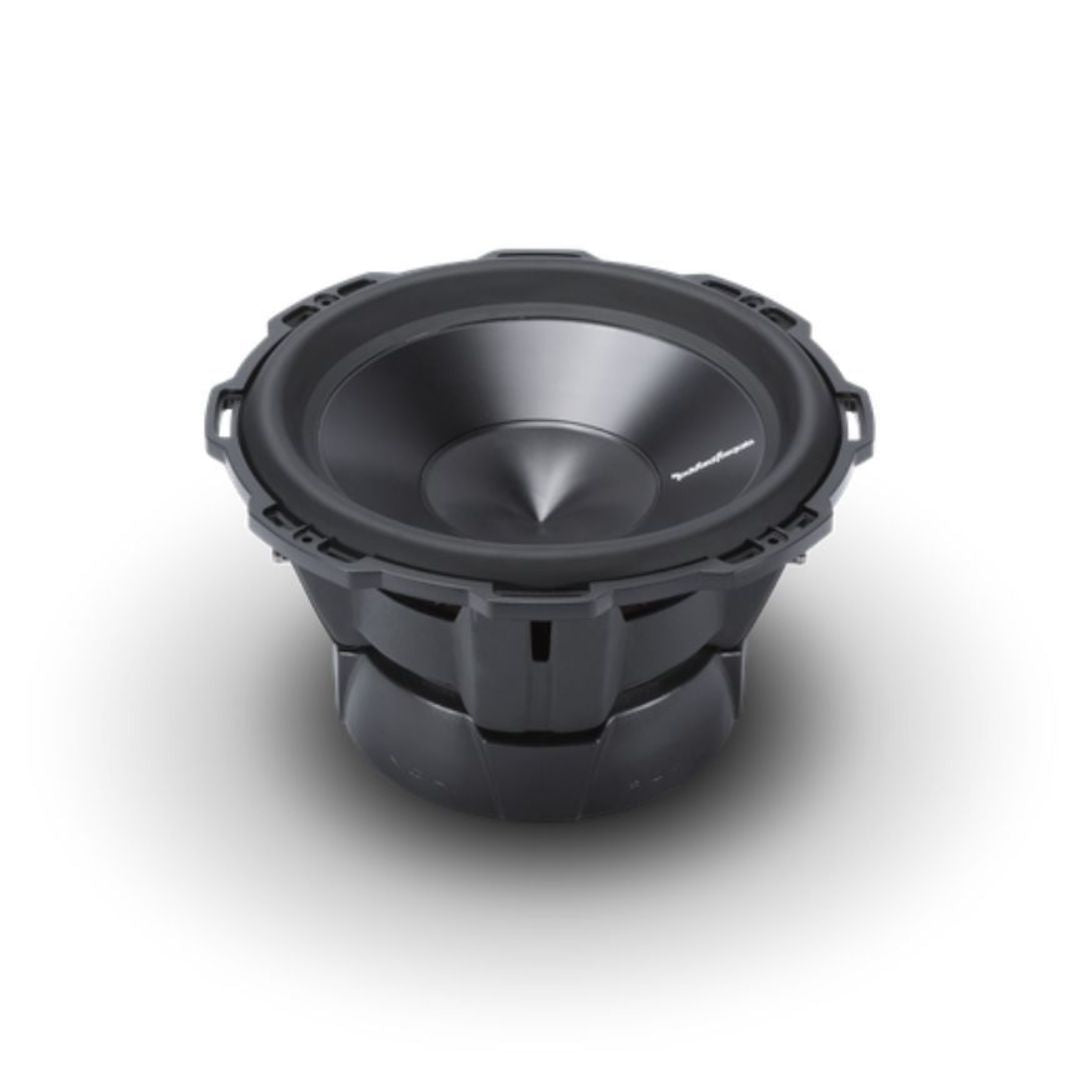

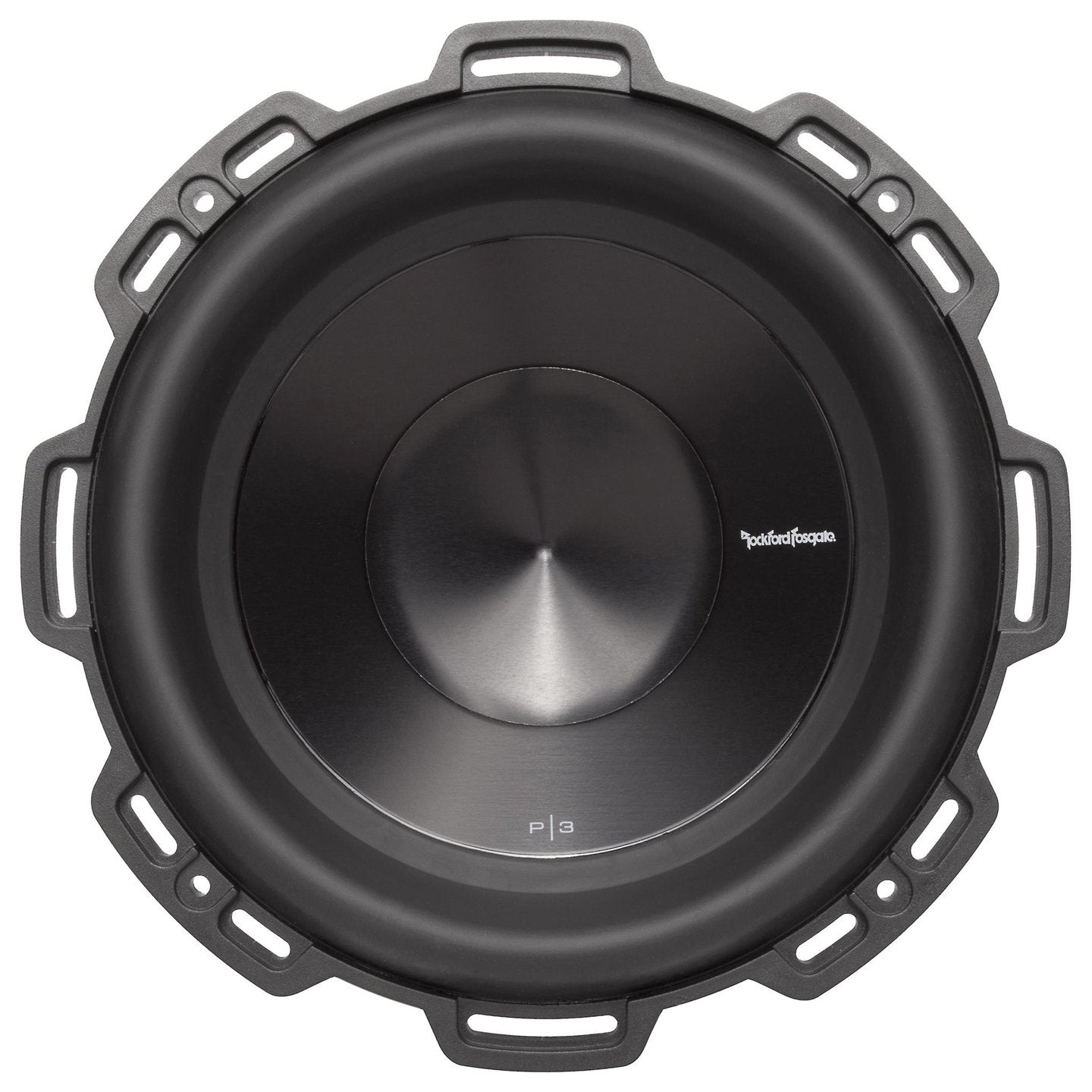

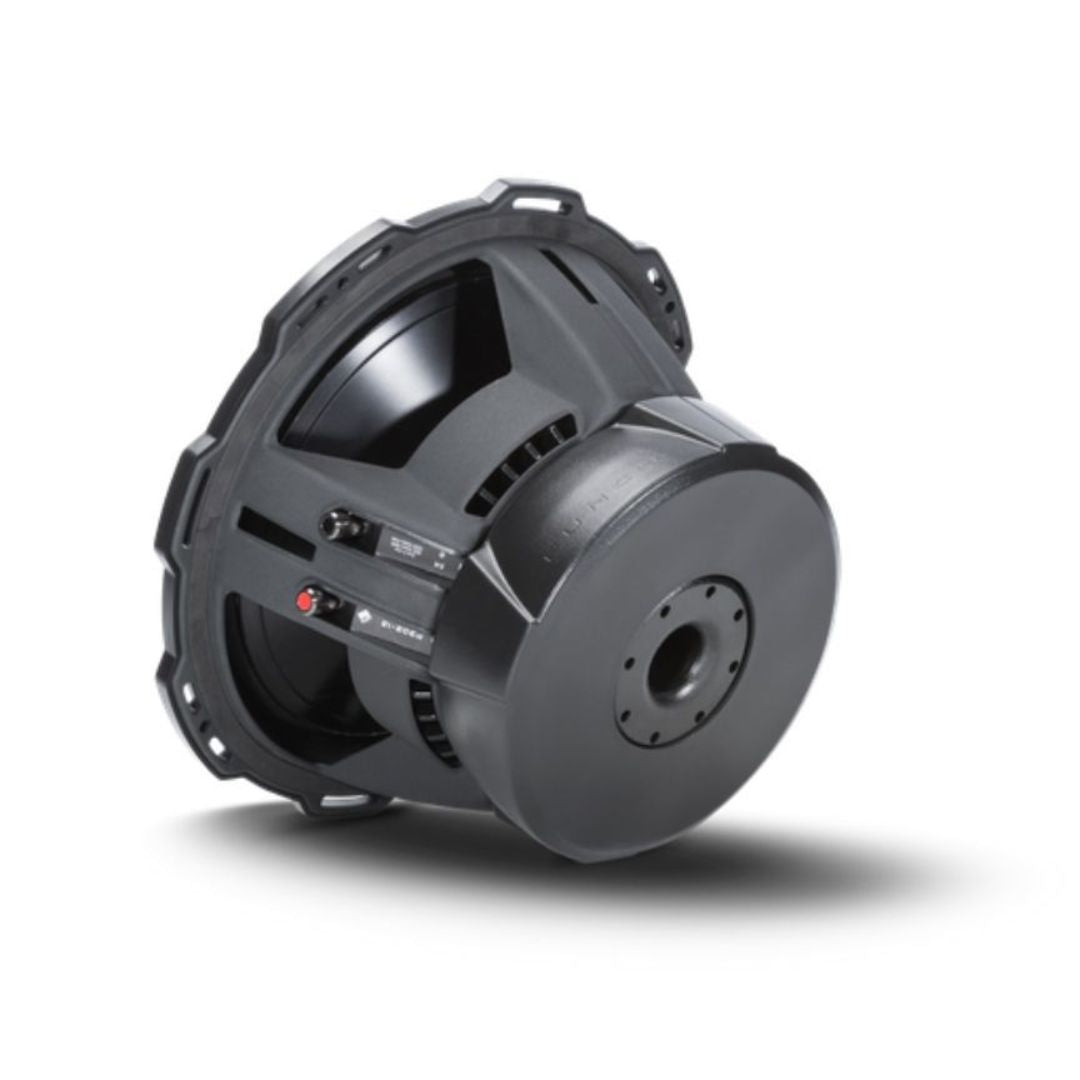

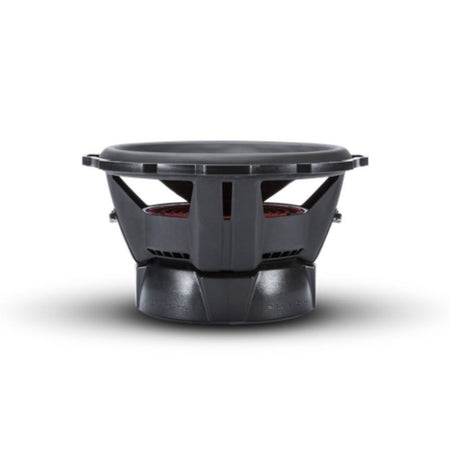

Rockford Fosgate P3D4-12, Punch 12" 4 Ohm Dual Voice Coil Subwoofer - 1200W
The P3D4-12 is the best performing Rockford Fosgate Punch series subwoofer. Built to max out your car audio system, the P3 12" features Dual 2-Ohm voice coils (DVC), 600 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring. The P3D2-12 12 inch car subwoofer also includes:
Anodized Aluminum Voice Coil Former
Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.
FlexFit Basket - Subwoofer
The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.
Stitched Tinsel Leads
Improved reliability and performance by reducing fatigue and possible shorting.
The P3D4-12 is Rockford Fosgate's best performing Punch series subwoofer for cars and trucks. The P3 12 inch subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme car and truck installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.
VAST Surround - Subs
The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible speakers.
|
Size |
12-inch |
|
Voice Coil |
DVC |
|
Impedance |
Dual 4 ohms |
|
RMS Power Rating (Watts) |
600 |
|
Peak Power Rating (Watts) |
1200 |
| Cone Material |
Anodized Aluminum |
| Surround Material |
Santoprene |
| Free Air |
No |
| Sensitivity |
85 dB at 1 Watt |
| Frequency Response |
28-250 Hz |
|
Top Mount Depth (Inches) |
6 11/16 |
| Bottom Mount Depth (Inches) |
- |
| Cutout Diameter (Inches) |
11 1/16 |
| Vas (liters) |
57.7 |
| Fs (Hz) |
27.7 |
| Xmax (millimeters) |
13.9 |
| Warranty |
1 Year |
|
Size |
12-inch |
|
Voice Coil |
DVC |
|
Impedance |
Dual 4 ohms |
|
RMS Power Rating (Watts) |
600 |
|
Peak Power Rating (Watts) |
1200 |
| Cone Material |
Anodized Aluminum |
| Surround Material |
Santoprene |
| Free Air |
No |
| Sensitivity |
85 dB at 1 Watt |
| Frequency Response |
28-250 Hz |
|
Top Mount Depth (Inches) |
6 11/16 |
| Bottom Mount Depth (Inches) |
- |
| Cutout Diameter (Inches) |
11 1/16 |
| Vas (liters) |
57.7 |
| Fs (Hz) |
27.7 |
| Xmax (millimeters) |
13.9 |
| Warranty |
1 Year |
