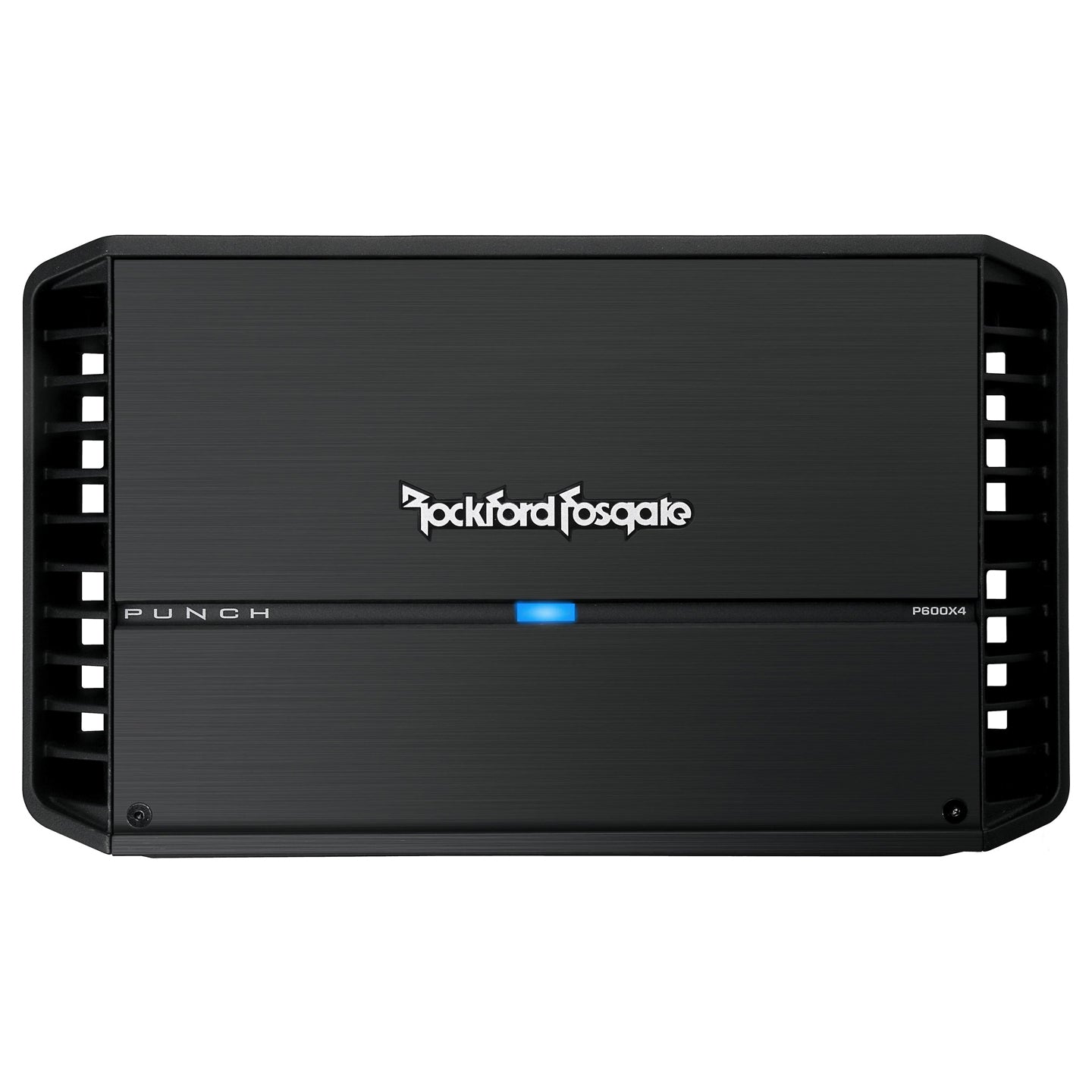

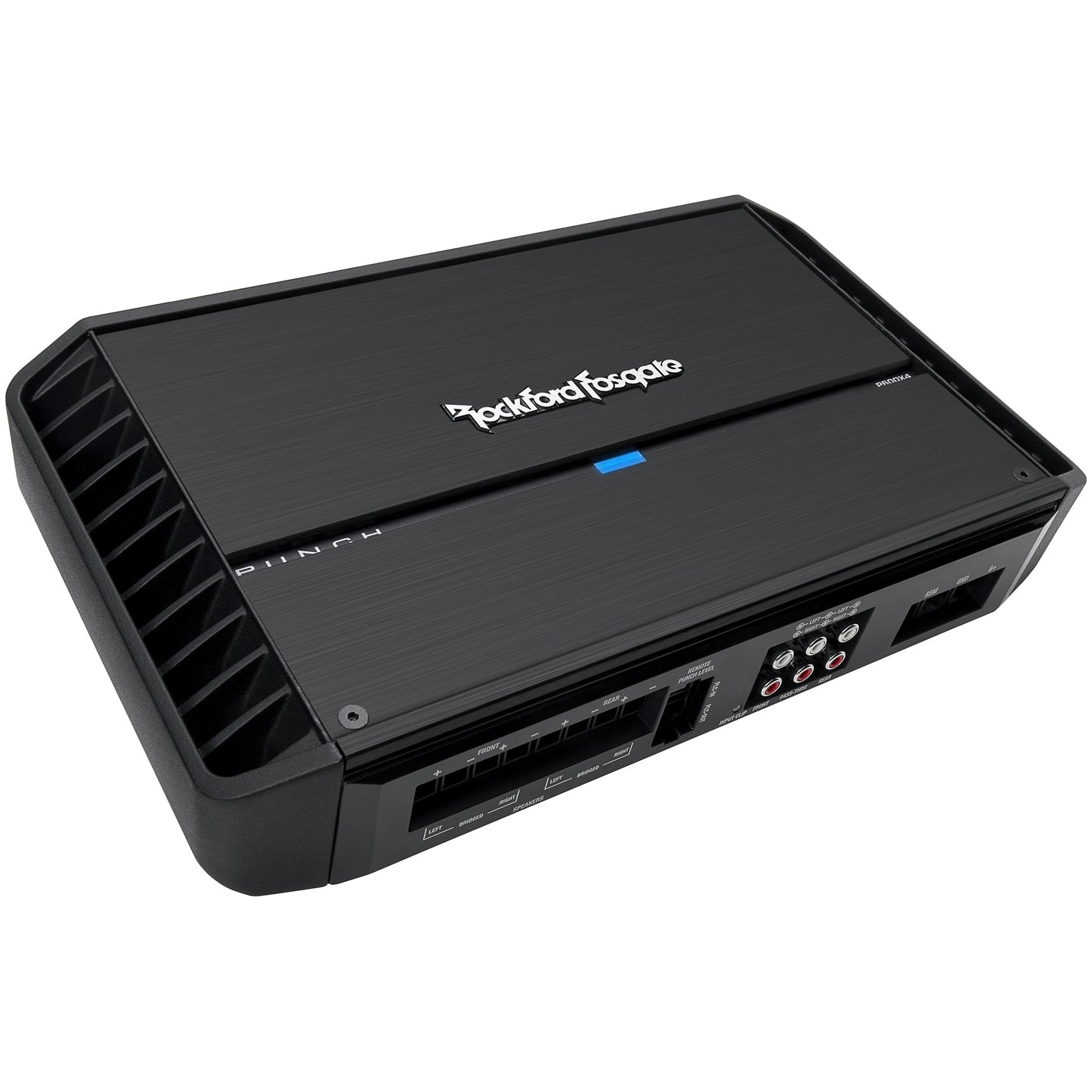

Rockford Fosgate P600X4, Punch Series 4 Channel Car Amplifier
The Punch P600X4 is a 4-channel amplifier producing 150 Watts into all four channels at 2-Ohm. The P600X4 is perfect for a 4-way full-range system or a 3-way system having a front stage with subwoofers on the rear channels.
TRANS•ana
Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
DSM
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Balanced Differential Inputs
Differential inputs eliminate noise picked up by signal cables.

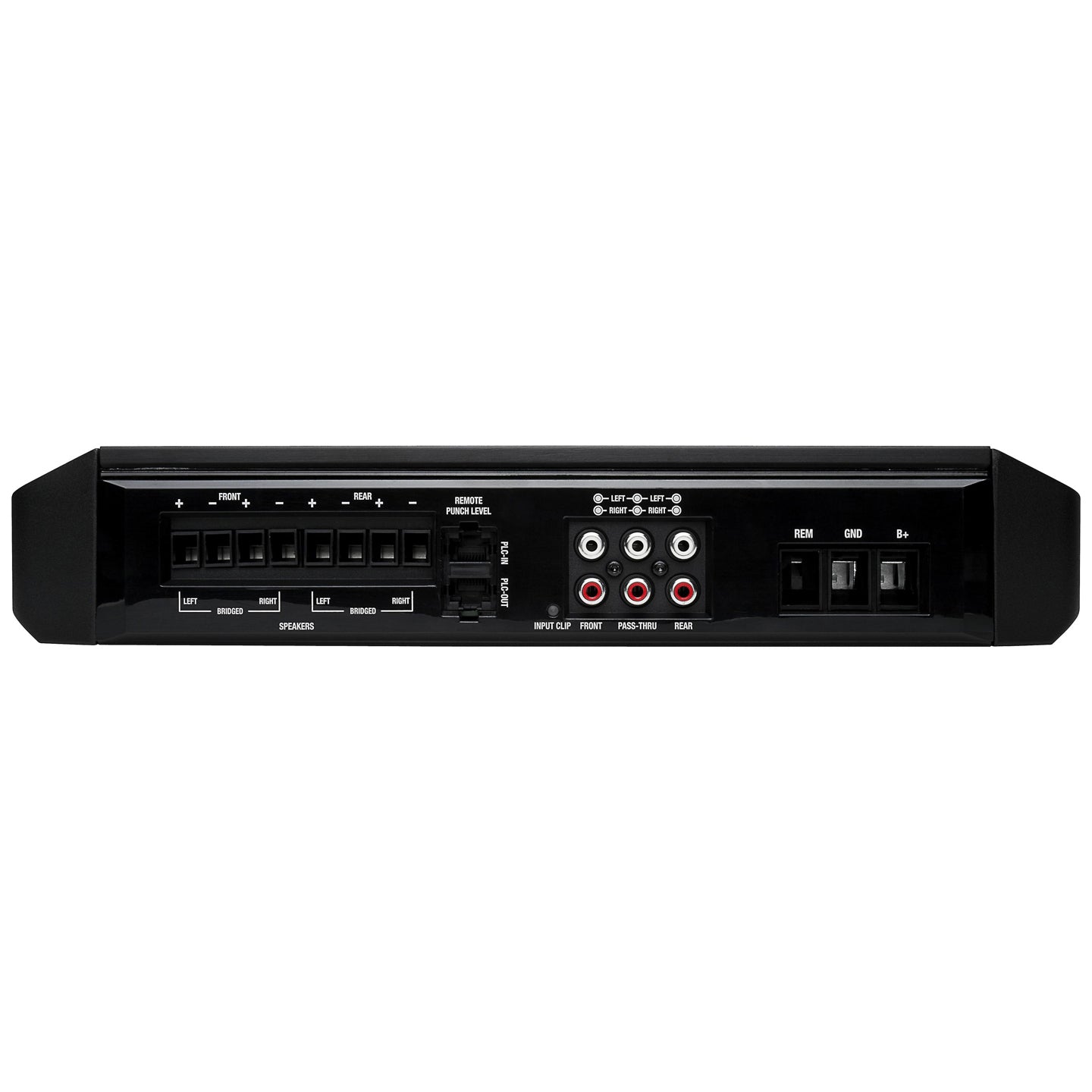

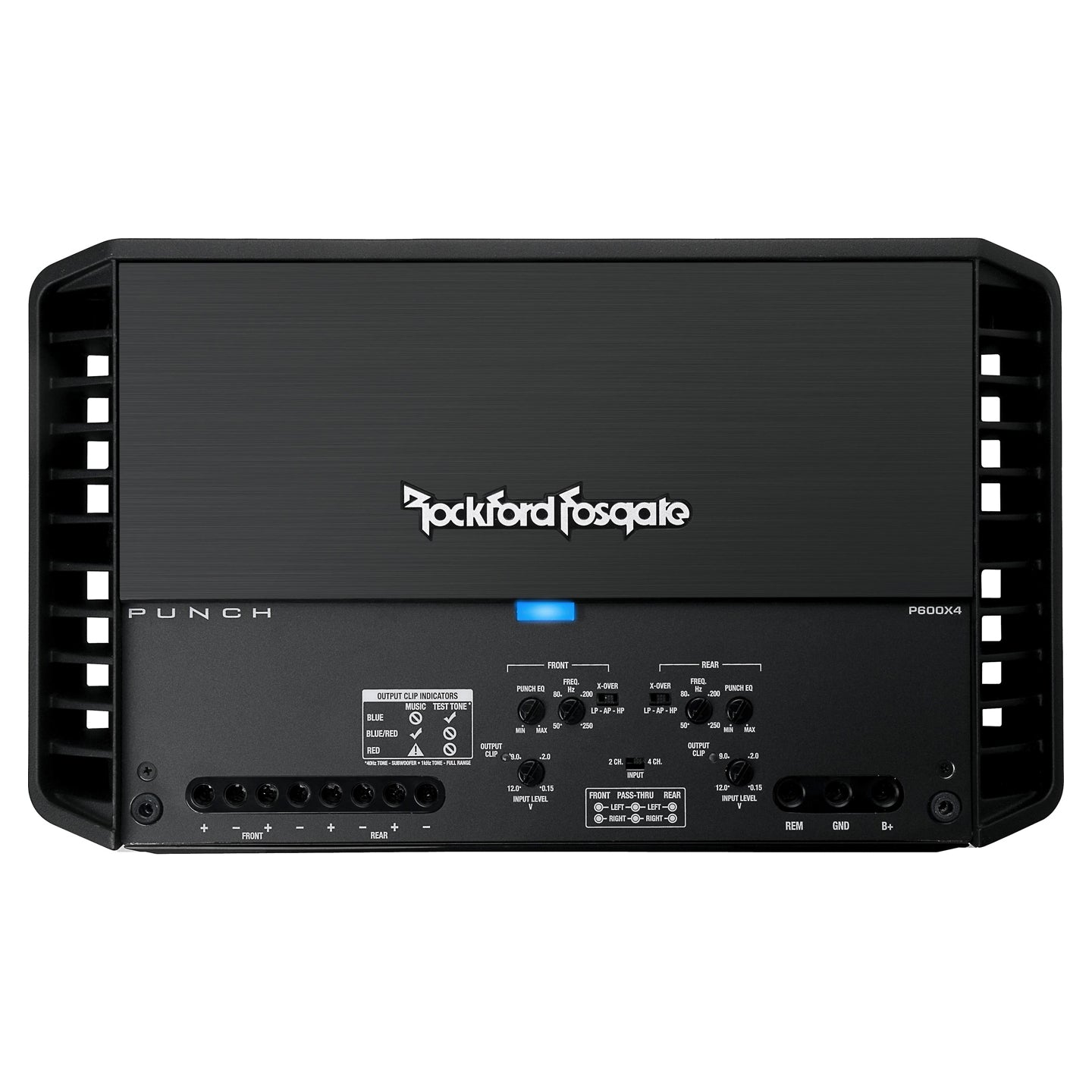

The Punch P600X4 multi-channel amplifier is versatile to power any audio system configuration. In addition to 4-channel stereo mode, you can bridge both channels to create a high power 2-channel amp, or run stereo speakers on the front with subwoofers on the rear in 3-channel mode. The variable HP/LP crossover and built-in Punch EQ allows for precise tuning of Bass frequencies and the Pass-Thru RCA jacks provide flexibility as your system grows and keeping Y-adapters to a minimum.
MEHSA
MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
NOMAD
NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
Engineered In The USA
These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
C.L.E.A.N. Set-Up
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
|
Number of Channels |
4 |
|
Class |
AB |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
75 x 4 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
150 x 4 |
| RMS Power Rating (Watts x Channels) - 1 Ohms |
N/A |
| RMS Power Rating - Bridged | 300 x 2 |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
4 |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-250hz |
| Low Pass Crossover Frequency (Hz) |
50-250hz |
| Signal-to-Noise Ratio |
85dB |
| Bass Boost |
0-18dB |
| Bass Remote Included |
No |
| Fuse Rating | 100A |
| CEA-2006 Compliant | |
| Maximum Power Wire Gauge Size | 4 gauge |
| Warranty | 1 Year |
|
Number of Channels |
4 |
|
Class |
AB |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
75 x 4 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
150 x 4 |
| RMS Power Rating (Watts x Channels) - 1 Ohms |
N/A |
| RMS Power Rating - Bridged | 300 x 2 |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
4 |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-250hz |
| Low Pass Crossover Frequency (Hz) |
50-250hz |
| Signal-to-Noise Ratio |
85dB |
| Bass Boost |
0-18dB |
| Bass Remote Included |
No |
| Fuse Rating | 100A |
| CEA-2006 Compliant | |
| Maximum Power Wire Gauge Size | 4 gauge |
| Warranty | 1 Year |
