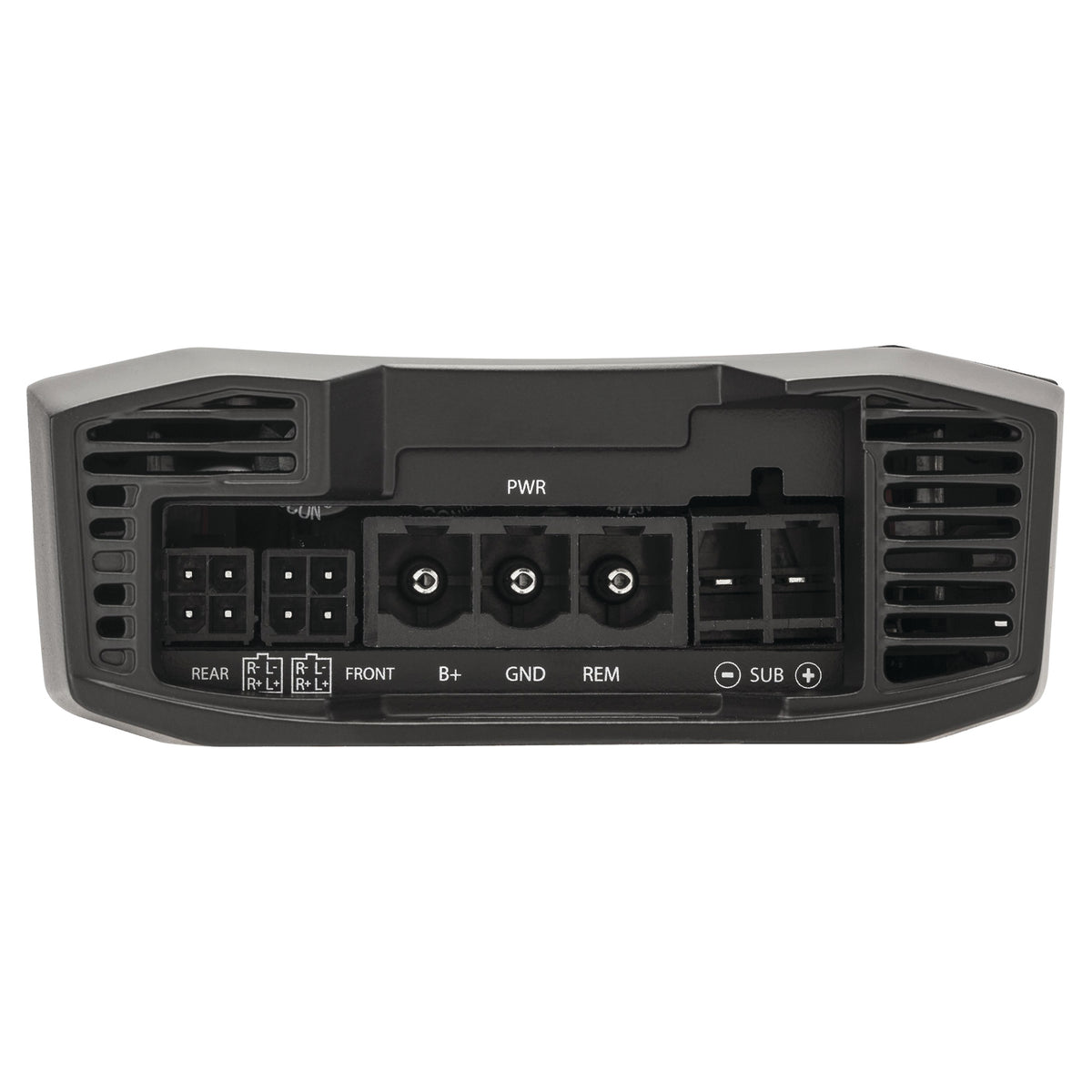

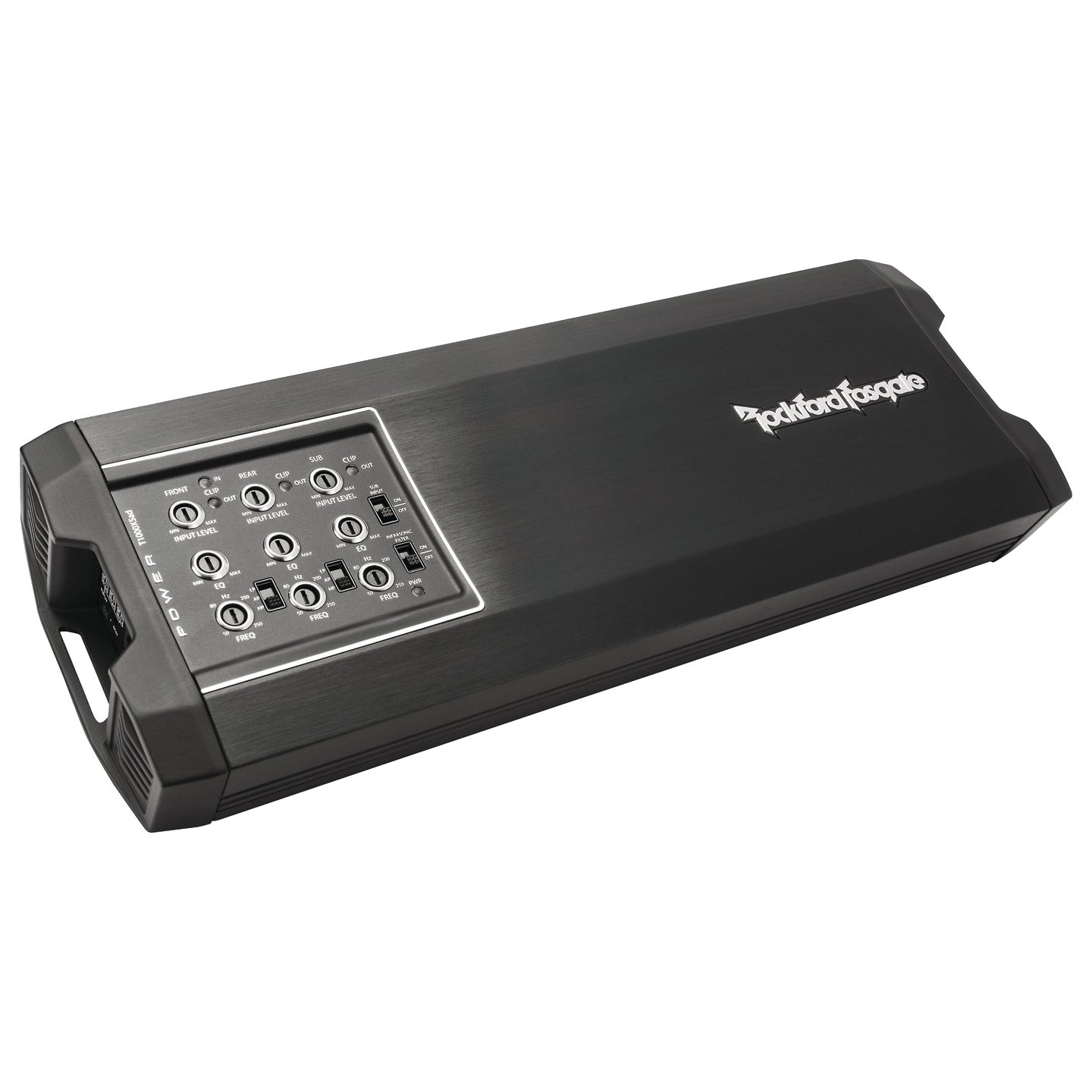

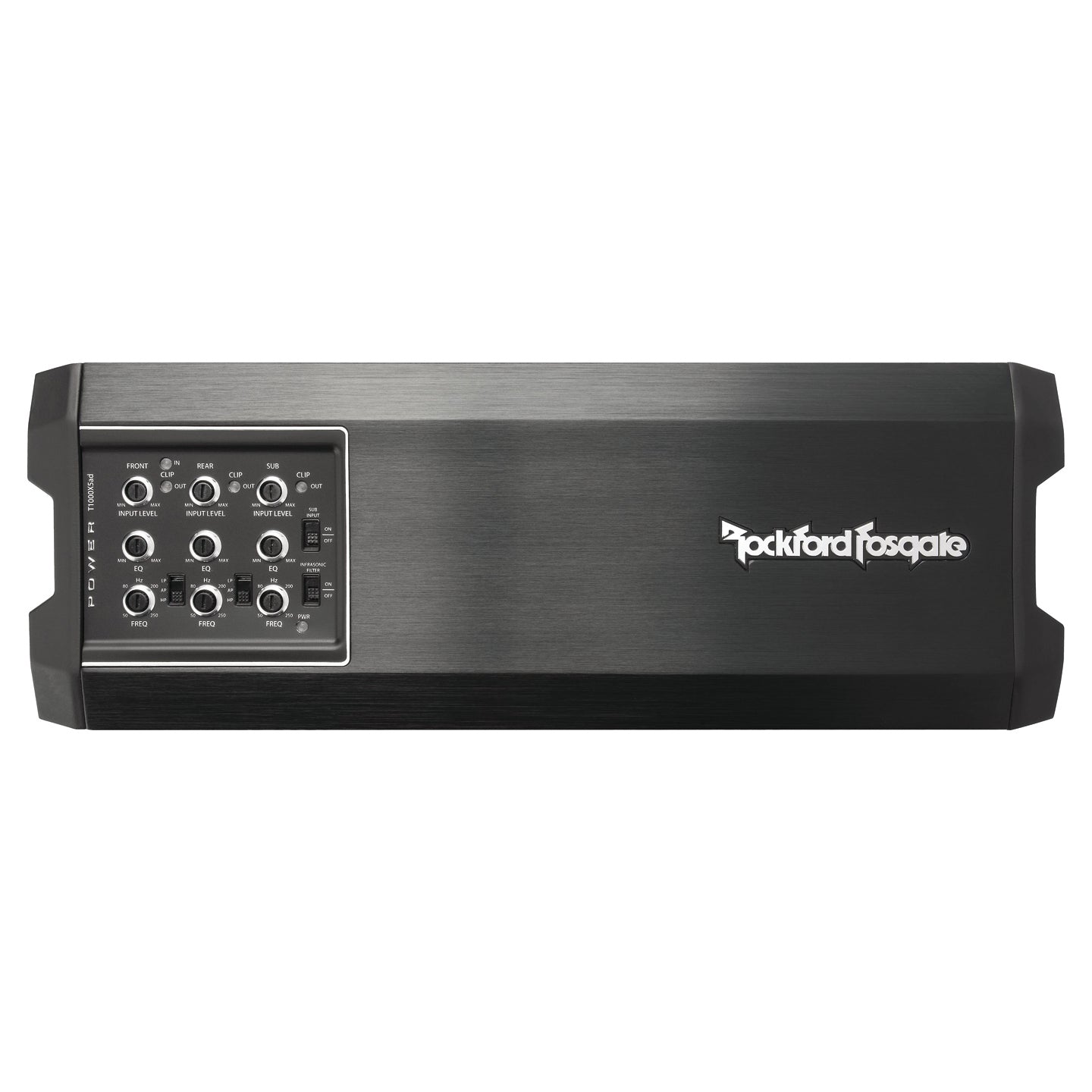

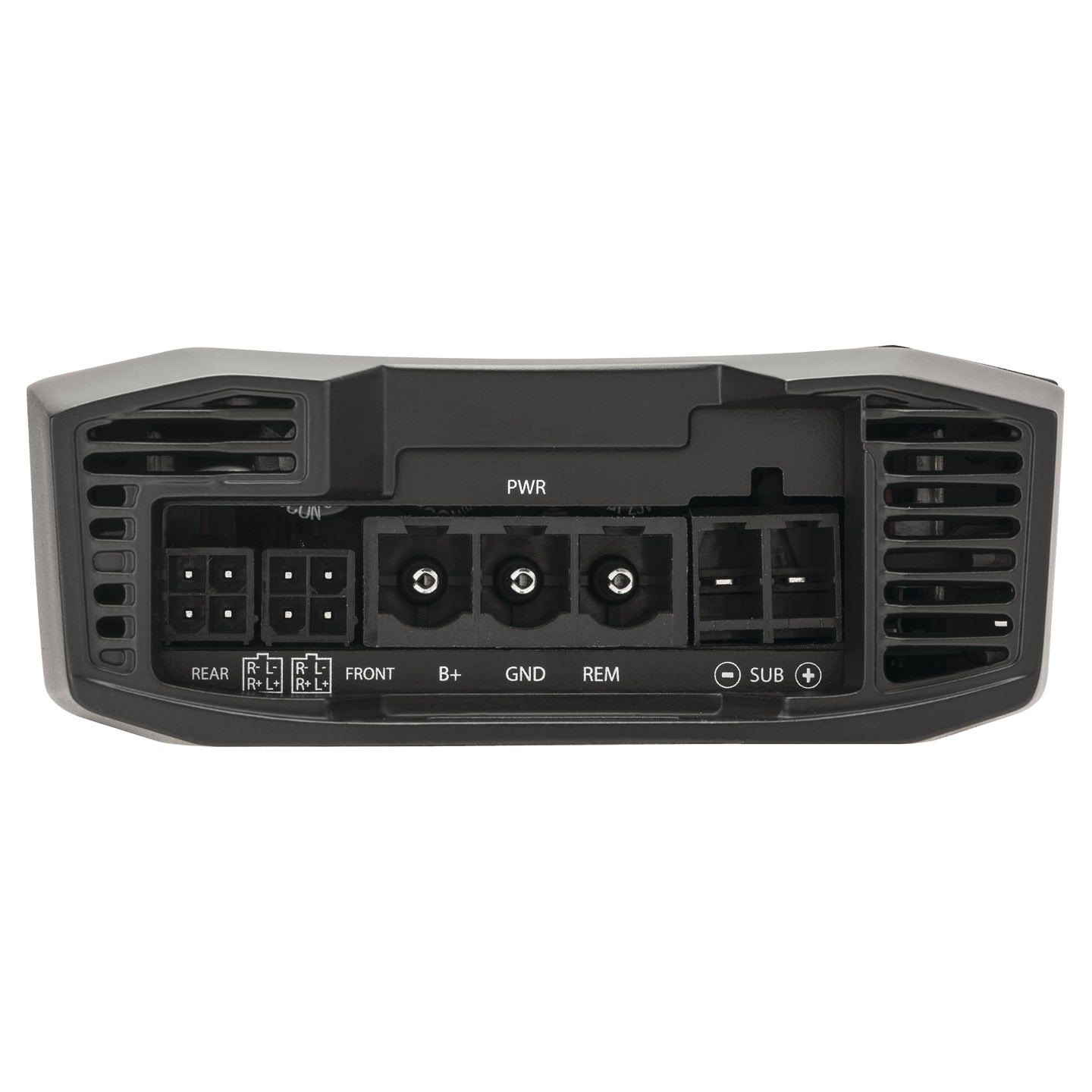

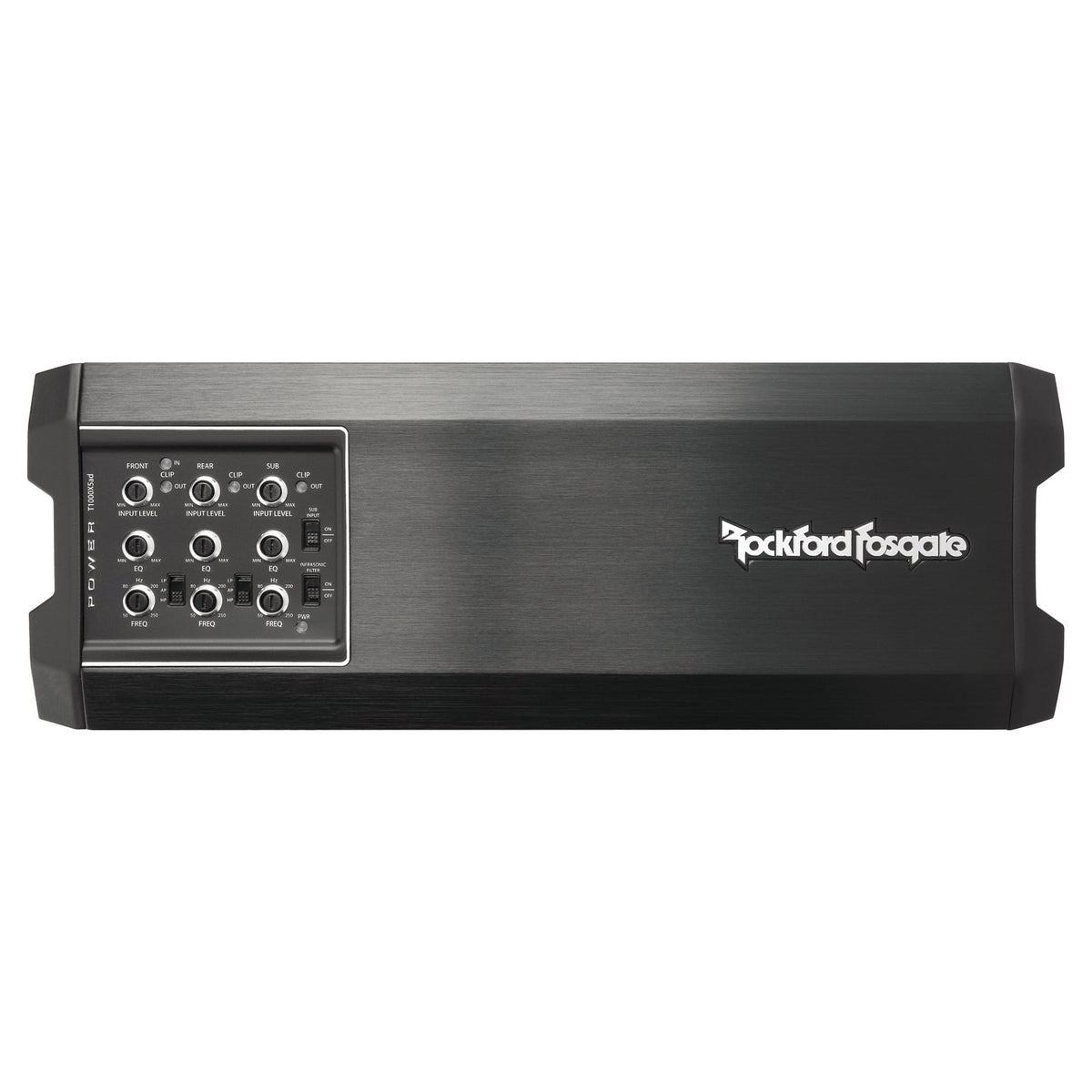

Rockford Fosgate T1000X5AD, Power Series 5 Channel Car Amplifier
The Power T1000x5ad is an compact, Class ad 1000 Watt multi-channel amplifier. It features differential inputs with high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities making it perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.
Constant Power
Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.
Class AD
Class BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional class A/B amplifiers.
DSM
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
The T1000X5ad Element Ready multi-channel amplifier is a 1000 watt RMS unit built on our proprietary Class ad platform designed to deliver unprecidented sound quality with superior power efficiency. Combined with our Constant Power technology, this amplifier can easily exceed its rated power by up to 25% additional output per channel.

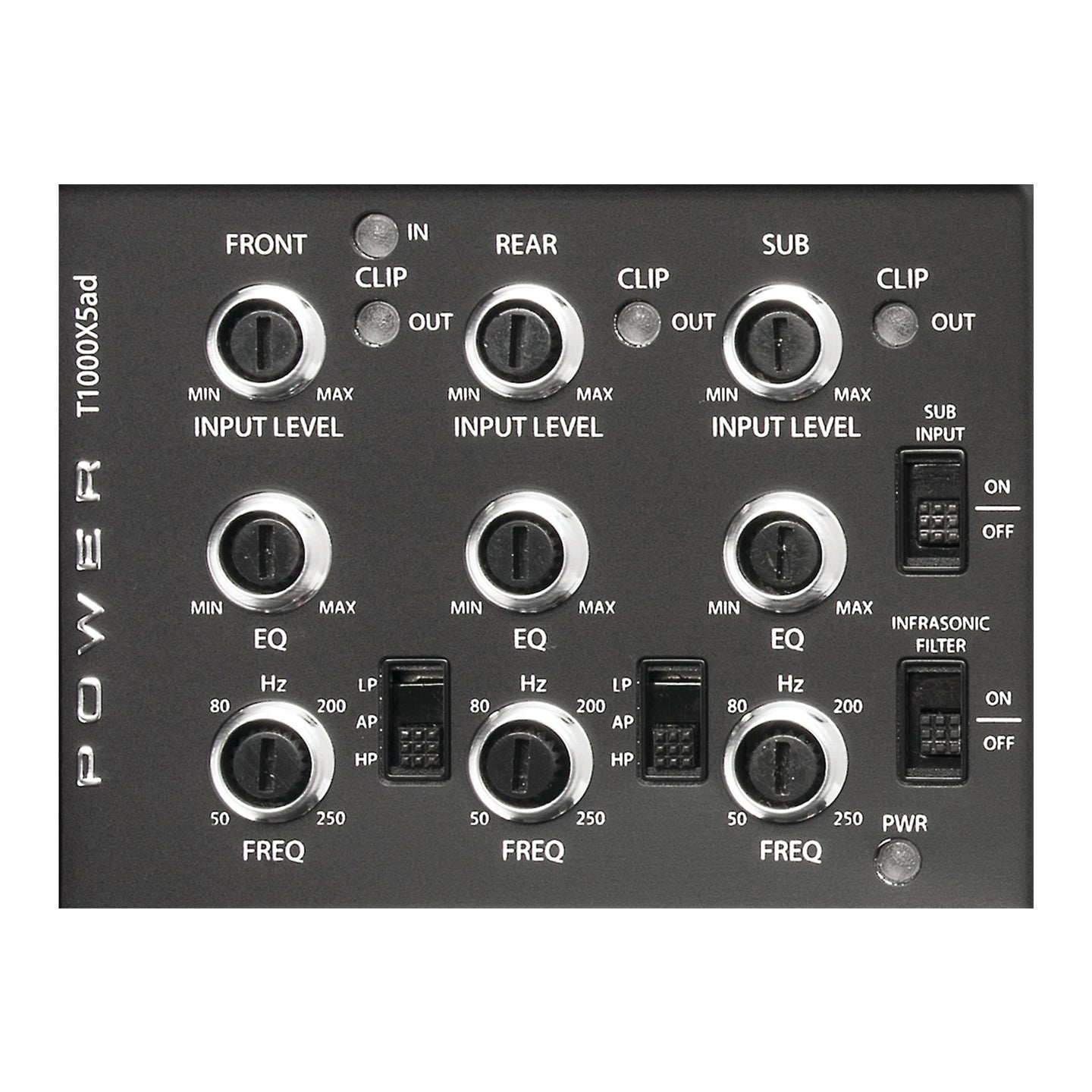

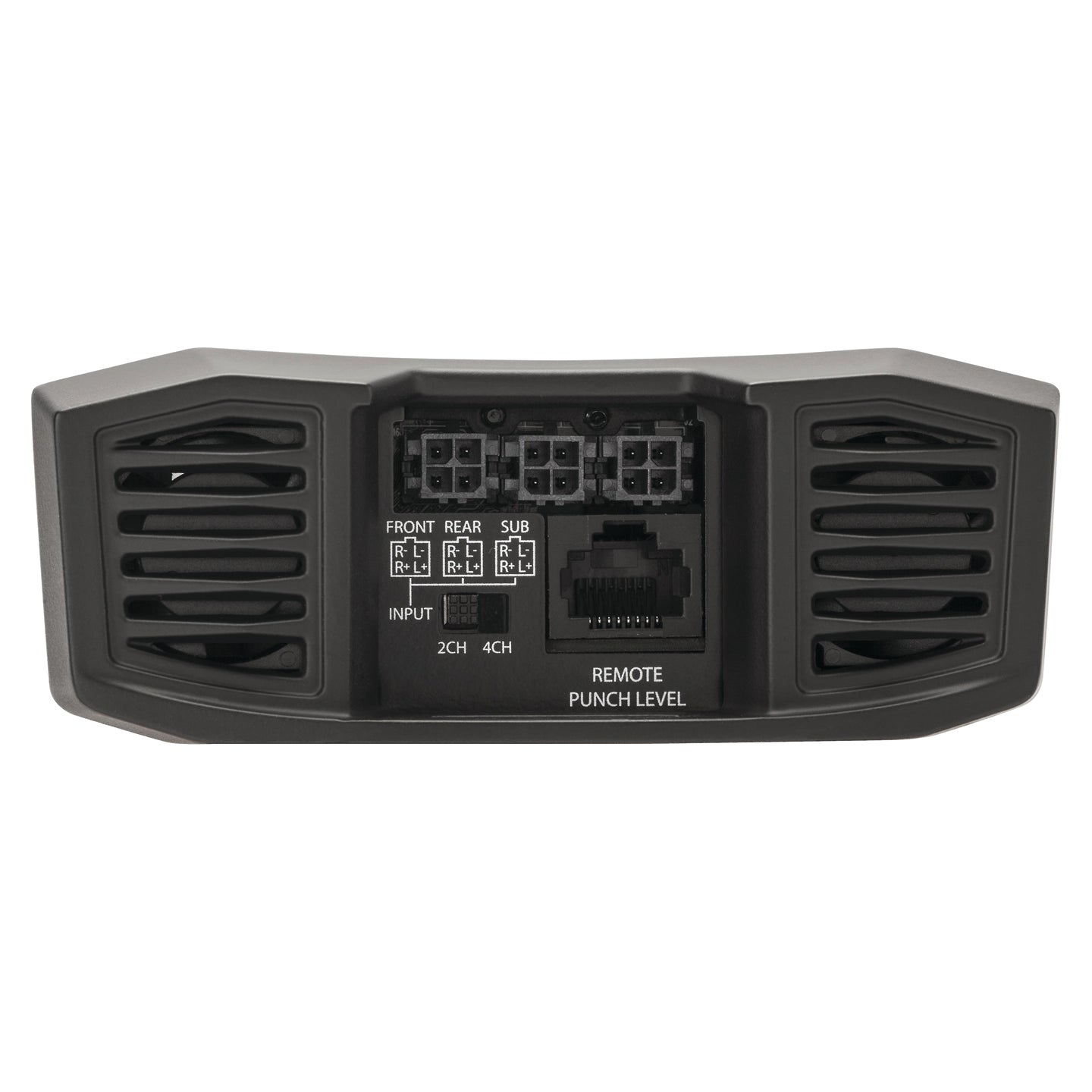

Amplifier top mounted controls include our C.L.E.A.N. level setting system, integrated high/ low pass crossovers, Input channel configuration switches and our Punch EQ boost circuit. Upgraded input RCA connectors allow for high or low level input signals to be used through our differential input circuit which eliminates incoming noise and can provide a remote out signal when using high level inputs.
Dual fan cooling, real time thermal monitoring and dual extruded heat sinks maintain heat dissipation even at high outputs keeping the amp cool. The Amplifier is also compatible with our PLC2 level remote control allowing remote output level control of the sub channel.
C.L.E.A.N. Set-Up
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
Engineered In The USA
These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
3-Stage Airflow
3-stage airflow method effectively exhausts heat and ensures your amplifier runs cooler for optimum performance.
|
Number of Channels |
5 |
|
Class |
AD |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
100 x 4 400 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
100 x 4 600 x 1 |
| RMS Power Rating (Watts x Channels) - 1 Ohms |
600 x 1 |
| RMS Power Rating - Bridged | 200 x 2 |
| Minimum Impedance Unbridged (Ohms) |
1 Sub Channel 2 Front and rear Channels |
| Minimum Impedance Bridged (Ohms) |
4 Front and Rear Channels |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-250hz |
| Low Pass Crossover Frequency (Hz) |
50-250hz |
| Signal-to-Noise Ratio |
80dB |
| Bass Boost |
0-18dB |
| Bass Remote Included |
No |
| Fuse Rating | 150A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 gauge |
| Warranty | 1 Year |
|
Number of Channels |
5 |
|
Class |
AD |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
100 x 4 400 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
100 x 4 600 x 1 |
| RMS Power Rating (Watts x Channels) - 1 Ohms |
600 x 1 |
| RMS Power Rating - Bridged | 200 x 2 |
| Minimum Impedance Unbridged (Ohms) |
1 Sub Channel 2 Front and rear Channels |
| Minimum Impedance Bridged (Ohms) |
4 Front and Rear Channels |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-250hz |
| Low Pass Crossover Frequency (Hz) |
50-250hz |
| Signal-to-Noise Ratio |
80dB |
| Bass Boost |
0-18dB |
| Bass Remote Included |
No |
| Fuse Rating | 150A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 gauge |
| Warranty | 1 Year |
